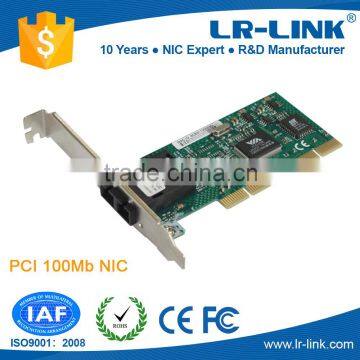

100M PCI SC Fiber Ethernet NIC Card

LREC7020PF-SC PCI 100Mbps ethernet Fiber NIC SC Port Multi mode-2KM

PCI Network Card

100M PCI SC Fiber Ethernet NIC Card

Descriptions:

LREC7020PF-SC PCI Bus Optical Ethernet adapter is designed to operate at 100Mbps and to provide a network throughput of 200Mbps in full-duplex mode. It offers a range of options, such as fiber / connector type and operating wavelength / reach, to meet the requirement of various applications.

1.100M PCI ethernet  Fiber NIC

2.SC connector fiber NIC
3.1x9 module ethernet NIC Card
4.Fiber nic for desktop

Features:

Plug and Play installation

Complies with the IEEE 802.3u 100Base-FX / IEEE 802.3ah 100Base-LX10 / -BX10 Ethernet standard.

Standard optical fiber connector and cable type options

Full duplex or half-duplex operation

PCI Bus Master direct memory access for high throughput and low CPU utilization

IEEE 802.3x Flow Control enabled with full duplex operation, allowing enhanced operation when directly connected to a switch.

IEEE 802.1Q/VLAN Tagging supported

VLAN registration using IEEE802.1Q GVRP standard

IEEE 802.1p Tagging supported

IP Multicast packet filtering reduces CPU utilization and conserves network bandwidth.

Large 2Kb Tx, 2Kb Rx FIFO buffers synchronize transmissions and buffer data to help prevent packet loss.

Two LED indicators: Link/RxAct, Power/TxAct

Drivers for all leading Network Operating Systems

PCI Ethernet SC Port Wired Network Card Software Drivers

Microsoft Windows 95, 98, 98 SE

Microsoft Windows 2000

Microsoft Windows XP

Microsoft NT 3.51 / 4.0

Microsoft Windows for Workgroups 3.11

Microsoft Windows CE.NET 4.0 / 4.2

Microsoft Client for DOS

NDIS 2 driver

NDIS 3 driver

NDIS 4 driver

NDIS 5 driver

Novell NetWare Client for DOS

Novell NetWare Client 32 for DOS

Novell NetWare Server 3.12, 3.2, 4.11, 4.2, 5.0, 5.1

ODI for DOS driver

32 bit ODI LAN driver

100M PCI SC Fiber Ethernet NIC Card Specifications:

Optical Interface: Optical Ethernet 100Base-FX

Single single-mode fiber, single wavelength 1310nm, single SC/PC connector,  15 km reach

Single single-mode fiber, dual wavelength 1310 / 1550nm, single SC/PC connector, 40 km reach

Dual single-mode fiber, single wavelength 1310nm or 1550nm, dual SC/PC connectors, 60 km reach

Dual multimode fiber, single wavelength: 1310nm, dual SC/PC connectors, 2 km reach

Dual multimode fiber, single wavelength: 1310nm, dual ST/PC connectors, 2 km reach

Host interface: PCI 2.1 Bus (Bus Master)

Physical Dimensions: 12.0 cm x 5.3 cm

Environment:

Storage: -25oC~ 85oC (-13oF~ 131oF)

Operating: 0oC~ 50oC (32oF~ 122oF)

Humidity: 10% to 90% non-condensing

Power Consumption: 2 Watts max.
