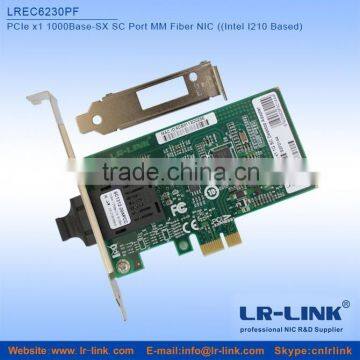

LR-LINK Brand LREC6230PF PCIe x1 1000BASE Desktop Fiber Ethernet Optical Network Adapter Card (Intel I210IS Based)

LR-LINK Brand LREC6230PF PCIe x1 1000BASE Desktop Fiber Ethernet Optical Network Adapter Card (Intel I210IS Based)

LREC6230PF is a typical model of 1000base-SX/LX Ethernet adapter optical network card, based on Intel I210IS Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This new Ethernet adapter builds on LR-LINK’s 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet network card adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers’ unanimous recognition.

LR-LINK has PCI, PCIe x1; 100M, 1G; SC,SFP,LC,ST,FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card.

This LREC6230PF Ethernet optical network card adapter represents the next step in the Gigabit Ethernet (GbE) networking  evolution for the enterprise and data center offering Audio-Video-Bridging  (AVB) support, along with power management  technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).

Key Features

*single-port PCI-Express 1000BASE-SX/LX Ethernet adapter

*High-performing design supporting PCI Express* Gen 2.1 2.5GT/s

*According to customer's demands, we can select SL, LC, ST, FC and SFP fiber interface

* Innovative power management features including Energy Efficient Ethernet (EEE) DMA

Coalescing,ultra-compact design, and a unique ventilated bracket for increased efficiency

and reduced power consumption

* IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation

*Reliable and proven Gigabit Ethernet technology from Intel Corporation

Specifications

Network Operating Systems (NOS) Software Support

*Windows CE/5.0

*Windows Server 2000

*Windows 7 32-bit (64-bit)

*Windows Vista 32-bit (64-bit)

*Windows Server 2003 32-bit (64-bit)

*Windows Server 2008 32-bit (64-bit)

*Windows Server 2008 R2 32-bit (64-bit)

*NetWare NetWare 5.0/5.1/6.0/

*DOS

*Novell ODI

*Linux 2.4 series kernel and 2.6.x/3.x

*FreeBSD with the 9.x kernel

*Open UNIX 8.0 (Caldera), UnixWare 7.x

*Sun Solaris x86

Order Information

PS: The above details are just for reference, if there are any changes, no prior notice.
