LR-LINK LREC6210PF-SFP PCI Express SFP Port 1000Base-X 1G ethernet adapter (BCM 5708s Based)

Specifications

LR-LINK LREC6210PF-SFP PCI Express SFP Port 1000Base-X 1G ethernet adapter (BCM 5708s Based)

Overview

The LR-LINK LREC6210PF-SFP gigabit ethernet express card is a high performance PCI Express multifunction network adapter for either standard or low profile slots running over a fiber-optic network environment.

In addition to delivering Gigabit Ethernet networking, the LREC6210PF-SFP supports TOE(TCP/IP Offload Engine) for Windows only, Internet Small Computer System Interface (iSCSI).

Advantages:

Use the server chipset,can support more fuctions

Comptaible all the OS

PCB 4 layer,1.5oz,4mil,more stable,longer using time,smaller resistance

Two line power : 3.3v/1.2v

DC-DC power supply,avoid the card effecting by power influence

All use the good quality materials

Support PXE

Use the TI power controller,the best controller manufactures in the world,it can provide a stable working enviroment

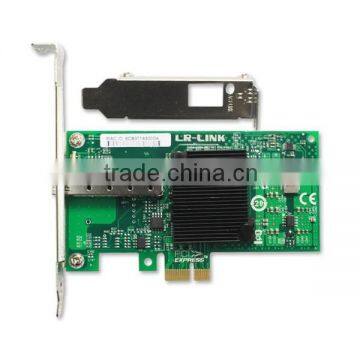

Product Picture:

Standard Features:

Performance Gigabit Ethernet Throughput

Up to 1000Mbps Ethernet transfer rate delivers outstanding network performance that improves response time and removes bottlenecks across the entire network.

TCP/IP Offloading

TCP/IP Offload Engine (TOE) for Windows moves the processing of data in the TCP protocol stack from the server CPU to the network card, freeing CPU cycles for other duties.The LREC6210PF-SFP supports TOE when Windows TOE Chimney is installed. With TOE, network communications are improved, and server efficiency is increased.

Accelerated iSCSI

Accelerated iSCSI allows the LREC6210PF-SFP gigabit ethernet express card  to multi-function as both as a network adapter and as a storage host bus adapter, thereby providing access to storage platforms and to servers over a single connection.Additionally,the LREC6210PF-SFP gigabit ethernet express card offloads the iSCSI software to the hardware for improved performance.

Load Balancing

Transmit Load Balancing (TLB) and Switch-Assisted Load Balancing (SLB) are two advanced features used to build a bigger pipe for improved networking bandwidth. These port bonding techniques enable users to use up to eight adapter ports in a ProLiant server and aggregate their throughput up to a theoretical maximum of 16 Gigabits per second full-duplex transmission.

Checksum and Segmentation Offloads, and Interrupt Coalescing

When running as a standard Gigabit adapter, the LREC6210PF-SFP gigabit ethernet express card features TCP Checksum Offloads as well as TCP Segmentation Offloads and Interrupt Coalescence. These features reduce the load on the CPU for overall improved system response. Interrupt Coalescence is a feature that groups multiple packets and issues a single interrupt to the host. This process improves host efficiency.

Scalability and Reliability

Network Fault Tolerance, sometimes called "failover" or "NIC redundancy," allows for the installation of multiple so that the active device can be backed up by a redundant adapter to improve availability. The HP teaming utility also allows users to specify that when a failed adapter is fixed and replaced, the original adapter resumes its function as the primary network connection.

Management Support

LREC6210PF-SFP gigabit ethernet express card  supports SNMP.

Configuration Utilities

Enable initial diagnostics within Windows, Linux, and DOS operating systems.Configure network adapter teaming in a Windows environment. The Windows adapter teaming configuration utility includes a patented teaming GUI for Microsoft Windows 2000 and 2003 operating systems. Support for scripted installations of teams in a Microsoft Windows environment allow for unattended OS installations.

LED Indicator

A single bracket LED indicator shows link integrity and network activity for easy troubleshooting.

Technical Specifications

Compliance

IEEE 802.3z, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q

PCI Express ver 1.0a

General Specifications

Main chip: Broadcom 5708S

On-board memory:92KB

Data rate:1000 Mbps, Half- and full-duplex

Data path:Four lane (x1) PCI Express compatible with x1, x4, x8, and x16 PCI Express slots

Interrupt levels: INTA

Connector: SFP Port

Power and Environmental Specifications

Operating Temperature: 32°to 131°F (0°to 55° C)

Operating Humidity: 10% to 90% non-condensing

Non-operating Temperature: -40°to 185°F (-40°to 85°C)

Non-operating Humidity: 5% to 95% non-condensing

Operating system support Standard Gigabit Ethernet:

DOS NDIS2

Netware(ODI16)

Windows XP 32-bit(64-bit)

Windows Server 2003 32-bit(64-bit)

Windows Vista 32-bit(64-bit)

Windows 7 32-bit(64-bit)

Windows 8 32-bit(64-bit)

Windows 8.1 32-bit(64-bit)

Windows Server 2008 32-bit(64-bit)

Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012

Windows Server 2012 R2

Linux

Sun Solaris

VMware ESX/ESXi 4.1/5.0/5.1/5.5

Ordering Information:

PS: The above details are only for reference,if there are any changes,no inform will have.
