10/100m ethernet adapter PCIe x4 Dual Port 2*RJ45 1G ethernet adapter.

10/100m ethernet adapter PCIe x4 Dual Port 2*RJ45 1G ethernet adapter.

Key Feature:

High-performing, 10/100/1000 Ethernet connection

Reliable and proven Gigabit Ethernet technology from Intel Corporation

Scalable PCI Express* interface provides dedicated I/O bandwidth for I/O-intensive networking applications

Optimized for virtualized environments

Flexibility with iSCSI Boot

Description

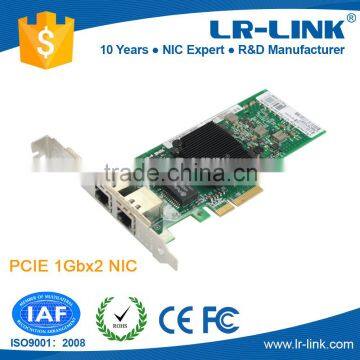

The LR-LINK LREC9702ET Multi-Port Server Adapter is PCIe GbE network adapters types of lan card. Built with the Intel 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization.

General

Intel 82576 Gigabit Ethernet Controller

Low-profile

iSCSI remote boot support

Load balancing on multiple CPUs

Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots

Multi-port design

Support for most network operating systems (NOS)

Intel PROSet Utility for Windows Device Manager

RoHS-compliant3

I/O Features for Multi-Core Processor Servers

Multiple queues & receive-side scaling

MSI-X support

Low Latency Interrupts

Header splits and replication in receive

Multiple queues: 8 queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload  (IPv4, IPv6)

Virtualization Features

Virtual Machine Device queues2 (VMDq)

Next-generation VMDq

IPv6 offloading

Advanced packet filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

PC-SIG SR-IOV Implementation(8 virtual functions per port)

Manageability Features

On-board microcontroller

Advanced filtering capabilities

Preboot execution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

Wake-on-LAN support

iSCSI boot

Watchdog timer

IEEE 1588 precision time control protocol

Network Operating Systems (NOS) Software Support

Windows 2000

Windows XP

Windows Vista 32-bit(64-bit)

Windows Server 2008 R2 32-bit(64-bit)

Windows Server 2012 R2 32-bit(64-bit)

Novell Netware 5.x,6.x

Linux kernel version 2.6.30 or greater (x86_64) (w/ SR-IOV support)

FreeBSD 7.x or laster

DOS

Novell ODI

OS 8 or laster

SCO Open Server

UnixWare / OpenUnix 8

Sun Solaris x86

OS Independent

VMware ESX
