LR-LINK LREC9802BF-2SFP+ PCIe x8 Dual SFP+ Port 10G ethernet lan cards (Intel 82599ES Based)

LR-LINK LREC9802BF-2SFP+ PCIe x8 Dual SFP+ Port 10G ethernet lan cards (Intel 82599ES Based)

10g ethernet lan cards key feature:

*  Best Choice for Virtualization

*  Unified Networking and Storage

*  Support for FCoE

*  Support for iSCSI

*  Reliable Performance

*  Security Optimizations

*  PCIe v2.0 (5 GT/s)

*  Designed For Multi-core Processors

*  Support most of Network Operating Systems (NOS) Software

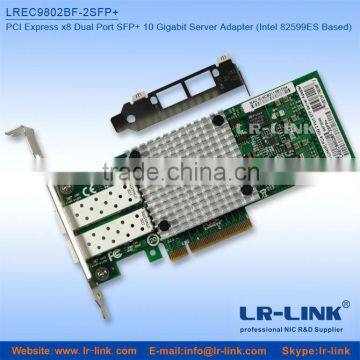

10g ethernet lan card product picture showing:

Description:

LR-LINK LREC9802BF-2SFP+ 10g ethernet lan cards with SFP+ connectivity are the most flexible and scalable Ethernet adapters for today’s demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

10g ethernet lan cards general:

Low-profile

Load balancing on multiple CPUs

iSCSI remote boot support

Intel® PROSet Utility for Windows* Device Manager

Time Sync (IEEE 1588, 802.1as)

I/O Features for Multi-core Processor Servers:

Intel® Direct Cache Access (DCA)

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 128 Tx and Rx queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

IPsec Offload

MacSec

Virtualization Features:

Intel 82599ES Chip  10g ethernet lan cards Support VMDq

Next-Generation VMDq1  (64 queues per port)

PC-SIG SR-IOV Implementation (64 virtual functions per port)

Virtual Machine Load Balancing (VLMB)

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features:

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

ISCSI Boot

Watchdog Timer

Adapter Product Features:

Intel® PROSet Utility

Receive Side Scaling

Direct Cache Access (DCA)

Advanced Software Feature:

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type

Ordering Information:

PS: The above details is just for reference,if there is any change,no inform will have.
