Support PXE Boot Rom PCI 10/100/1000Mbps Network Interface Card

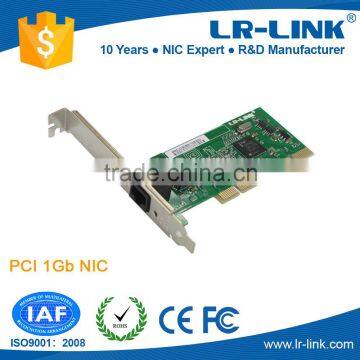

PCI 10/100/1000Mbps Network Card (Intel 82540 Based)

Features

Intel® 82540EM Gigabit Controller

Compatible with Fast Ethernet and Ethernet

PCI 2.2 32-bit 33/66 MHz

10/100/1000 Mbps

Category-5 Cabling

Interrupt Moderation

ACPI, WoL, PXE

SNMP/DMI, WfM

MeetsIEEE 802.3ab technology

Advanced Cable Diagnostics

Support for many NOSs

Specification

GENERAL

Connectors: RJ-45

IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T

Wiring: Cat-5, 4 pair

ADAPTER PRODUCT FEATURES

Intel® SingleDriver™ technology

Plug and Play Specification Support

Easy Installation, Intel® PROSet II Utility

Auto-negotiation, Full-duplex Capable

Bus Type

Bus Speed: PCI 2.2

Bus Speed: 32/33, 32/66

NETWORK MANAGEMENT

Wired for Management (WfM) Baseline v2.0

DMI 2.0 Support, WMI & SNMP-manageable

Offline Diagnostics

Intel® Boot Agent

ACPI Power Management

Wake on LAN*

ADVANCED SOFTWARE FEATURES

IEEE 802.1Q VLANs

IEEE 802.3x Flow Control

TCP Checksum Offload

IEEE 802.1p, Intel® Priority Packet II

TECHNICAL FEATURES

Data Rate(s) Supported per Port: 10, 100, 1,000 Mbps

Integrated Memory: 64 KB

Interrupt Levels: INTA

IEEE Support: 802.2 and 802.3ab

Data Path Width: 32-bit PCI

Data Transfer Mode: Bus-master DMA

Controller—Processor: Intel® 82540EM

Typical Power Consumption: 800 MA @+5 VDC

Operating Temperature: 0–55°C

Operating Humidity: 85% at +55°C

NOS SOFTWARE SUPPORT

Windows ME

Windows CE

Windows 98

Windows 98SE

Windows NT 4.0

Windows NT Terminal Server

Windows Server 2000

Windows XP 32-bit (64-bit)

Windows 7 32-bit (64-bit)

Windows Vista 32-bit (64-bit)

Windows Server 2003 32-bit (64-bit)

Windows Server 2008 32-bit (64-bit)

Windows Server 2008 R2 32-bit (64-bit)

MAC OS

Novell ODI

OS/2 Warp

SCO Open Server

Sun Solaris x86

OS Independent

DOS, Novell ODI

FreeBSD 4.X,5.X,6.X,7.X

NetWare ,NetWare5.0,5.1,6.0,6.5

Linux with 2.2.20 to 2.6.X kernels

Open UNIX 8.0 (Caldera), UnixWare 7.x

Ordering Information:

PS: Above detail are only for reference, if there are any changes, no inform will have.
