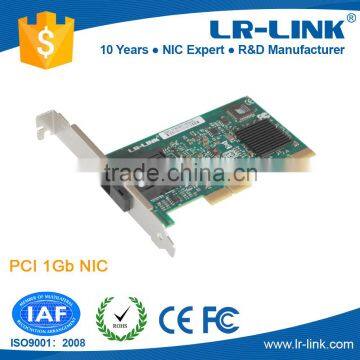

PCI Gigabit SC Port Fiber Network Card 1000base multimode pci network

 Model Number:LREC7210PF-SC
Product Name: PCI 1000Base-SX SC Port MM 1G Fiber NIC for Desktop
Transmission Rate: 1000Mbps
Controller Processor: Intel 82545EB
Interface Type: PCI
Connector Type: SC Port
Operating System: Support for most OS, Windows, Linux, etc
Performance Features:jumbo frames (16 KB);Wake on LAN (WoL) support; 64KB RX and TX packet FIFOs per port; host memory receive buffers (256B to 16KB); IEEE 802.1Q VLAN filtering for up to 4096 VLAN tags; IEEE 802.3ab Auto-Negotiation; Lowest latency solution; Reduced frame loss; Improve throughput performance and CPU utilization; easily create multiple virtual LAN segments.

LREC7210PF is a typical model of  1000base multimode pci network adapter, based on Intel 82545EB Ethernet Controller, researched and designed by Shenzhen Lianrui Electronics Co., LTD. This Ethernet adapter builds on LR-LINK’s 10 years history of excellence in NIC R&D and Manufacture. LR-LINK continues to maintain the leadership position on NIC in China. This optical fiber Ethernet adapter is widely applied various occasions of Fiber To The Desktop (FTTD), set up optical fiber LAN network, optical fiber connection with life expectancy of 30 years, not subject to electromagnetic interference and against lightning. This adapter has very high data security, high reliability, stability and compatibility, has been widely used in the secret industry, such as prosecution, courts, police and military industrial enterprises etc. represented defense sectors, and gained all customers’ unanimous recognition.

LR-LINK has PCI,PCIe x1; 100M, 1G; SC,SFP,LC,ST,FC; Multi-Mode, Single-Mode and Bidirectional etc. Full-Series Fiber To The Desktop optical fiber network card (FTTD fiber network card). There are more than 50 models for your choose. LR-LINK is an important pusher of the solutions application for global Fiber to the desktop (FTTD), is the leader of global desktop optical fiber network card. If you want to know more product information, please browse: /DesktopFiberNICCards/index1.shtml

LREC7210PF 1000base multimode pci network card support boot-rom.PCI interface, delivers high throughput while conserving CPU resources. With a flexible design that fits almost any type of PCI bus, the standards-based management features and wide network operating system support help to ensure extensive compatibility with the latest server and networking environments.

Key Features

Single-port PCI-Express 1000BASE-SX/LX Ethernet adapter

High-performing design supporting PCI Express* Gen 2.1 2.5GT/s

According to customer's demands, we can select SL, LC, ST, FC and SFP fiber interface

Professional Quality Trustworthy

High Performance Control, High performance Assurance

Professional Design, Cast Highly Stable Fiber Network

Support for most NOSs: Enables widespread deployment
INTEL gigabit Single Driver technology: Common driver suite for Gigabit Ethernet reduces installation Complexity

Backward Compatibility with previous generations of PCI 1000M Network Adapters: Reduces support costs and simplifies installation and maintenance

Remote Management Support (WfM, RIS, SNMP/DMI): Reduces support costs with remote management based on industry-wide standards

IEEE 802.3ab compatibility: Supports Gigabit Ethernet industry-wide networking standard

Intel® 82545 Gigabit Controller: Provides high performance, reliability, and low power use in a single integrated Gigabit Ethernet controller chip

Full-height and low profile, screw-on brackets included with each adapter: Compatible with full-height and low-profile PCI slots—the standard, full-height bracket can be easily swapped out and replaced by the shorter, low-profile bracket, for installation in high-density 1U and 2U servers that feature low-profile PCI slots

Interrupt Moderation:

Delivers increased performance while significantly reducing CPU utilization
Large Send Off-load/TCP Segmentation Off-load: Compatible with Large Send Off-load feature of Microsoft Windows* Server 2003, 2000 and XP which enables wire speed performance with low CPU utilization

LC Connectors: This new, smaller connector design is compatible with the latest fiber-optic cabling standards

Specifications
