LR-LINK PCIe x1 Intel Chipset 1000Base-FX Dual SFP Port Fiber NIC Network Card

LREC9242PF-2SFP

LR-LINK PCIe x1 Intel Chipset 1000Base-FX Dual SFP Port Fiber NIC Network Card

Dual-port Gigabit Ethernet adapter designed for multi-core processors and optimized for Virtualization & Unified Networking Environments

Key Features:

Dual high-performing 1000BASE-FX Ethernet connections

Low power high performing bridgeless design supporting PCI Express* Gen 2.0 5 GT/s

Environmentally-friendly lead-free adapter

Hardware acceleration for TCP-IP and iSCSI

Hardware optimizations for virtualized servers

Reliable and proven Gigabit Ethernet technology from Intel Corp.

Support VDMq

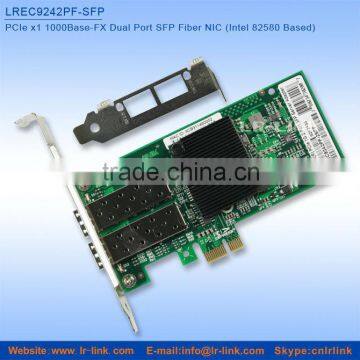

Product Picture:

General Features:

Intel® 82580 Gigabit Ethernet Controller with

PCI Express* V2.0 (5 GT/s) Support

Low-Profile and Standard height full

remote boot support

Load balancing on multiple CPUs

Compatible with x4, x8, and x16 standard and low-profile PCI Express* slots

Multi-port design

Support for most network operating systems (NOS)

Intel® PROSet Utility for Windows* Device Manager

I/O Virtualization Features:

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 8 queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Tx TCP segmentation offload (IPv4, IPv6)

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

Virtualization Features:

VMDq

Advanced Packet Filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features:

Advanced filtering capabilities

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and

Remote Network Monitoring (RMON) Statistic Counters

Wake-on-LAN support

iSCSI Boot

Watchdog Timer

IEEE 1588 precision time control protocol

Advanced Software Feature:

IEEE 802.3ad (link aggregation control protocol)

Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)

PCIe Hot Plug*/Active periphera; component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 1588 Precision Time Control Protocol

IEEE 802.3 2005* flow control support

Tx/Rx IP,TCP& UDP checksum offloading(IPv4, IPv6) capabilities control protocol(TCP),user datagram protocol

(UDP), Internet protocol (IP)

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type

Adapter Product Features:

Intel® PROSet Utility

Plug and play specification support

Intel® I/O Acceleration Technology (Intel® I/OAT)

Ships with full-height bracket installed; low-profile bracket included in package

Technical Features:

Data rate supported per port:   1000 Mbps

Bus type:                                      PCI Express* 2.1 (5 GT/s))

Bus width:                                    1-lane PCI Express; operable in x1,x4, x8 and x16 slots

Interrupt levels:                             INTA, INTB, INTC, INTD, MSI, MSI-X

Controller-processor:                  Intel 82580 Gigabit Ethernet Controller

Power consumption (typical):    6.0 W

Storage temperature:                -40 °C to 70 °C (-40 °F to 158 °F)

Operating temperature :            0 °C to 55 °C (32 °F to 131 °F)

Storage humidity:                       90% non-condensing relative humidity at 35 °C

Network Operating Systems (NOS) Software Support:

Windows* Vista* SP2

Windows Server* 2003 SP2

Windows* Unified Storage Solution 2003

Windows Server 2008 SP2

Windows Server 2008 R2

Windows 7

Linux* Stable Kernel version 2.6

Linux RHEL 4.8.

Linux RHEL 5.4

Linux SLES 10 SP3

Linux SLES 11

FreeBSD* 8.0

FreeBSD*7.2

UEFI* 2.1

VMware ESX* 4.x

Order Information:

PS: The above details is just for reference,if there is any change,no prior notice .
