Intel XL710 Chipset PCI Express x8 QSFP+ Connections Port 40G Ethernet Lan Cards Compatible XL710 10/40 GbE

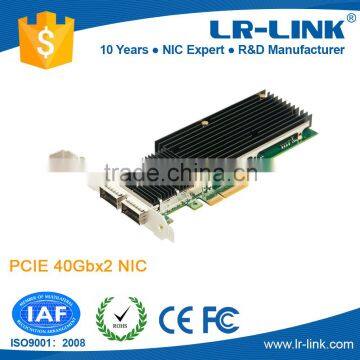

LREC9902BF-2QSFP+  Intel XL710 Chipset PCI-E Express x8 QSFP+ Connections Port 40G Ethernet Lan Cards

Key Features
• dual-port 40 GbE adapters
• PCI Express* (PCIe) 3.0, x8
• Exceptional Low Power Adapters
• Network Virtualization offloads including Geneve, VXLAN, and NVGRE
• Intel® Ethernet Flow Director for hardware-based application traffic steering
• Intel® Data Plane Developer Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performa

Description:

Product Overview

Intel continues its legacy of Ethernet leadership by introducing a 40 gigabit family of adapters powered by, the Intel® Ethernet XL710 Controller, codenamed Fortville.

The XL710 adapter family addresses the demanding needs of thenext-generation agile data center by providing unmatched features for both server and  network virtualization, flexibility for L AN and  SAN networks,and proven, reliable performance.

Leading 10/40 GbE Performance

Optimized performance vectors (and key uses) include:

• Small Packet Performance: Maintains wire-rate throughput on smaller payload sizes (>128 Bytes for 40 GbE and >64 Bytes for 10 GbE

• Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers

• Virtualized Performance: Alleviates hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)

• Network Virtualization: Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE

• Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE)

A Complete, Unified Networking Solution

Converging data and storage onto one fabric eliminates the need for multiple adapters, cables, and switches. Furthermore both 10 and 40 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A key capability that makes all this possible is traffic class  separation provided by Data Center Bridging (DCB)1—providing a one-wire solution with virtual pipes for the  different classes of traffic:

• Data: Best effort  delivery  of standard L AN traffic

• Storage: Losslessnetwork for FCoE and iSCSI

• Management: Guaranteed connectivity of data center

IP management

Power Savings

• Lowest Power Consumption

• Energy Efficient Ethernet  (EEE)

Server Virtualization

Intel VT include:

• VMDq for Emulated Path

• Virtualized Performance

• Storage Performance

• SR-IOV for Direct Assignment

Additionally,XL710 adapters provide Virtual Bridging1 support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation:

• VEPA1:IEEE 802.1Qbgsupport for Virtual EthernetPort Aggregator1

• VEB: Virtual Ethernet Bridge support via Intel VT

Network Virtualization

Network virtualization is the next big trend in creating an agile data center. The family of XL710 adapters are ready to help you take that next step.

• VXLAN, NVGRE, Geneve Offloads

At the same time XL710 offloads LSO, GSO, and checksumfrom the host software reducing CPU overhead.

Intelligent Offloads

• TCP Stateless Offloads

• Host iSCSI/FCoE Initiators

• Flow Classification

Features

General

Intel® XL710 10/40 Gigabit Ethernet Controller

QSFP+ Connectivity

Low-profile

Load balancing on multiple CPUs

iSCSI remote boot support

Fibre Channel over Ethernet (FCoE) Support

Support for most network operating systems (NOS)

RoHS-compliant

Intel® PROSet Utility for Windows* Device Manager

Time Sync (IEEE 1588, 802.1as)

I/O Features for Multi-core Processor Servers

Intel® Flow Director

MSI-X support

Multiple Queues: 1,536 Tx and Rx queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Virtualization Features

Next-Generation VMDq

PC-SIG SR-IOV Implementation (128 per device)

Virtual Machine Load Balancing (VLMB)

Advanced Packet Filtering

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

VXLAN and NVGRE Support

Manageability Features

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

iSCSI Boot1

Watchdog Timer

Advanced Software Feature

Adapter fault tolerance (AFT)

Switch fault tolerance (SFT)

Adaptive load balancing (ALB)

Teaming support

IEEE 802.3ad (link aggregation control protocol)

PCIe Hot Plug*/Active Periphera component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol(UDP), Internet protocol (IP))

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability

TECHNICAL FEATURES:

Controller-processor: Intel® Ethernet Controller XL710-AM2

Network Standards: IEEE 802.3

Physical Layer Interface: • 40GBASE-SR4

                                             • 40GBASE-LR4

Operating temperature: 0 °C to 55 °C (32 °F to 131 °F)

Air Flow: Minimum of 150 LFM required

Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)

Storage humidity: Maximum: 90% non-condensing relative humidity at 35 °C

LED Indicators: LINK (solid) and ACTIVITY (blinking)

LINK SPEED (green=10 Gbps; yellow=1Gbps)

Data rate supported per port: • Optical: 10 GbE/40 GbE

                                                     • Direct Attach: 40 GbE

Bus type: PCI Express 3.0 (8 GT/s)

Bus width: 4-lane PCI Express* and 8-lane PCI Express

Interrupt levels: INTA, MSI, MSI-X
