LR-LINK LREC9802BF-2SFP+ PCIe x8 Dual Optical 10G SFP Network Card Compatible With Intel 10G Card X520-SR2

LR-LINK LREC9802BF-2SFP+ PCIe x8 Dual Optical 10G SFP Network Card Compatible With Intel 10G Card X520-SR2

Dual-Port 10 Gigabit SFP+ Ethernet Server Adapters Card Provide Ultimate Flexibility and Scalability in Virtual and Unified Storage Environments

Product Description:

LR-LINK 10g Network Card Compatible with Intel 10g card x520-sr2 with SFP+ connectivity are the most flexible and scalable Ethernet adapters for today’s demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors and demanding applications such as High Performance Computing (HPC), database clusters, and video-on-demand are driving the need for 10 Gigabit connections. Customers require flexible and scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized and unified storage environments.

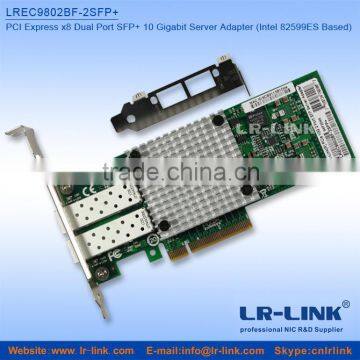

10G SFP Card Product Picture Showing:

Best Choice for Virtualization

Intel’s family of LR-LINK LREC9802BF-2SFP+ 10g sfp card addresses networking bottlenecks in virtualized environments. These adapters enable network-intensive applications to achieve the performance expected in a virtualized environment.

The LR-LINK LREC9802BF-2SFP+ intel chip 10g card delivers the same functionality and throughput as ten dual-port, one gigabit adapters, saving cost, power, and complexity.

Unified Networking and Storage

The family of LR-LINK Network Card Brand LREC9802BF-2SFP+ 10G sfp network card lowers your data center total cost of ownership (TCO) by providing the ability to route LAN and SAN traffic over a single fabric.

Support for FCoE

FCoE encapsulates Fiber Channel frames over standard Ethernet networks, enabling Fiber Channel to take advantage of 10 GbE networks while preserving its native protocol. The LR-LINK LREC9802BF-2SFP+ 10g network card compatible with x520-sr2 offer FCoE hardware acceleration to provide performance comparable to FC HBAs. The server adapters support Data Center Bridging, also known as Converged Enhanced Ethernet (CEE), which allows customers to configure traffic classes and priorities to deliver a lossless Ethernet fabric. An Intel Ethernet X520 server adapter reduces TCO by eliminating redundant fabrics and saves the cost of expensive FC HBAs and FC switch ports.

Support for iSCSI

The server adapters provide complete support for proven native OS and VMM iSCSI initiators as well as iSCSI boot.

The LR-LINK LREC9802BF-2SFP+ 10g sfp card do it all 10 Gigabit LAN, FCoE, and iSCSI; truly delivering on the promise of unified networking.

Reliable Performance

The family of LR-LINK LREC9802BF-2SFP+ 10g network card include a number of advanced features that allow it to provide industry-leading performance and reliability.

Security Optimizations

The adapters support IPsec offload for Microsoft’s Network Access Protection (NAP), Active Directory,* and future security capabilities in Windows* 7. An LR-LINK 10G server adapter allows customers to run a secure network environment without sacrificing performance.

PCIe v2.0 (5 GT/s)

PCIe v2.0(5GT/s) support enables customers to take full advan- tage of 10 GbE by providing a maximum of 20Gbps bi-directional throughput per port on a single dual port card.

Designed For Multi-core Processors

Support for technologies such as multiple queues, receive-side scaling, multiple MSI-X vectors, and Low Latency Interrupts allow the LR-LINK LREC9802BF-2SFP+10g network card to provide high-performance, 10 Gigabit connectivity in multi-core server blades. These technolo- gies distribute network processing across multiple CPU cores, improving overall performance.

General

Low-profile

Load balancing on multiple CPUs

iSCSI remote boot support

Support for NOS

Intel® PROSet Utility for Windows* Device Manager

Time Sync (IEEE 1588, 802.1as)

I/O Features for Multi-core Processor Servers

Intel® Direct Cache Access (DCA)

MSI-X support

Low Latency Interrupts

Header Splits and Replication in Receive

Multiple Queues: 128 Tx and Rx queues per port

Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities

Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux* environments (IPv4, IPv6, TCP/UDP)

IPsec Offload

MacSec

Virtualization Features

VMDq

Next-Generation VMDq1  (64 queues per port)

PC-SIG SR-IOV Implementation (64 virtual functions per port)

Virtual Machine Load Balancing (VLMB)

VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags

Manageability Features

Preboot eXecution Environment (PXE) Support

Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters

ISCSI Boot

Watchdog Timer

Adapter Product Features

Intel® PROSet Utility

Receive Side Scaling

Direct Cache Access (DCA)

Advanced Software Feature

Teaming support

IEEE 802.3ad (link aggregation control protocol)

PCIe Hot Plug*/Active periphera; component interconnect (PCI)

IEEE 802.1Q* VLANs

IEEE 802.3 2005* flow control support

(UDP), Internet protocol (IP)

IEEE 802.1p*

TCP segmentation large send offload

MSI-X supports Multiple Independent Queues

Interrupt moderation

IPv6 offloading — Checksum and segmentation capability extendedto new standard packet type
