Adhesive Dispensing Systems/ Adhesives and Dispensing Systems

Product Application

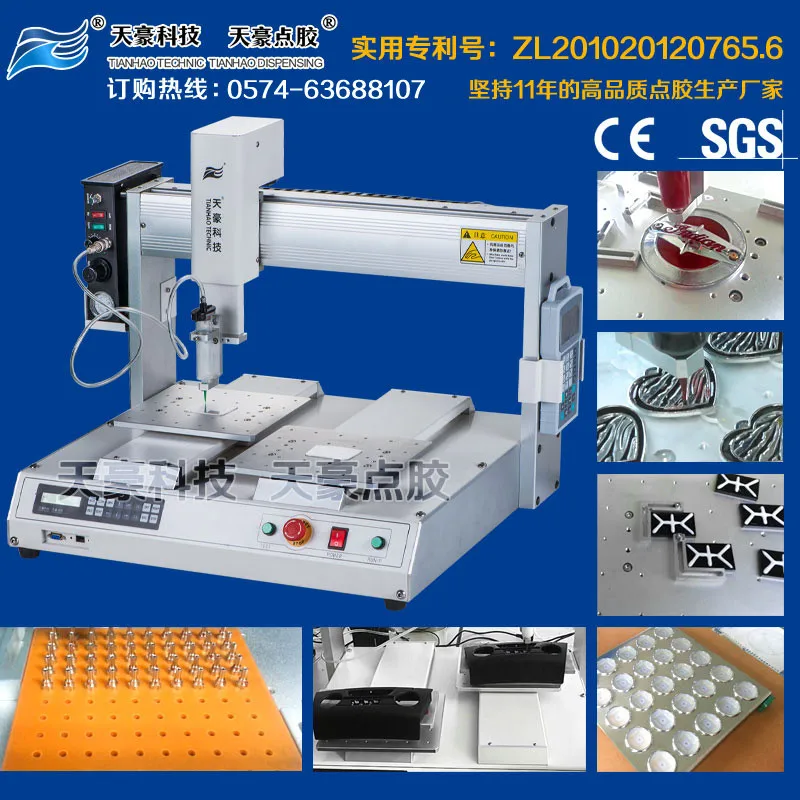

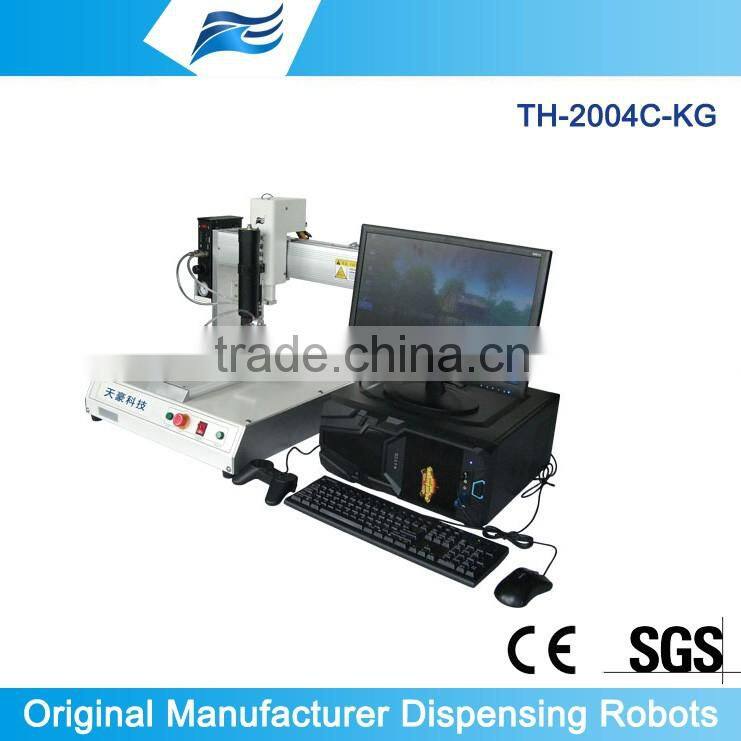

The TH-2004C Series automated dispensing system from Tianhao dispensing delivers easy automation for precise fluid application with a simple vision pencil camera.

Specialized vision-guided DispenseMotion software and pencil camera make the TH-2004C Series easy to setup and program. True 3D motion control makes programming dots, lines, circles, arcs, and compound arcs fast and simple.

Get faster cycle and batch times in a system that quickly integrates into any manufacturing operation. With platforms that range from 300 x300 mm to 500 x 500 mm, the TH-2004C Series is ideal for batching or critical dispensing applications.
TH-2004C Series can work as a standalone system or as a key parts of an automated soluation and is easily itegrated into in-line transfer systems,rotary tables and pallet assembly lines

An optional joystick puts the control of axis movement in the hands of the operator.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

4)reduced production,material.and ownership costs
5)Faster cycle and batch times
6)easy integration into any manufacturing operation
7)reduced production,material.and ownership costs
8)new manufacturing opportunties

Machine Parts

Main Features

Professional-grade software with dispensing machine
Easy, intuitive setup and programming
Software use man-machine dialoguing window, Chinese and English can interfaces.
TiaHao dispensing robot controller software design from fluid control and adhesive process requirements.basic windows XP computer operation system and Integration of robot trajectory control and flow control.have(Chinese/Traditional/English) three language be select as your require. any of the quantitative,Dispensing glue delay time,ahead of time delay Distance.Dispensing height and other relevant parameter. Can be set. solve the ordinary machine with operation of complex, running unstable, dispensing no Accurate, non-uniform and Contact evident tape and other obvious defects.
The dispensing image equipped with newly developed "Dispensing preview function" is displayed Display high-speed image acquisition and flexible dispensing track editor
the dispensing programs can be enjoy be created ,save, quote .changed,  no limit save file.
Different product dispensing more kinds different size and thickness line or arcs at same time, you only  setting different dispensing speeds, in each period, so that we can dispensing different  size and thickness line or arcs.

Machine Parts

Joystick Streamlined file import and conversion
Quote the JOYSTICK operate the machine-readable program coordinates.simplifies the operation of the robot. Easy to 3axis linkage, resolve all the 3D adhesive dispensing process. The drawing load by the AUTO CAD which simplifies operation
