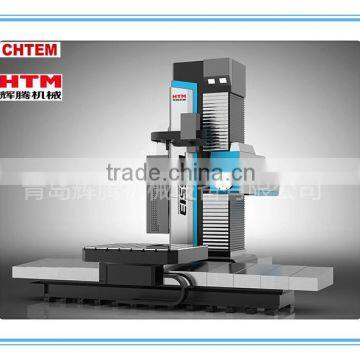

TK6813 CNC Metal Mills of Planer Type Ram Milling Machine
US$ 300,000 - 700,000
/ Set
1 Set(Min. Order)
- Qingdao China
- T/T
You May Like
-
TK6813 CNC Metal Milling Machine of Planer Mill
-
Made in China Universal Milling Machine Heavy Duty-TPX6113
-
CNC Metal Milling Machine Floor Type-TK6916
-
TPX 6111A Heavy Duty Conventional Milling Machine Made in China
-
Conventional Milling Machine-Table Type TPX Series
-
TPX 6113 Conventional Milling Machine Table Type
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | CHTEM | Model Number | TK6813 | |
| Type | Other, Horizontal, Planer Type Ram Milling Machine | CNC or Not | CNC | |
| Voltage | 220-440V | Power(W) | 22KW | |
| Weight | Depend on workpiece size | Certification | CE Certificate | |
| Warranty | One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Spindle dia.:130mmCNC/Servo system: Siemens 840D/ Fanuc 18i
With Ram
Automatic working metho
1. Main information
1.1Specifications of TK6813
| Spindle Diameter | 130mm |
| Spindle Taper | ISO50 |
| Shank Specification | JT50 |
| Pull Stud | BT-50 |
| Max. Spindle Speed | 2-1500r/min |
| Cross Travel of Table | 3000mm |
| Longitude Travel of Column | 2000mm |
| Axial Travel of Ram | 1300mm |
| Axial Travel of Boring Spindle | 700mm |
| Table Rotary Travel | 800mm |
| X.Y Feed Rate | 1-3000mm/min |
| W Feed Rate | 1-2000mm/min |
| Z Feed Rate | 1-2000mmmin |
| B Feed Rate | 0.003-1 r/min |
| X.Y Rapid Movemet | 6000mm/min |
| W.Z Rapid Movement | 5000mm/min |
| V Rapid Movemen | 4000mm/min |
| B Rapid Movement | 1.5r/min |
| X.Y.Z. Positioning Accuracy | ± 0.025mm |
| B Positioning Accuracy | 8” |
| X.Y Repeatability | ± 0.02mm |
| Z Repeatability | ± 0.02mm |
| B Repeatability | 6” |
| Motor Power | 22/30 KW |
| Table Size | 2000X3000mm |
| Table Loading Capacity | 10-40 tons |
| Max. Spindle Torque | 2500Nm |
| Max. Spindle Thrust | 20000N |
1.2 Main purchase parts
No | Name | Specification | Quantity | manufacture |
1 | Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2 | Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3 | Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4 | Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5 | Table bearing | NN3024 | 1set | FAG--Germany |
6 | Roll ball screw rod | 63/80, T5 | 5pcs | BLIS--Germany |
7 | CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8 | Feed servo motor | 6pcs | Siemens/Fanuc | |
9 | Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10 | Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11 | Main hydraulic units | Compass | Serial | Taiwan |
12 | Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13 | Electrical parts | Low voltage | Siemens, ABB, Schneider | |
14 | Oil coolant | CO-24 | 1set | LOM-Taiwan or Japan |
15 | Roller | RWB PR | 44pcs | IKO-Japan or INA-Germany |
16 | Transverse switch | LXZ | 5pcs | Omron-Japan |
17 | Seal unit | Serial | BUSAK+SHAMBAN-American |
2. Pictures of ram milling machine details:
3. Pictures of our company:
