TK68 Series CNC Horizontal Rotary Table Planer Type Boring Milling Machine/Boring and Milling Machine
- Qingdao China
- T/T
You May Like
-
TK68 Series Rotary Table Ram Type Deep Hole Horizontal CNC Boring Machine
-
TK6511 Table Type CNC Metal Boring Machine With Milling Head
-
TK65 Series China Manufacturer CNC Planer Type Boring Mills
-
Boring Mills Planner Type China Brand TK6813
-
TK6813 Heavy Duty Hole Boring Mill
-
TK6813 China Metalwork Horizontal CNC Boring And Milling Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Production Capacity | High | Place of Origin | Shandong, China | |
| Brand Name | CHTEM | Model Number | TK6813,TK6816 | |
| Voltage | 3 PHASE 380V 50HZ | Power(W) | 30 Kw | |
| Dimension(L*W*H) | Depend on Workpiece Size | Weight | Depend on Workpiece Size | |
| Certification | CE Certificate; ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Machine Parameters of Boring Milling Machine
| Spindle Diameter | 130mm | 160mm |
| Spindle Taper | ISO50 | ISO50 |
| Shank Specification | JT50 | JT50 |
| Pull Stud | BT-50 | BT-50 |
| Max. Spindle Speed | 2000r/min | 2-1500r/min |
| Cross Travel of Table | 2000-7000mm | 2000-7000mm |
| Longitude Travel of Column | 1500-4000mm | 1500-4000mm |
| Axial Travel of Ram | 800mm | 800mm |
| Axial Travel of Boring Spindle | 800mm | 800mm |
| Table Rotary Travel | 800mm | 800mm |
| X.Y Feed Rate | 1-3000mm/min | |
| W Feed Rate | 1-2000mm/min | |
| Z Feed Rate | 1-2000mmmin | |
| B Feed Rate | 0.003-1 r/min | |
| X.Y Rapid Movemet | 6000mm/min | |
| W.Z Rapid Movement | 5000mm/min | |
| V Rapid Movemen | 4000mm/min | |
| B Rapid Movement | 1.5r/min | |
| X.Y.Z. Positioning Accuracy | ± 0.025mm | |
| B Positioning Accuracy | 8” | |
| X.Y Repeatability | ± 0.02mm | |
| Z Repeatability | ± 0.02mm | |
| B Repeatability | 6” | |
| Motor Power | 22/30 KW | 30/37 KW |
| Table Size | 2000X2000mm | 2500x2000mm |
| Table Loading Capacity | 10-40 tons | 10-40 tons |
| Max. Spindle Torque | 3500Nm | 3500Nm |
| Max. Spindle Thrust | 25000N | 25000N |
| Table Rotary indexing (B axis) | 360° random | 360° random |
2. Boring Milling Machine Main Parts List
No | Name | Specification | Quantity | manufacture |
1 | Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2 | Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3 | Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4 | Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5 | Table bearing | NN3024 | 1set | FAG--Germany |
6 | Roll ball screw rod | 63/80, T5 | 5pcs | BLIS--Germany |
7 | CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8 | Feed servo motor | 6pcs | Siemens/Fanuc | |
9 | Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10 | Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11 | Main hydraulic units | Compass | Serial | Taiwan |
12 | Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13 | Electrical parts | Low voltage | Siemens, ABB, Schneider | |
14 | Oil coolant | CO-24 | 1set | LOM-Taiwan or Japan |
15 | Roller | RWB PR | 44pcs | IKO-Japan or INA-Germany |
16 | Transverse switch | LXZ | 5pcs | Omron-Japan |
17 | Seal unit | Serial | BUSAK+SHAMBAN-American |

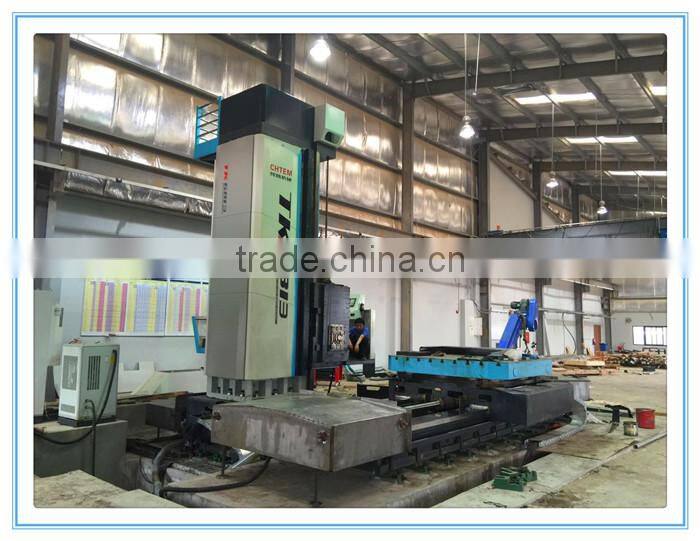

3. Pictures of Boring Milling Machine Parts
Fumigated wood cases& Steel wire reinforcement
General Introduction
Qingdao Huiteng Machinery Equipment Co., Ltd is one of the leading machinery group specializing in producing heavy duty machine tools, and supplying the latest boring, milling and turning technology to worldwide customers.We manufacture Floor type boring mills, Planer type boring mills, Table type boring mills, Gantry milling machine and Vertical turning lathe. In reliance of the advantage in product range, reliable quality, technical back-up and after-sales networks over 30 countries worldwide and CHTEM has become the well-known Chinese brand name overseas. Combined with outstanding productivity and service, our customers enjoy a significant market advantage. We believe in achieving excellence and that there is always room to improve. CHTEM consistently strides ahead of the pack in precision, innovation, service excellence, and a practical, sustainable approach to business.
We Are In Exhibitions And Our Sales References
Click Below Picture to See More of CHTEM Products
Contact Us
- Qingdao Huiteng Machinery Equipment Co., Ltd.
- Contact nameLena Li Chat Now
- Phone0086-0411-82767678
- AddressNo.398, Second Industrial Park, Qingdao China, Qingdao, Shandong
