TK6816 CNC Boring And Milling Machine Table Type Big Metal Borer
- 50 Set / Sets per Month
- Qingdao China
- T/T
You May Like
-
TK6513 HBM Machine of 4 Axis CNC Boring Machine Planer Type
-
TK6813 Boring Milling Machine with Automatic Boring Head Tool
-
TK 6513 Planer Type Horizontal Metal Bore Hole
-
TK6511 China Supplier CHTEM Made Heavy Planer Horizontal Metal Borer
-
TK6816 Metal Boring and Milling Machine Cheap Planer
-
TK6816 CNC Boring and Milling Machine of Metal Planer
Product Details
| Condition | New | CNC or Not | CNC | |
| Production Capacity | High | Place of Origin | Shandong, China | |
| Brand Name | CHTEM | Model Number | TK6816 | |
| Voltage | According to client site voltage | Power(W) | 37KW | |
| Dimension(L*W*H) | Table size: 2500X2000mm; Ram size: 480x520mm | Weight | Max. loading capacity: 40 tons | |
| Certification | CE Certificate; ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main Specifications Of TK6816 CNC Boring And Milling Machine Table Type Big Metal Borer
| Specifications | TK6813 |
| Spindle Diameter | 130mm |
| Spindle Taper | ISO50 |
| Shank Specification | JT50 |
| Pull Stud | BT-50 |
| Max. Spindle Speed | 2000r/min |
| Cross Travel of Table | 2000-7000mm |
| Longitude Travel of Column | 1500-4000mm |
| Axial Travel of Ram | 800mm |
| Axial Travel of Boring Spindle | 800mm |
| Table Rotary Travel | 800mm |
| X.Y Feed Rate | 1-3000mm/min |
| W Feed Rate | 1-2000mm/min |
| Z Feed Rate | 1-2000mmmin |
| B Feed Rate | 0.003-1 r/min |
| X.Y Rapid Movemet | 6000mm/min |
| W.Z Rapid Movement | 5000mm/min |
| V Rapid Movemen | 4000mm/min |
| B Rapid Movement | 1.5r/min |
| X.Y.Z. Positioning Accuracy | ± 0.025mm |
| B Positioning Accuracy | 8” |
| X.Y Repeatability | ± 0.02mm |
| Z Repeatability | ± 0.02mm |
| B Repeatability | 6” |
| Motor Power | 22/30 KW |
| Table Size | 2000X2000mm |
| Table Loading Capacity | 10-40 tons |
| Max. Spindle Torque | 3500Nm |
| Max. Spindle Thrust | 25000N |
| Table Rotary indexing (B axis) | 360° random |
Main Parts Of TK6816 CNC Boring And Milling Machine Table Type Big Metal Borer
No
| Name | Specification | Quantity | Manufacture |
1
| Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2
| Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3
| Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4
| Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5
| Table bearing | NN3024 | 1set | FAG--Germany |
6
| Roll ball screw rod | 63/80,T5 | 5pcs | BLIS--Germany |
7
| CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8
| Feed servo motor | 6pcs | Siemens/Fanuc | |
9
| Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10
| Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11
| Main hydraulic units | Compass | Serial | Taiwan |
12
| Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13
| Electrical parts | Low voltage | Siemens, ABB, Schneider | |
14
| Oil coolant | CO-24 | 1set | LOM-Taiwan or Japan |
| 15 | Roller | RWB | 44pcs | IKO-Japan or |
| PR | INA-Germany | |||
16
| Transverse switch | LXZ | 5pcs | Omron-Japan |
17
| Seal unit | Serial | BUSAK+SHAMBAN-American |

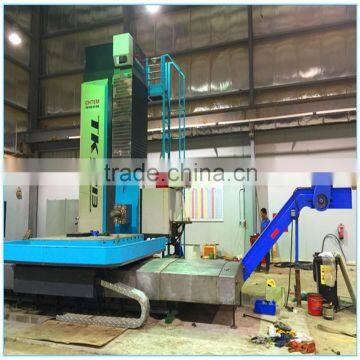

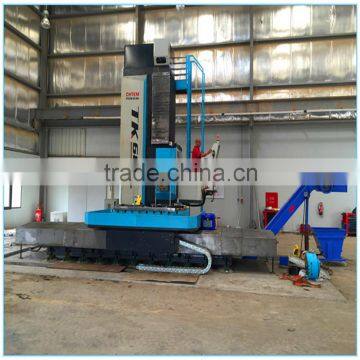

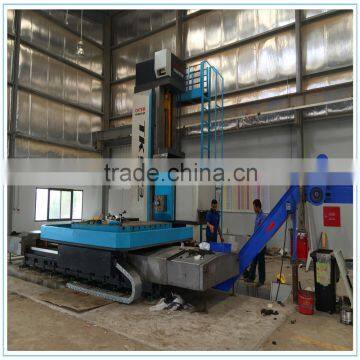

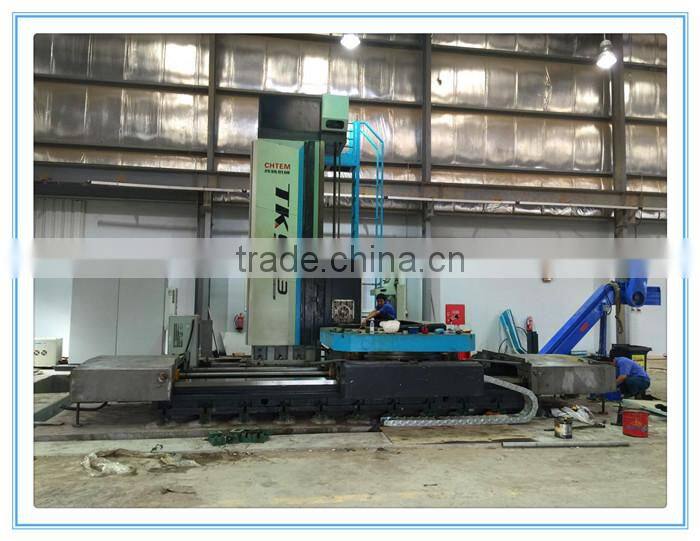

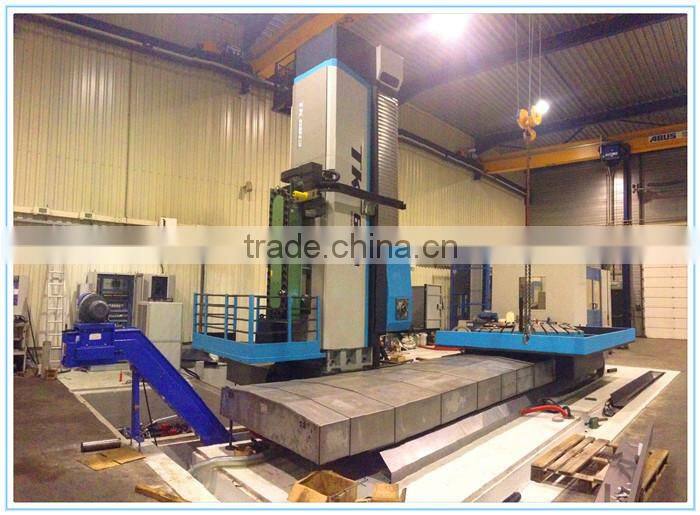

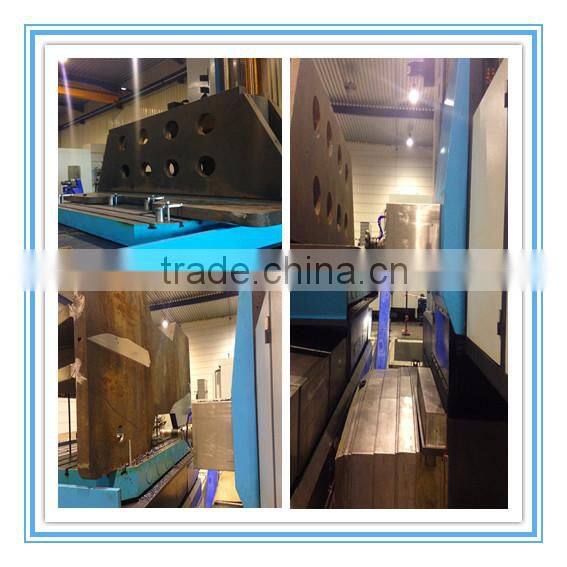

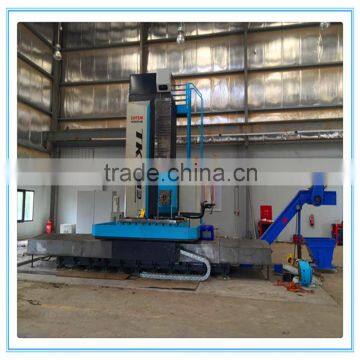

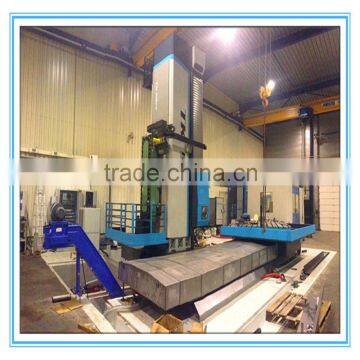

Detail Pictures Of TK6816 CNC Boring And Milling Machine Table Type Big Metal Borer
Every part of our machine are customized with a fumigated wood case and packed and sealed professionally and carefully. Then all the parts will be loaded into containers ready to be shipped.
General Introduction
Qingdao Huiteng Machinery Equipment Co., Ltd is one of the leading machinery group specializing in producing heavy duty machine tools, and supplying the latest boring, milling and turning technology to worldwide customers.We manufacture Floor type boring mills, Planer type boring mills, Table type boring mills, Gantry milling machine and vertical turning lathe. In reliance of the advantage in product range, reliable quality, technical back-up and after-sales networks over 30 countries worldwide and CHTEM has become the well-known Chinese brand name overseas. Combined with outstanding productivity and service, our customers enjoy a significant market advantage. We believe in achieving excellence and that there is always room to improve. CHTEM consistently strides ahead of the pack in precision, innovation, service excellence, and a practical, sustainable approach to business.
