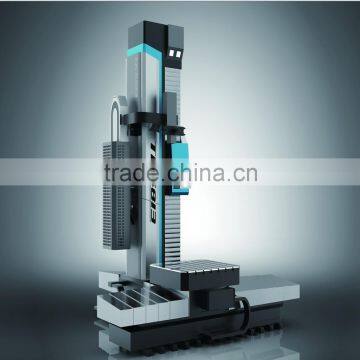

TK6513 China Made Heavy Duty Planer Type CNC Milling Machine
- Qingdao China
- T/T
You May Like
-
TK6816 Made In China Heavy Duty CNC Boring Machine
-
TK6816 Machine China Boring Machine Horizontal
-
TK6511 Planer Machine Boring CNC Horizontal
-
TK6816 Metal Boring Milling Machine With Boring CNC Machine Tool
-
TK68 Series Planer Heavy Duty CNC Bed Type Horizontal Metal Borer
-
TK68 Series Multifunctional Heavy Duty Metal CNC Boring Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | CHTEM | Model Number | TK6513 | |
| Type | Other, Horizontal, Planer Type CNC Milling Machine | CNC or Not | CNC | |
| Voltage | Optional | Power(W) | 22 KW | |
| Dimension(L*W*H) | Table size:2500x2000 | Weight | Table load: 10-40 tons, Table loading capability: 10-40 ton | |
| Certification | CE Certificate; ISO9001:2008 | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main Specification Of TK6513 China Made Heavy Duty Planer Type CNC Milling Machine
| Spindle diameter | 130mm |
| Spindle taper | ISO 50 |
| Shank specification | JT 50 |
| Pull stud | BT-50 |
| Max. spindle speed | 1500rpm |
| Cross travel of table | 3000mm |
| Vertical travel of spindle head | 2000mm |
| Longitudinal travel of column W | 1300mm |
| Longitudinal travel of column V | 1300mm |
| Axial travel of boring spindle V | 800mm |
| Axal travel of Ram | 700mm |
| Table rotary travel | 360° |
Feed range of axil X,Y | 1--3000mm/min |
| Rapid movemet of axis X,Y | 6000mm/min |
Rapid movement of axis W Z | 5000mm/min |
| Rapid movement of V | 4000mm/min |
| Rapid movement of B | 1.5r/min |
| Positioning accuracy of X Y Z | ±0.025 mm |
| Positioning accuracy of B | 8" |
Repeatbility of X Y | ±0.02mm |
| Repeatability of W | ±0.02mm |
| Repeatability of B | 6" |
| Motor Power | 22/30 Kw |
| Table size | 2000x3000mm |
| Table loading capability | 20ton |
| Max spindle torque | 2500Nm |
| Max spindle thrust | 20000N |
Main purchase parts Of TK6513 China Made Heavy Duty Planer Type CNC Milling Machine
No | Name | Specification | Quantity | manufacture |
1 | Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2 | Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3 | Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4 | Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5 | Table bearing | NN3024 | 1set | FAG--Germany |
6 | Roll ball screw rod | 63/80, T5 | 5pcs | BLIS--Germany |
7 | CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8 | Feed servo motor | 6pcs | Siemens/Fanuc | |
9 | Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10 | Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11 | Main hydraulic units | Compass | Serial | Taiwan |
12 | Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13 | Electrical parts | Low voltage | Siemens, ABB, Schneider | |
14 | Oil coolant | CO-24 | 1set | LOM-Taiwan or Japan |
15 | Roller | RWB PR | 44pcs | IKO-Japan or INA-Germany |
16 | Transverse switch | LXZ | 5pcs | Omron-Japan |
17 | Seal unit | Serial | BUSAK+SHAMBAN-American |
Pictures of Main Parts of the Machine
Fumigated wood cases& Steel wire reinforcement
General Introduction
Qingdao Huiteng Machinery Equipment Co., Ltd is one of the leading machinery group specializing in
producing heavy duty machine tools, and supplying the latest boring, milling and turning technology to
worldwide customers.We manufacture Floor type boring mills, Planer type boring mills, Table type boring
mills, Gantry milling machine and Vertical turning lathe. In reliance of the advantage in product range,
reliable quality, technical back-up and after-sales networks over 30 countries worldwide and CHTEM has
become the well-known Chinese brand name overseas. Combined with outstanding productivity and
service, our customers enjoy a significant market advantage. We believe in achieving excellence and that
there is always room to improve. CHTEM consistently strides ahead of the pack in precision, innovation,
service excellence, and a practical, sustainable approach to business.
