Latest Rubber Vulcanizing Oven
- QINGDAO PORT
You May Like
-
Made in China the Newest Rubber Mold Vulcanizing Press Rubber Vulcanizer
-
Best Price Popular Frame Automatic Hydraulic Press
-
Gold Supplier Frame Type Platen Vulcanization Press
-
China Supplier Rubber Vulcanizing Machine
-
Made In China Hydraulic Press For Rubber Vulcanization
-
New Technology Rubber Tile Hot Plate Vulcanization Press
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zh'iHong | Model Number | DYG-A | |
| Voltage | 220V/380V | Power(W) | 100KW | |
| Dimension(L*W*H) | 2700*2170*1770mm-4000*3000*2600mm | Weight | 600kg | |
| Certification | CE ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

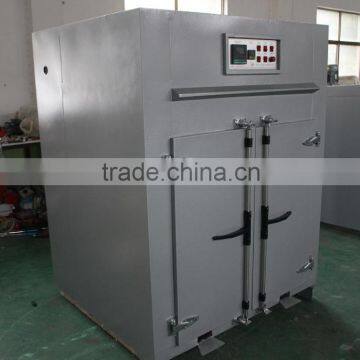

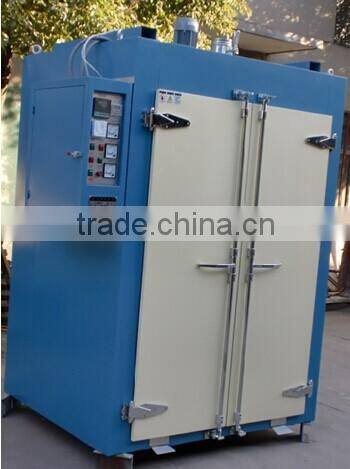

silicone rubber vulcanization oven/ silicone rubber vulcanizing oven
Introduction of the machine structure.
DYG series special silicone rubber industry is the role of secondary vulcanization box of silicone rubber products in an environment of high temperature secondary sulfide, the sulfide in the process of sulfide has a pungent odor, using exhaust fan to exclude outside the workshop at the top of the strong, avoiding the accumulation, in the formation of crystals attached on the inner wall of the box, and the sealing strip.
Technical parameters:
Model | voltage | Power KW | Working temperature scope(℃) | Uniform temperature (℃) | Motor powerW | Working room size (mm) | Overall size (mm) |
H×W×D | H×W×D | ||||||
DYG-A | 380V | 9 | room~300 | ±2.5 | 180 | 1000×800×800 | 1558×1410×1050 |
DYG-B | 380V | 12 | room~300 | ±2.5 | 370 | 1000×1000×1000 | 1780×1360×1250 |
DYG-C | 380V | 15 | room~300 | ±2.5 | 750 | 1200×1000×1200 | 1980×1360×1450 |
DYG-D | 380V | 18 | room~300 | ±2.5 | 750 | 1500×1200×1000 | 2180×1560×1250 |
DYG-E | 380V | 21 | room~300 | ±2.5 | 1100 | 1500×1200×1200 | 2180×1560×1450 |
DYG-F | 380V | 24 | room~300 | ±2.5 | 1100 | 1500×1200×1500 | 2180×1560×1750 |
