rubber heat press machine
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XLB-D1000X550x1 | |
| Voltage | 220V-460V | Power(W) | 3kw | |
| Dimension(L*W*H) | 1850x550x1950mm | Weight | 5500kg | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
qingdao fram rubber press machine
press hydraulic machine
rubber vulcanizing press machine
Technical specifications:

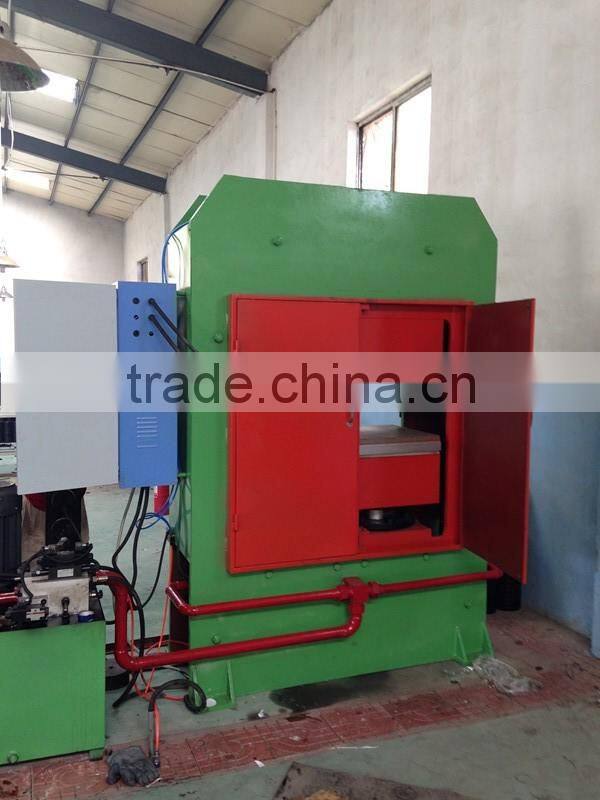

frame type vulcanizing press
Enclosed insulation structure can save energy.
model: XLB-D1000x550x1
total pressure:200T
plate size:1000x550mm
working layer: 2 plates 1 opening
heating type: electric heating
control type: automatic PLC control
daylight opening:400mm
dia of piston: 285mm x 2pcs
stroke of piston:400mm
main motor power: 3kw
plate pressure: 3.6Mpa
structure type: frame
overall dimension:1850x550x1950mm(LxWxH)
weight:5500kg
about PLC function:
PLC controller and operator interface, and Schneider electric elements, have auto/manual selector switch, have auto. mould closing, mould opening, exhaust, auto pressure compensation, vulcanization timer, delay warning, etc.
Other technical parameters for your reference:
Four pillar (column) type vulcanizing press
Type | XLB-DQ 400×400×2 | XLB-DQ 400×400×2 | XLB-DQ 400×400×2 | XLB-DQ 450×450×2 | XLB-DQ 450×450×2 | XLB-DQ 600×600×2 | XLB-DQ 600×600×2 | XLB-DQ 600×600×2 | XLB-DQ 750×850×2(4) |
Total pressure(MN) | 0.25 | 0.50 | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.60 |
Plate size(mm) | 400×400 | 400×400 | 400×400 | 450×450 | 450×450 | 600×600 | 600×600 | 600×600 | 750×850 |
Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
Working layer number | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2(4) |
Piston stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250(500) |
Plate pressure(kg/cm*cm) | 20 | 31 | 31 | 49 | 49 | 28 | 28 | 28 | 25 |
Main motor power(KW) | 3 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
Overall dimension(L×W×H)(mm) | 1300×800×1500 | 2400×550×1500 | 2400×550×1500 | 1500×600×1500 | 2450×600×1550 | 1600×750×1550 | 2650×750×1550 | 1410×680×1750 | 1900×950×2028 |
Weight(kg) | 1150 | 1300 | 3200 | 2100 | 3600 | 2500 | 4600 | 3500 |
6500(7500) |
frame type vulcanizing press
Type | XLB-DQ1200× 1200× 2 | XLB-DQ1300× 2000× 1 | XLB-Q1200× 2500× 1 | XLB-Q1500× 2500× 1 | XLB-Q2000× 3000× 1 | XLB-Q1400× 5700× 1 |
Total pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
Plate size(mm) | 1200× 1200 | 1300× 2000 | 1200× 2500 | 1500× 2500 | 2000× 3000 | 1400× 5700 |
Plate clearance(mm) | 200 | 400 | 400 | 400 | 400 | 400 |
Working layer number | 2 | 1 | 1 | 1 | 1 | 1 |
Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
Plate pressure(MPa) | 2.2 | 2.15 | 2.5 | 2.66 | 3.0 | 3.5 |
Main motor power(KW) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
Overall dimension(L× W× H)(mm) | 1685× 1320× 2450 | 2000× 1860× 2500 | 2560× 1700× 2780 | 2810× 1550× 3325 | 2900× 3200× 2860 | 2400× 5800× 3600 |
Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
We can disign and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.
If you are interested in our more products, please check our website:
http://zhihongrubbermachinery.en.china.cn
Thank you
