High Quality Frame Hydraulic Press Rubber Machine 100Ton
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XLB-DQ1500X2000 | |
| Voltage | 220V-460V | Power(W) | 43.5kw | |
| Dimension(L*W*H) | 2400x1500x3600mm | Weight | 29700kg | |
| Certification | ISO9001 CE, ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Frame hydraulic press rubber machine 100Ton
rubber molding press 200Ton
rubber hydraulic press 600ton
1. Vulcanizing Press description
Press machine types:
Column structure, frame structure, slabside structure, jaw structure
Pressure from 5 ton to 8000 tons
Heating plate Size from 100mm to 20000mm
Heating type: electric heating, oil heating, steam heating
Control type: manual operation or PLC Control+Touch screen
2.Technical parameters:

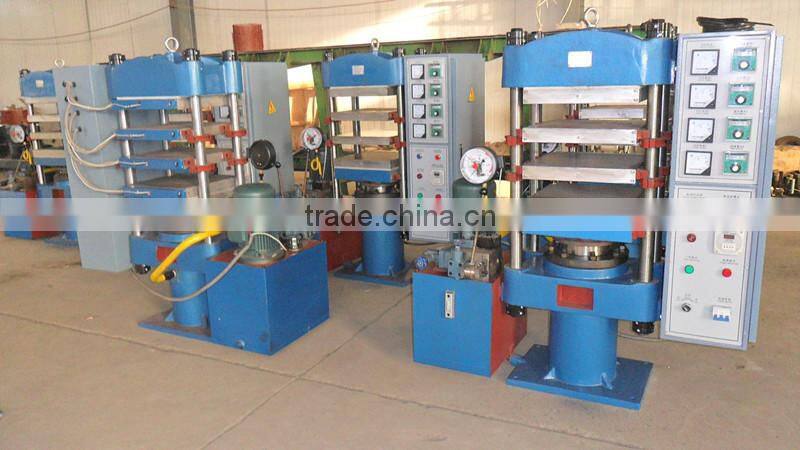

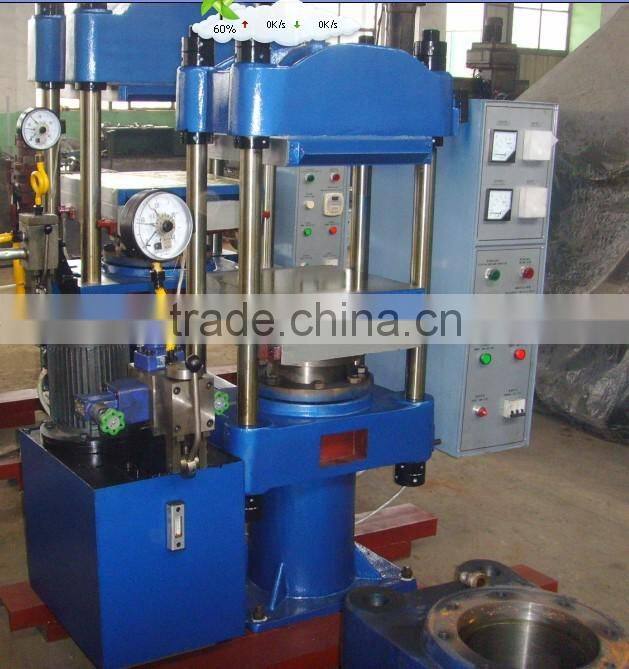

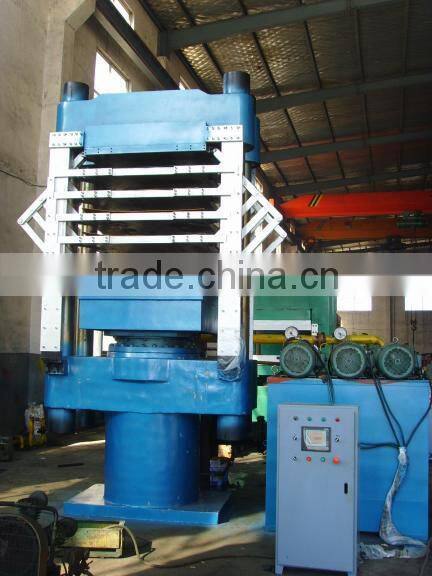

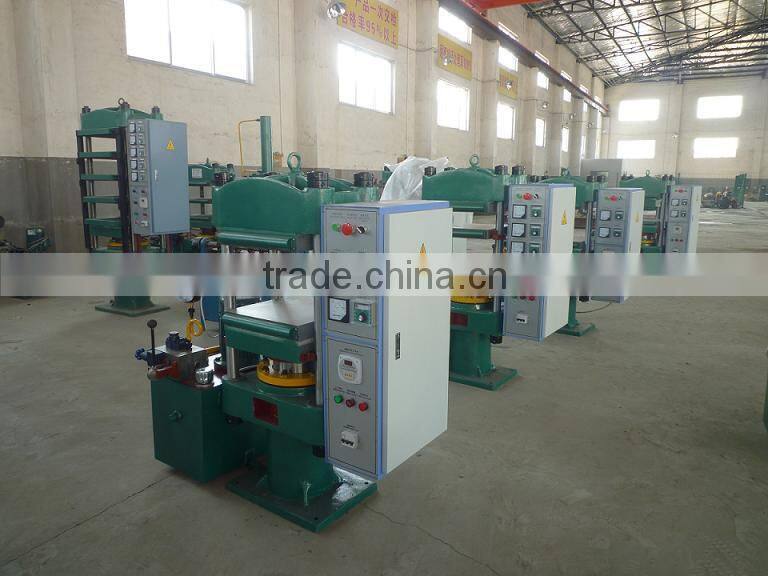

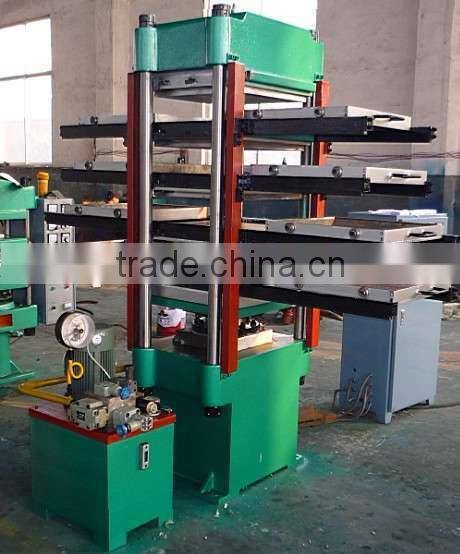

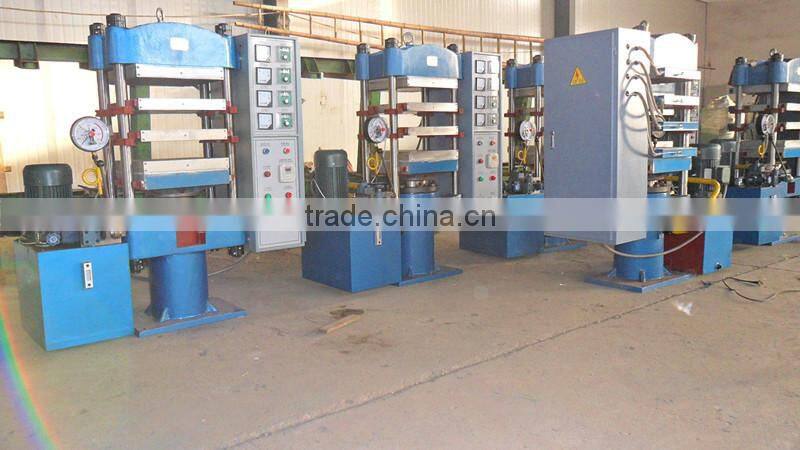

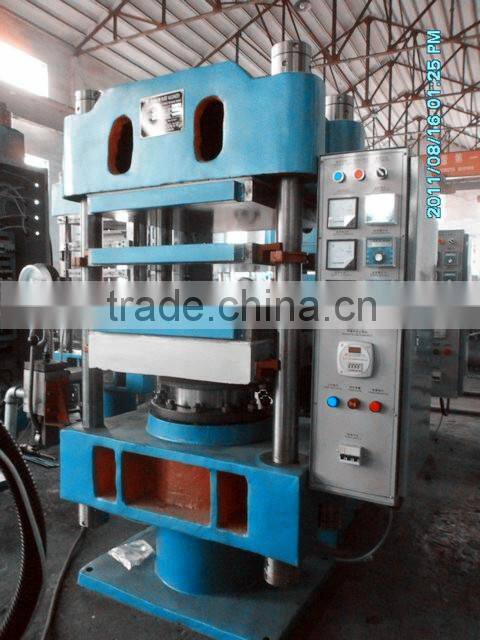

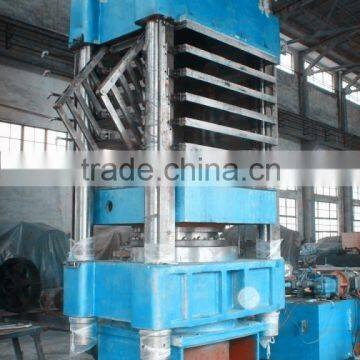

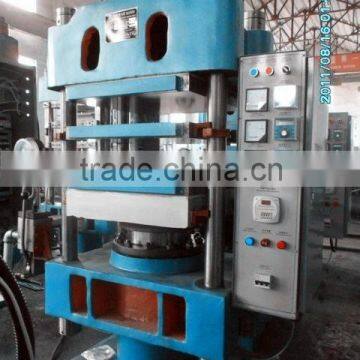

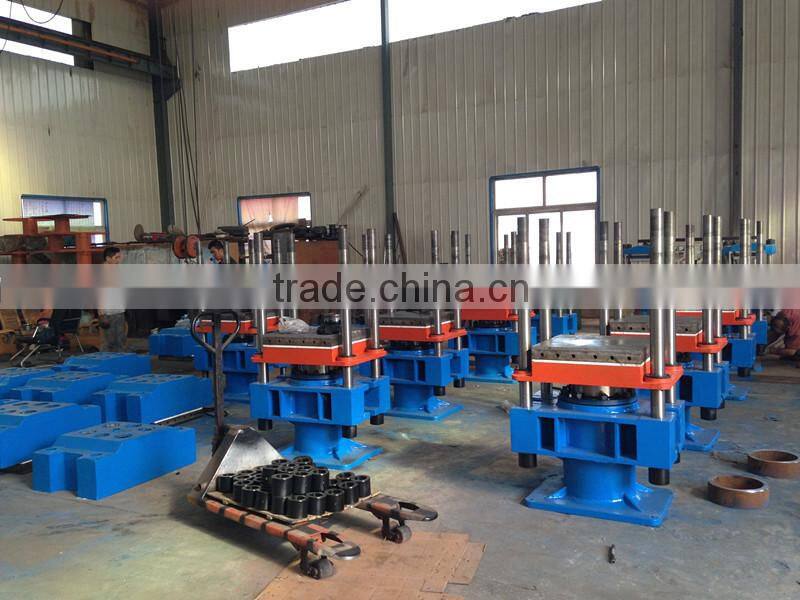

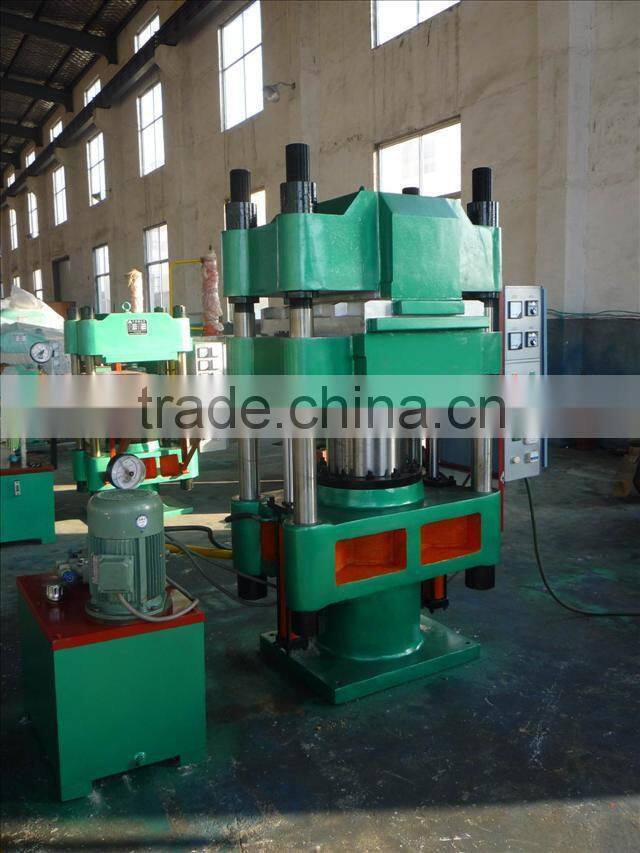

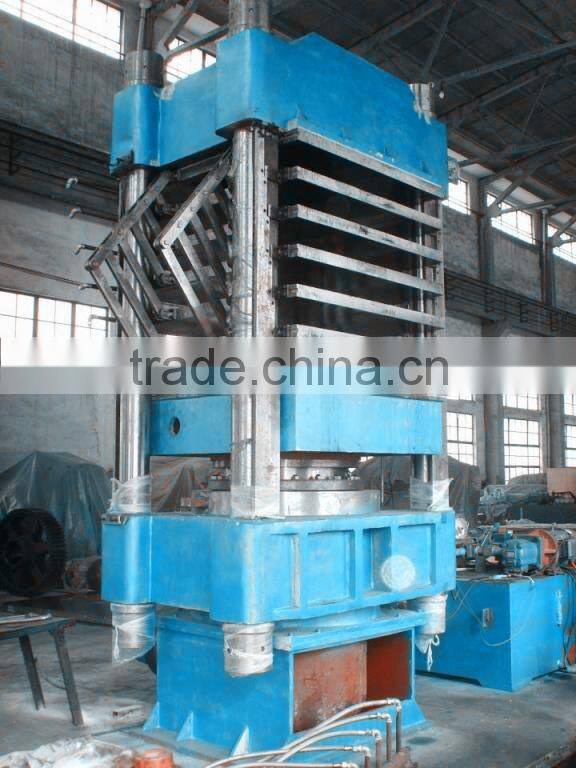

Four pillar (column) type vulcanizing press
Type | XLB-DQ 400×400×2 | XLB-DQ 400×400×2 | XLB-DQ 400×400×2 | XLB-DQ 450×450×2 | XLB-DQ 450×450×2 | XLB-DQ 600×600×2 | XLB-DQ 600×600×2 | XLB-DQ 600×600×2 | XLB-DQ 750×850×2(4) |
Total pressure(MN) | 0.25 | 0.50 | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.60 |
Plate size(mm) | 400×400 | 400×400 | 400×400 | 450×450 | 450×450 | 600×600 | 600×600 | 600×600 | 750×850 |
Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
Working layer number | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2(4) |
Piston stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250(500) |
Plate pressure(kg/cm*cm) | 20 | 31 | 31 | 49 | 49 | 28 | 28 | 28 | 25 |
Main motor power(KW) | 3 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
Overall dimension(L×W×H)(mm) | 1300×800×1500 | 2400×550×1500 | 2400×550×1500 | 1500×600×1500 | 2450×600×1550 | 1600×750×1550 | 2650×750×1550 | 1410×680×1750 | 1900×950×2028 |
Weight(kg) | 1150 | 1300 | 3200 | 2100 | 3600 | 2500 | 4600 | 3500 |
6500(7500) |

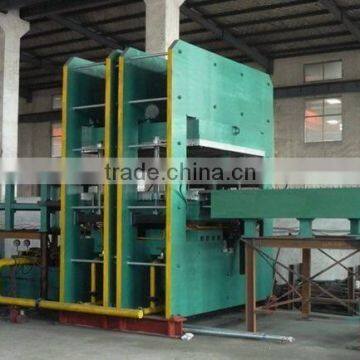

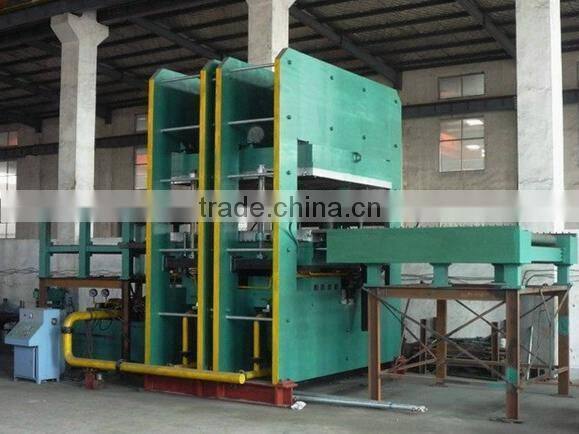

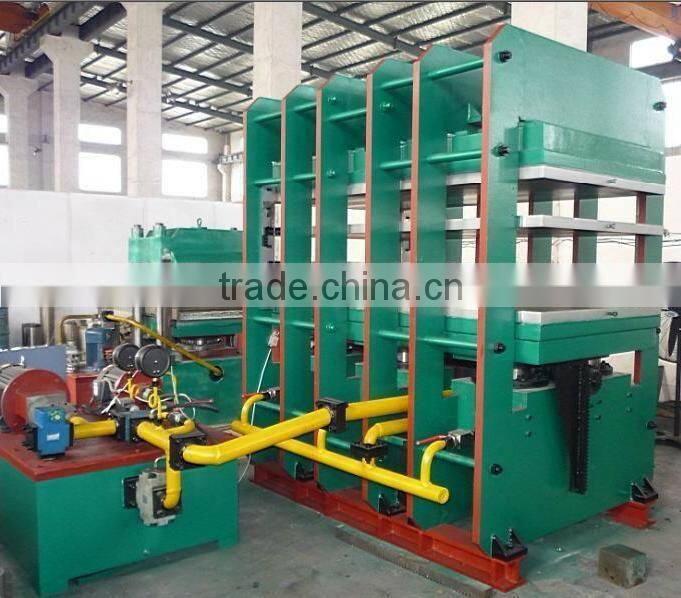

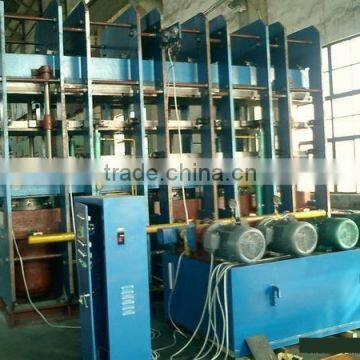

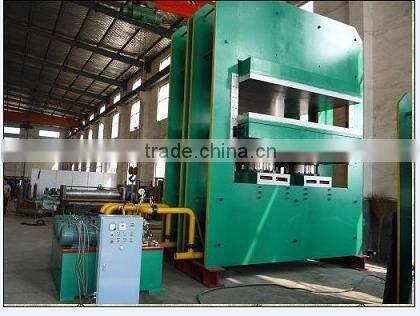

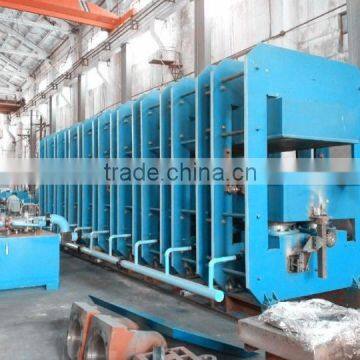

frame type vulcanizing press
Type | XLB-DQ1200× 1200× 2 | XLB-DQ1300× 2000× 1 | XLB-Q1200× 2500× 1 | XLB-Q1500× 2500× 1 | XLB-Q2000× 3000× 1 | XLB-Q1400× 5700× 1 |
Total pressure(MN) | 315t | 560t | 750t | 1000t | 1800t | 2800t |
Plate size(mm) | 1200× 1200 | 1300× 2000 | 1200× 2500 | 1500× 2500 | 2000× 3000 | 1400× 5700 |
Plate clearance(mm) | 200 | 400 | 400 | 400 | 400 | 400 |
Working layer number | 2 | 1 | 1 | 1 | 1 | 1 |
Piston stroke(mm) | 400 | 400 | 400 | 400 | 400 | 400 |
Plate pressure(MPa) | 2.2 | 2.15 | 2.5 | 2.66 | 3.0 | 3.5 |
Main motor power(KW) | 3 | 8 | 9.5 | 11 | 26 | 43.5 |
Overall dimension(L× W× H)(mm) | 1685× 1320× 2450 | 2000× 1860× 2500 | 2560× 1700× 2780 | 2810× 1550× 3325 | 2900× 3200× 2860 | 2400× 5800× 3600 |
Weight(kg) | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
We can disign and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.
PLC Control+Touch screen
