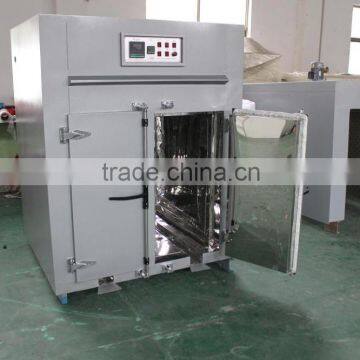

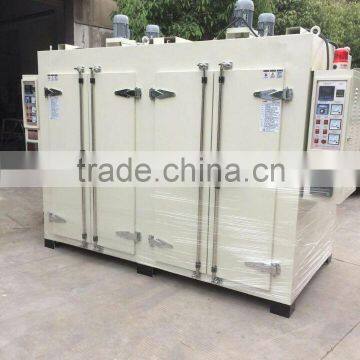

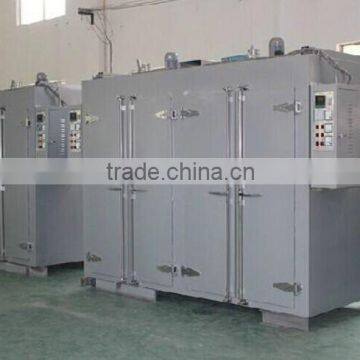

2016 the Newest Economic Silicone Rubber Curing Oven
- QingDao port
You May Like
-
The Newest Rubber Machine Silicone Rubber Vulcanizing Oven
-
Silicone Rubber Vulcanizing Machine Curing Oven
-
Competitive Price High Quality Rubber Nipple Injection Press Machine
-
High Quality Rubber Injection Molding Press Machinery
-
Full Automatic China Supplier Rubber Injection Molding Machine
-
Chinese Best Supplier Silicone Rubber Curing Oven Hot Sale
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | DYG--A | |
| Voltage | 220-460v | Power(W) | 100kw | |
| Dimension(L*W*H) | 2700*2170*1770mm-4000*3000*2600mm | Weight | 600kg | |
| Certification | ISO9001 CE | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Chinese supplier rubber curing oven hot sale
Introduction of the machine structure.
DYG series special silicone rubber industry is the role of secondary vulcanization box of silicone rubber products in an environment of high temperature secondary sulfide, the sulfide in the process of sulfide has a pungent odor, using exhaust fan to exclude outside the workshop at the top of the strong, avoiding the accumulation, in the formation of crystals attached on the inner wall of the box, and the sealing strip.
Technical parameters:
Model | voltage | Power KW | Working temperature scope(℃) | Uniform temperature (℃) | Motor powerW | Working room size (mm) | Overall size (mm) |
H×W×D | H×W×D | ||||||
DYG-A | 380V | 9 | room~300 | ±2.5 | 180 | 1000×800×800 | 1558×1410×1050 |
DYG-B | 380V | 12 | room~300 | ±2.5 | 370 | 1000×1000×1000 | 1780×1360×1250 |
DYG-C | 380V | 15 | room~300 | ±2.5 | 750 | 1200×1000×1200 | 1980×1360×1450 |
DYG-D | 380V | 18 | room~300 | ±2.5 | 750 | 1500×1200×1000 | 2180×1560×1250 |
DYG-E | 380V | 21 | room~300 | ±2.5 | 1100 | 1500×1200×1200 | 2180×1560×1450 |
DYG-F | 380V | 24 | room~300 | ±2.5 | 1100 | 1500×1200×1500 | 2180×1560×1750 |
