Steel Floor Deck Roll Cold Roll Forming Machine With Auto Stacker
- Shanghai or Ningbo
- T/T
You May Like
-
Reliable Rolling Shutter Spring Cold Rolling Forming Machine
-
Roller Shutter Door Cold Rolling Forming Machine the Latest Machine
-
Standard Quality Deck Flooring Roll Forming Machine Price Made in China
-
Standard Quality Steel Cold Deck Flooring Roll Forming Machine Price
-
Metal Floor Deck Plate Roll Forming Machine
-
Floor Deck Plate Roll Forming Machine,floor Deck Profiling Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 24-27kw | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | as the coustomer requirement | |
| Power(W) | 7.5kw | Voltage | 3kw | |
| Dimension(L*W*H) | 18500*5000*14000mm | Weight | 6000-8000kg | |
| Certification | CE | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
specialied in making Steel Floor Deck Roll Forming Machine, we can design all kinds of pattern
Introduction
Steel floor deck sheet is rolled by WLFD series steel floor decking roll forming machine, the finished products are of many features, such as simple shape, large wave height, high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site. In the high-storey building, it not only can save steel mould board, but also reduce the bearing of the floor; on basis of equal capacity, it reduces the steel amount of engineering useage, so that it saves cost of investment.

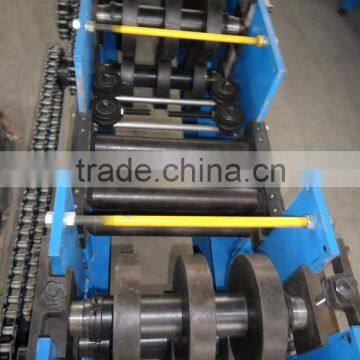

WLFD series steel floor deck roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as WLFD76-305-915, WLFD51-240-720, and etc. We can design different kinds of profile and fittings for downpipe machine, as per customers' requirements.
Floor Decking Machine Features:
1) Material Spec: | Galvanized steel sheet |
2) Thickness of Coil Sheet: | 0.8 --1.2 mm |
3)Main Motor Power: | 18.5kw |
4)Forming Speed: | 10--12m/min |
5)Hydraulic Station Power: | 3kw |
6)Quantity of Stands: | About 24 groups |
7) Hydraulic Pressure: | 10~12Mpa |
8)Controlling System: | PLC |
9) Index Error of Length: | 10m±2mm |
10)Total Weight: | About 1800kg |
11) Voltage: | 380V 3 phase 60Hz or at buyer’s requirement |
1)Passive Uncoiler: | 1pcs |
2)Embossing Equipment: | 1set |
3)Adjustable Device: | 1set |
4)Rolling Forming Equipment: | 1set |
5)Main Body: | 1set |
6)Post-cut equipment: | 1set |
7)Hydraulic station: | 1pcs |
8)PLC controlling desk: | 1 pcs |
9)Supporter table: | 2 pcs |
10)Security cover (optional): | 1set |
