Home > Products > NC Servo feeder straightener and uncoiler 3 in 1 > Press Peripheral NC Uncoiler, Feeder 3 in 1 for Aluminum,steel,metal
Press Peripheral NC Uncoiler, Feeder 3 in 1 for Aluminum,steel,metal
- SHENZHEN SHEKOU
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YOUYI | |
| Model Number | NCSF series | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

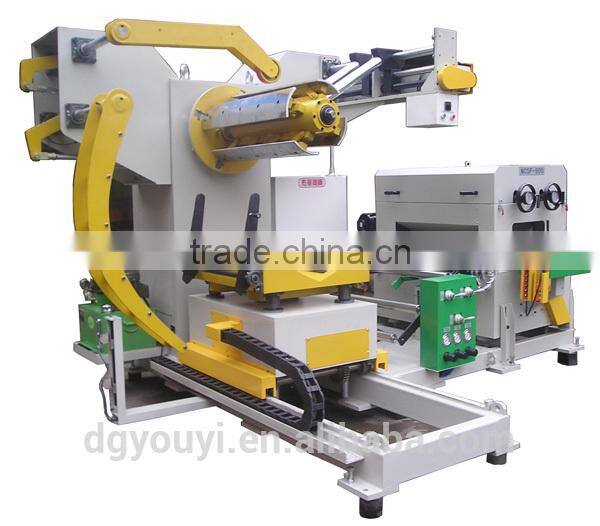

Press peripheral NC Uncoiler, Feeder 3 in 1 for aluminum,steel,metal
technical parameters
Model | NCSF-300 | NCSF-400 | NCSF-500 | NCSF-600 | MCSF-800 |
Material Thickness | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm | 0.3-3.2mm |
Material Width | 50-300mm | 50-400mm | 50-500mm | 50-600mm | 50-800mm |
Feeding rolls | 2 | 2 | 2 | 2 | 2 |
Straightening rolls | Up5/down4 | Up5 /down4 | Up5/down4 | Up5 /down4 | Up5/down4 |
Feeding speed | 16m/min | 16m/min | 16m/min | 16m/min | 16m/min |
Coil weight | 2T | 2T | 2T | 2T | 2T |
Coil I.D. | 450-530mm | 450-530mm | 450-530mm | 450-530mm | 450-530mm |
Coil O.D. | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
Servo Motor | AC1.8kw | AC2.9kw | AC2.9kw | AC2.9kw | AC4.4kw |
Uncoiler Motor | AC0.75kw | AC0.75kw | AC1.5kw | AC1.5kw | AC2.2kw |
Uncoiler Expanding | Hydraulic/ hand | Hydraulic/ hand | Hydraulic | Hydraulic | Hydraulic |
Air power | 5 kg/cm2 | 5 kg/cm2 | 5 kg/cm2 | 5 kg/cm2 | 5 kg/cm2 |
Feeding height | Customer request ± 100 mm | ||||
straightening capacity
Model/Coil Width/Coil Thickness | 0.3 | 1.0 | 1.3 | 1.6 | 2.0 | 2.3 | 2.5 | 2.8 | 3.2 |
NCSF-300 | 300 | 250 | |||||||
NCSF-400 | 400 | 250 | |||||||
NCSF-500 | 500 | 250 | |||||||
NCSF-600 | 600 | 230 | |||||||
NCSF-800 | 800 | 180 | |||||||
Features |
Save space and increase efficiency. |
Easy to operate. |
It can be customized. |
Suit for wide and long material. |

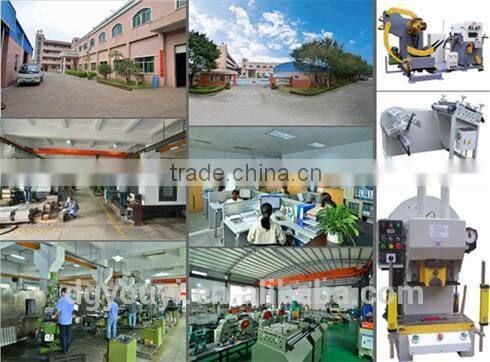

WHY US:
More than 15 years' experience of designing, manufacturing
Our products are ISO:9001 certified.
First-class products,first-class after-sale service.
