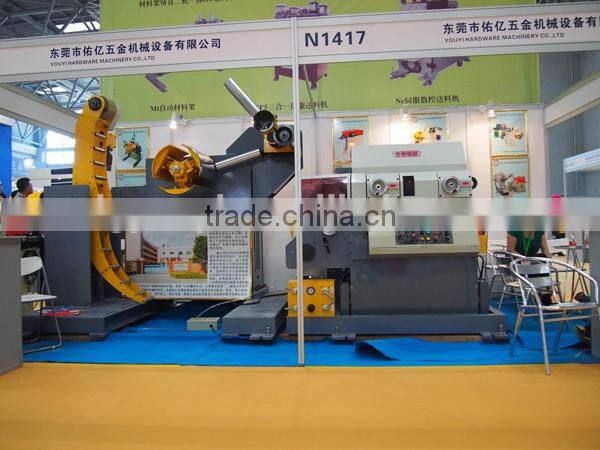

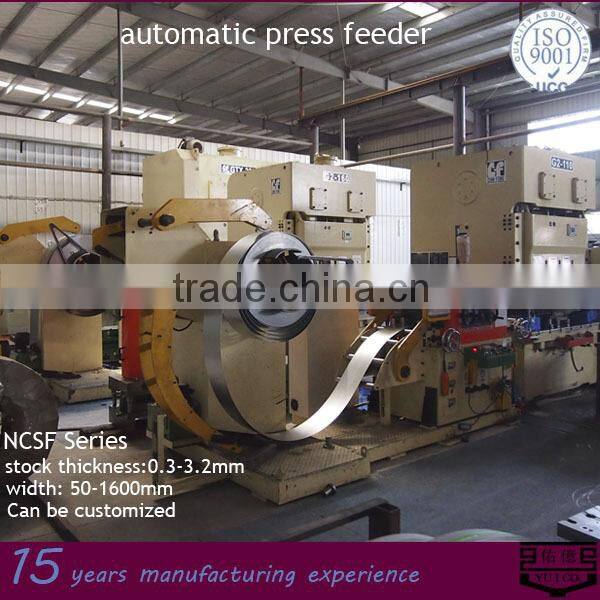

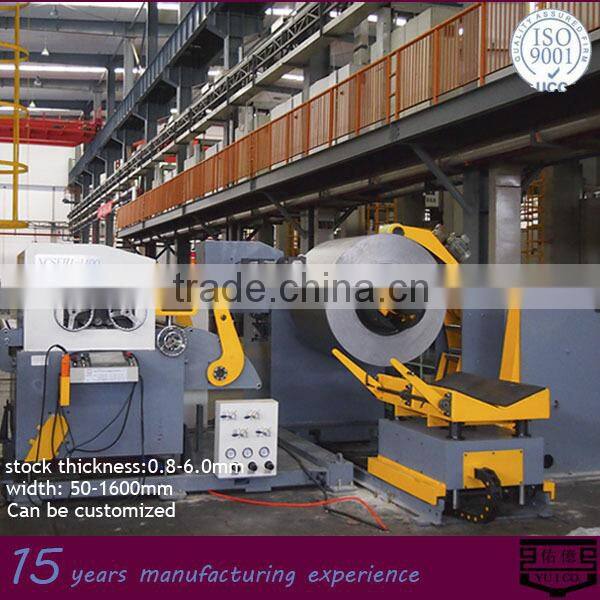

NCSF Automatic Feeder Line for Sheet Metal

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHENZHEN SHEKOU

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	YOUYI
Model Number	NCSF	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Automatic feeder line for metal sheet

Features:
1.This machine combines straightening machine and feeder machine, which greatly reduces feeding and straightening error while creating superior accuracy.

2.The installation is convenient and never occupy place .
3.Automatic hydraulic exansion is available for increasing working efficiency .

Standard Configuration:

Electirc Eye Loop Control system

Outgoing catenary to assist and support the material

Hold Down Arms Device

Pass line can ba adjusted by advanced worn jacks gear.

Adjusted by hand wheel

The uncoiler contains the butterfly brakes air compressor

Uncoiler-Inverter Device

Threading Tables Device

Feeding and straightening roller with a hard chrome plated

Optional devices:

Die-high Electric Conditioning

Hydraulic Material Feed-In Cart

Technical Parameters :

Model	NCSF2-400	NCSF2-500	NCSF2-600	NCSF2-800
Material Thickness	1-6mm	1-6mm	1-6mm	1-6mm
Material Width	70-400mm	70-500mm	70-600mm	70-800mm
Feed Roller	2	2	2	2
Straighten Rollers	Up 4/Down 3	Up 4/Down 3	Up 4/Down 3	Up 4/Down 3
Production Speed	18m/min	18m/min	18m/min	18m/min
Coil Weight	5T	5T	5T	7T
Coil I.D.	Φ510mm	Φ510mm	Φ510mm	Φ510mm
Coil O.D.	Φ1600mm	Φ1600mm	Φ1600mm	Φ1600mm
Feed Drive Servo Motor	AC3.5Kw	AC3.5Kw	AC5Kw	AC5Kw
Uncoil Motor	AC2Kw	AC2Kw	AC3Kw	AC3Kw
Uncoiler Expansion	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Air Pressure	5Kg	5Kg	5Kg	5Kg
Feed Height	1000~1200mm	1000~1200mm	1000~1200mm	1000~1200mm
Dimensions(LWH)mm	38002150800	380022501800	380023501800	380025501800
