3-IN-1 NC Servo Sheet Metal Feeding Straightening and Uncoiling Machine Made in China
- SHENZHEN SHEKOU
You May Like
-
3-In-1 NC Servo Feeder Straightener and Uncoiler Machine for Thin Plate (China Manufacturer)
-
High Precision NC Servo Feeder Straightener and Uncoiler Machine for Thin Plate (China Manufacturer)
-
3-IN-1 Automatic Sheet Metal Straightening , Uncoiling and Feeding Machine
-
Hot Precision NC Servo Rolling Plate Leveling Uncoiling and Feeding Machine(China Manufacturer)
-
High Precision 3-In-1automatic NC Servo Feeder Straightener and Uncoiler Machine for Middle Plate (China Manufacturer)
-
High Quality Factory Selling ! 3-In-1 NC Servo Feeding Decoiling and Straightening Machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | YOUYI | |
| Model Number | NCSFH Series | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

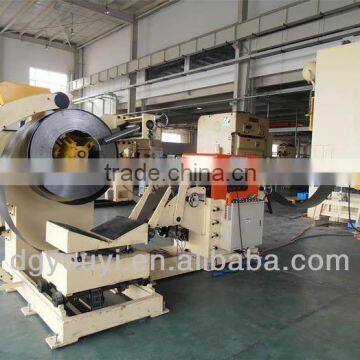

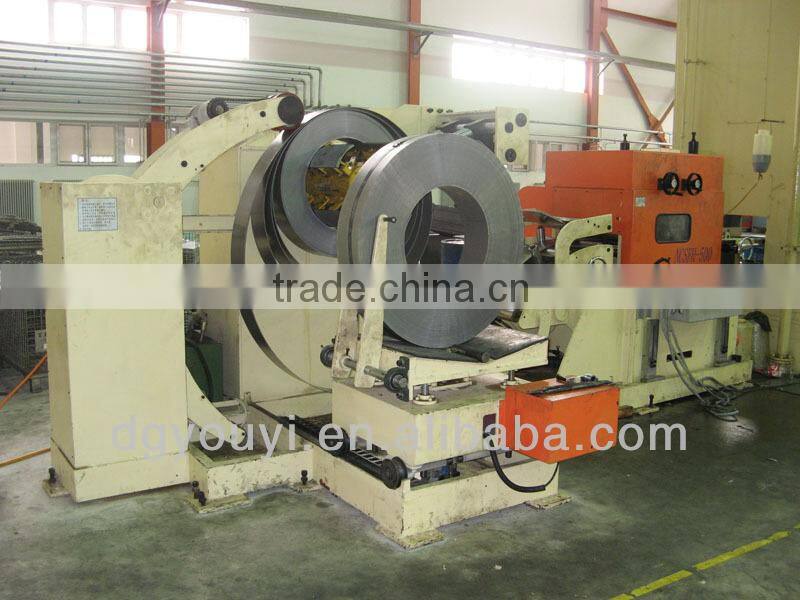

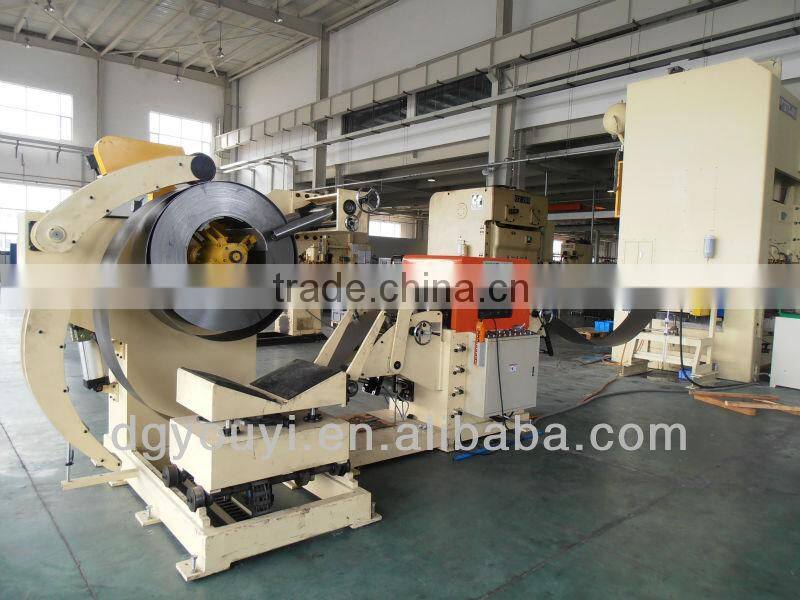

3 in 1 NC Servo sheet metal feeding straightening and uncoiling machine made in China
Features:
1.This machine combines uncoiler, straightening machine and feeding machine, which greatly reduces feeding and straightening error while creating superior accuracy. The installation is convenient and never occupy the place .
2. Automatic hydraulic exansion is available for increasing working efficiency ,material infeed
cart is optional.
Standard Configuration:
Electirc Eye Loop Control system
Outgoing catenary to assist and support the material
Hold Down Arms Device
Pass line can ba adjusted by advanced worn jacks gear.
Adjusted by hand wheel
The uncoiler contains the butterfly brakes air compressor
Uncoiler-Inverter Device
Threading Tables Device
Feeding and straightening roller with a hard chrome plated
Optional devices:
Die-high Electric Conditioning
Hydraulic Material Feed-In Cart
Technical Parameters :
Model | NCSFH-400 | NCSFH-500 | NCSFH-600 | NCSFH-800 |
Material Thickness | 1-6mm | 1-6mm | 1-6mm | 1-6mm |
Material Width | 70-400mm | 70-500mm | 70-600mm | 70-800mm |
Feed Roller | 2 | 2 | 2 | 2 |
Straighten Rollers | Up 4/Down 3 | Up 4/Down 3 | Up 4/Down 3 | Up 4/Down 3 |
Production Speed | 18m/min | 18m/min | 18m/min | 18m/min |
Coil Weight | 5T | 5T | 5T | 7T |
Coil I.D. | Φ510mm | Φ510mm | Φ510mm | Φ510mm |
Coil O.D. | Φ1600mm | Φ1600mm | Φ1600mm | Φ1600mm |
Feed Drive Servo Motor | AC3.5Kw | AC3.5Kw | AC5Kw | AC5Kw |
Uncoil Motor | AC2Kw | AC2Kw | AC3Kw | AC3Kw |
Uncoiler Expansion | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Air Pressure | 5Kg | 5Kg | 5Kg | 5Kg |
Feed Height | 1000~1200mm | 1000~1200mm | 1000~1200mm | 1000~1200mm |
Dimensions(L×W×H) | 3800×2150×800 | 3800×2250×1800 | 3800×2350×1800 | 3800×2550×1800 |
