Home > Products > feeder machine > Youyi feeder machine with taiwan technology

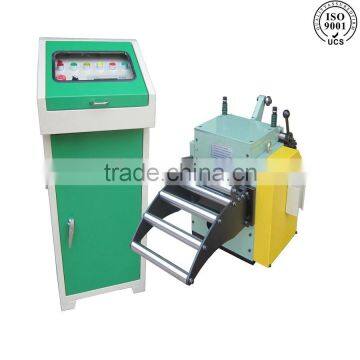

Youyi feeder machine with taiwan technology
Negotiable
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- shenzhen
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YOUYI | |
| Model Number | NCF-700 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Youyi feeder machine with taiwan technology
Product Description
| High-precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system, | ||||
| So that the precision can maintain within_0.03mm. | ||||
| Phase-style feeding function: it can input 20 groups fo different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products(option.) | ||||
| Manual model: it can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy. | ||||
| High-efficiency release device: it can set up release angle quickly, only cam single of and adjusted feed thickness can done. | ||||
| Feeding length setting: input feed length on the controller panel directly.' | ||||
| Feeding unit: The roll adopts middle-hollow style, being light and with low inertia for electroplate. The surface hardness HRC is 60½ d chrome plated. |
| Model | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 | |
| NCF-100A | NCF-200A | NCF-300A | NCF-400A | NCF-500A | NCF-600A | NCF-700A | NCF-800A | NCF-1000A | ||
| Material Width (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | |
| Material Thickness | 0.1-1.6 | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 | 0.1-3.2 | 0.1-3.2 | 0.1-3.2 | 0.1-3.2 | |
| Standard Type | 0.1-1.6 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Material Thickness and Width | 2 | 180 | 280 | 300 | 350 | 400 | 450 | 480 | 550 | |
| 3.2 | 80 | 100 | 120 | 150 | 180 | 210 | 240 | 280 | ||
| Feed Length (mm) | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | |
| size of machine (mm) | 430*500*850 | 530*500*850 | 630*500*850 | 730*500*850 | 830*500*850 | 930*500*850 | 1030*500*850 | 1130*500*850 | 1330*500*850 | |
| size of control box(mm) | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | |
| weight of machine(kg) | 112 | 172 | 232 | 292 | 352 | 412 | 472 | 532 | 652 | |
| Feed Speed (m/min) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| Power(V) | AC three 220/380V | |||||||||
Company Information
Dongguan Youyi Precision Automation Equipment Co., Ltd., is one of the famous brand pressing peripheral equipment manufacturers in Taiwan Area.
We specialize in manufacturing and marketing press peripheral auto machines and package plants of presses. Our company was established in 1999. The area of the factory is more than 5,000 square meters. And we have over 15 years' manufacturing experience, and offer considerate service to our customers. We have a perfect after-sales service team who supplies rapid and high quality maintenance service in whole day.
We will still regard "sincere, honest, high quality, professional and best service" as our principle, and "quality is the most important, customer is the uppermost, and benefit together" as our management mission .
FAQ
| WHY US: More than 15 years' experience of designing, manufacturing Our products are ISO:9001 certified. First-class products,first-class after-sale service. WHERE ARE WE: No.60 New Asia Park, Lincun, Tangxia Town, Dongguan City, Guangdong Province |
Contact Us
- Dongguan Youyi Precision Automation Equipment Co., Ltd.
- Contact nameCathy Lai Chat Now
- Phone86-0769-87917050-803
- Address#60,New Asia Industry Park, Tangxia Town, Dongguan City, Guangdong Province, Dongguan, Guangdong
