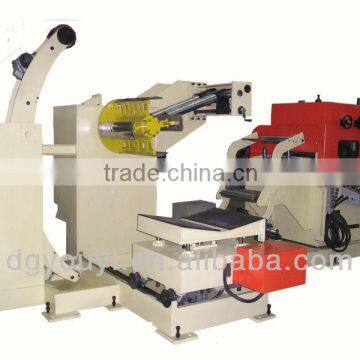

uncoiler decoiler with NC roll feeder and straightener feeder 3 in 1
Negotiable
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- shenzhen
You May Like
-
3 in 1 straightener feeder with uncoiler(thick plate)
-
2015 Hot 3-In-1 automatic steel Feeder Straightener and decoiler Machine(China manufacturer)
-
hot sell ! 3 in 1 NC uncoiler straightener and feeder machine
-
uncoiler,leveler and feeder machine of thick plate NCSFH-600
-
uncoiler,straightening and feeder machine made in China
-
decoiler,straightening and feeder machine made in China
Product Details
| Condition | New | Type | Other, decoiler,strainghtener & feeder | |
| Use | Sheet | Place of Origin | Guangdong, China | |
| Brand Name | YOUYI | Model Number | NCSF2-400 | |
| Voltage | 380V | Certification | ISO1990-2008 | |
| Warranty | 1 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
| Thickness of Material(mm) | 1.0-6.0 |
| Width of Material (mm) | 70-400 |
| Feeding Roller | 2 set |
| Work Roller | Up4/down3 |
| Max. Feeding Length(mm) | 9999.99 |
| Max. Feeding Speed (m/min) | 16m/min |
| Max. Coil weight | 5T |
| Roll I.D. (mm) | 450-530 |
| Roll O.D. (mm) | 1600 |
| Feed pitch Accuracy(mm) | ±0.1 |
| Feeding Motor | 4.4KW |
| Servo Motor | 0.75KW |
| Power Supply | 380VAC 50HZ |
| Brake | Butterfly brakes air compressor |
| Uncoiler sensing method | Photoelectric sensor |
| Expansion method | Hydraulic |
| Air Pressure | 5 kg/cm2 |
Company Information
YouYi precision automation equipment Co. , Ltd core competencies is machine, We are one of the grey hair of machine business in China, We have very competitive advantage items.
Our core competencies is uncoiler straightener and feeder 3 in 1 machine and our niche market is NC servo Roll feeder machine. We think our products will give you an edge over your competitor. Hope fully to become your trustworthy company in china, We promise to be your honest dealer.
| Main Electrical And Power Transmission Components Configuration Table | |||||
| No. | Name | Brand | Origin | Description | |
| 1 | Electric Eye Loop Control System | Omron | Japan | Electric Control | |
| 2 | Uncoiler-Inverter Device | Delta | Taiwan | Adjust the uncoiling speed and the straightening speed | |
| 3 | Rack gear Motor | CPG | Taiwan | ||
| 4 | Cylinder Stator | AIRTAC | Taiwan | Hold down arms,retainer,pinch arms | |
| 5 | Releasing cylinder, solenoid valve | SMC | Japan | ||
| 6 | bearings | NSK | Japan | ||
| 7 | Servo Controller | YASKAWA | Japan | ||
| 8 | Servo Motor | YASKAWA | Japan | ||
| 9 | Touch Screen | HITEC | Taiwan | ||
| 10 | PLC programmable controller | Mitsubishi | Japan | ||
| 11 | breaker | Schneider | France | ||
| 12 | Contactor | Schneider | France | ||
| 13 | Control bottom | Schneider | France | ||
| 14 | relay | Schneider | France | ||
| 15 | Pneumatic Component | AIRTAC | Taiwan | ||
| Standard Accessory and Optional Accessory( √ is checked): | |||||
| 1 | Die-high Electric Conditioning | √ Yes No | |||
| 2 | Hydraulic Uncoil Expansion | √ Yes No | |||
| 3 | Pressing Device | √ Yes No | |||
| 4 | Care Feeding Device | √ Yes No | |||
| 5 | Electric Eye Loop Control System | √ Yes No | |||
| 6 | Hydraulic material Feed-In Cart | √ Yes No | |||
| 7 | Uncoiler-Inverter Device | √ Yes No | |||
| 8 | Inputting Catenary to assist and support the material | √ Yes No | |||
| 9 | Protective cover,hydraulic motor,correlation photoelectric sensor,worm gear screw jacks device | √ Yes No | |||
| 10 | Reference Indicator adjuster,Coil tip flatness device | √ Yes No | |||
| 11 | Outgoing catenary to assist and support the material,coil side guide | √ Yes No | |||
| 12 | Inverse Curve Roll | √ Yes No | |||
| 13 | Drag link | √ Yes No | |||
| 14 | Transformer | √ Yes No | |||
