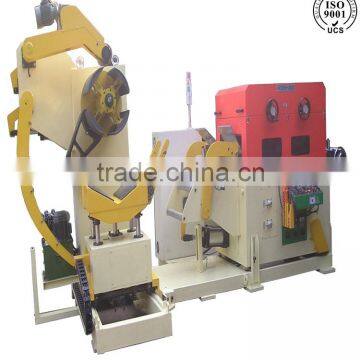

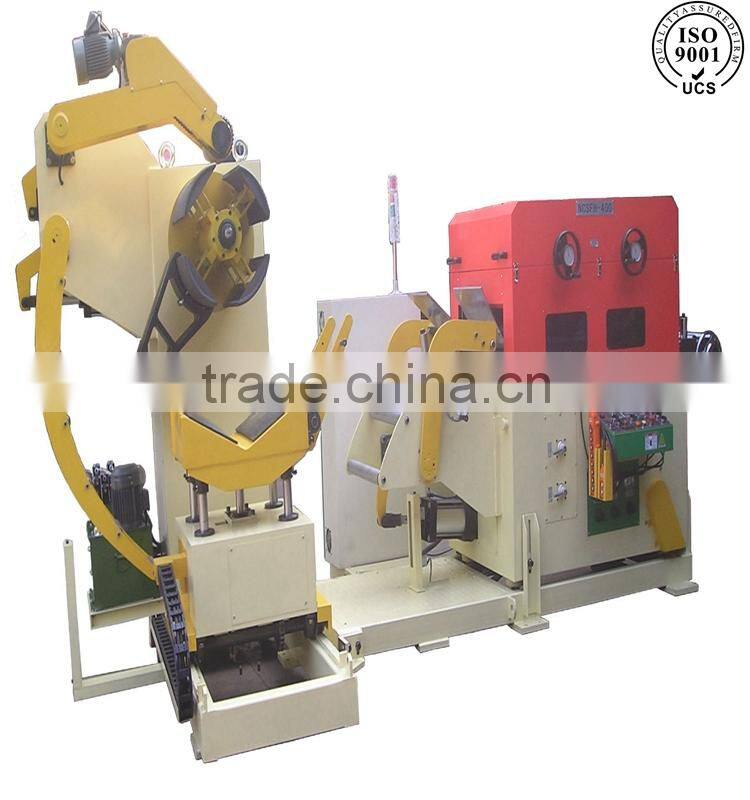

uncoiler,leveler and feeder machine of thick plate NCSFH-600

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port SHENZHEN

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YOUYI
Model Number	NCSFH-600

Product Description

Technical Parameters :
Model	NCSFH-400	NCSFH-500	NCSFH-600	NCSFH-800	NCSFH-1000
Material Thickness	1-6mm	1-6mm	1-6mm	1-6mm	1-6mm
Material Width	70-400mm	70-500mm	70-600mm	70-800mm	70-1000mm
Feed Roller	2	2	2	2	2
Straighten Rollers	Up 4/Down 3	Up 4/Down 3	Up 4/Down 3	Up 4/Down 3	Up 4/Down 3
Production Speed	18m/min	18m/min	18m/min	18m/min	18m/min
Coil Weight	5T	5T	5T	7T	8T
Coil I.D.	Φ450-510mm	Φ450-510mm	Φ450-510mm	Φ450-510mm	Φ450-510mm
Coil O.D.	Φ1200mm	Φ1200mm	Φ1200mm	Φ1200mm	Φ1200mm
Feed Drive Servo Motor	AC4.4Kw	AC4.4Kw	AC5.5Kw	AC7.5Kw	AC7.5Kw
Uncoil Motor	AC3.7Kw	AC3.7Kw	AC3.7Kw	AC3.7Kw	AC3.7Kw
Uncoiler Expansion	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Air Pressure	5Kg/cm2	5Kg/cm2	5Kg/cm2	5Kg/cm2	5Kg/cm2
Dimensions(L×W×H)	4348x2606x2196	4348x2806x2196	4348x3006x2196	4348x3406x2196	546642432200

Straightening Performance
straightener thickness/model	1	1.3	1.6	2	2.3	2.5	3.2	4	4.5	5	6
NCSF2-400	400									350	300
NCSF2-500	500								400	350	300
NCSF2-600	600							500	400	350	300
NCSF2-700	700						600	500	400	350	300
NCSF2-800	800					700	600	500	400	350	300
NCSF2-1000	1000				800	700	600	500	400	350	300

Company Information

Dongguan Youyi Precision Automation Equipment Co., Ltd., is one of the famous brand pressing peripheral equipment manufacturers in Taiwan Area.
We specialize in manufacturing and marketing press peripheral auto machines and package plants of presses. Our company was established in 1999. The area of the factory is more than 5,000 square meters. And we have over 15 years' manufacturing experience, and offer considerate service to our customers. We have a perfect after-sales service team who supplies rapid and high quality maintenance service in whole day.
We will still regard "sincere, honest, high quality, professional and best service" as our principle, and "quality is the most important, customer is the uppermost, and benefit together" as our management mission .

FAQ

Why Youyi
We are one of the grey hair of machine business in China, We have very competitive advantage items.
Our core competencies is uncoiler straightener and feeder 3 in 1 machine and our niche market is NC servo Roll feeder machine. We think our products will give you an edge over your competitor. Hope fully to become your trustworthy company in china, We promise to be your honest dealer.

More than 15 years' experience of designing, manufacturing
Our products are ISO 9001 certified.
