Product introduction

LYX-POE provides lightning protection for the power supply equipment of CAT-5E Ethernet network equipment and etc, and it was installed between LPZ1 to LPZ3, with two-stage protection function, to ensure the network from damaged by over-current resulted from lightning, industrial interference and etc, widely working in wireless net bridge, net camera and etc equipment where power supplied by Ethernet cable for lightning prevention.

Product characters

1. Al alloy shell, easy installation and replacement.
2. Built-in temperature control breaking technology and multiple protections, high reliability.
3. Green indictor shining means the function of lightning prevention is normal , this indicator is off, that means it has fault.
4. Multiple protections: power source and signal in network.
5. As per requirement by user, 48V DC power source input port can be assembled.

Installation and operation

1. The product connected in series in front of the input side of the equipment to be protected.
2. During installing, the earthing wire of product directly connected to workroom, reliable. The earthing wire shall be less than 0.5m.
3. This product does not need specially maintenance, 48V DC power source working normally , the green indictor is shining, if this indictor is off, that means fault happen, it shall check input power source for SPD is wrong or not, if input source is normal, then the SPD is bad, shall be replaced.

Technical parameter:

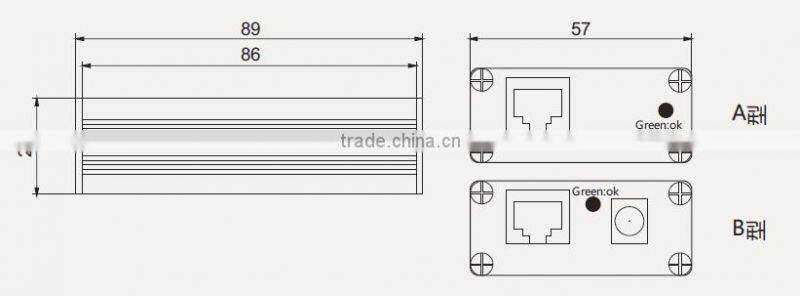

Outside size:
