Customized Conical Beer Fermenters Used for Sale
- Qingdao China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Tiantai or OEM | Model Number | 1000L | |
| Processing Types | Alcohol | Voltage | 3phase/380(220,400,415,440)v/50 (60)Hz | |
| Power(W) | 15-70Kw depends on size | Dimension(L*W*H) | Properly according to the capacity request | |
| Weight | Various in different models | Certification | CE ISO | |
| Warranty | 3 years from commissioning | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

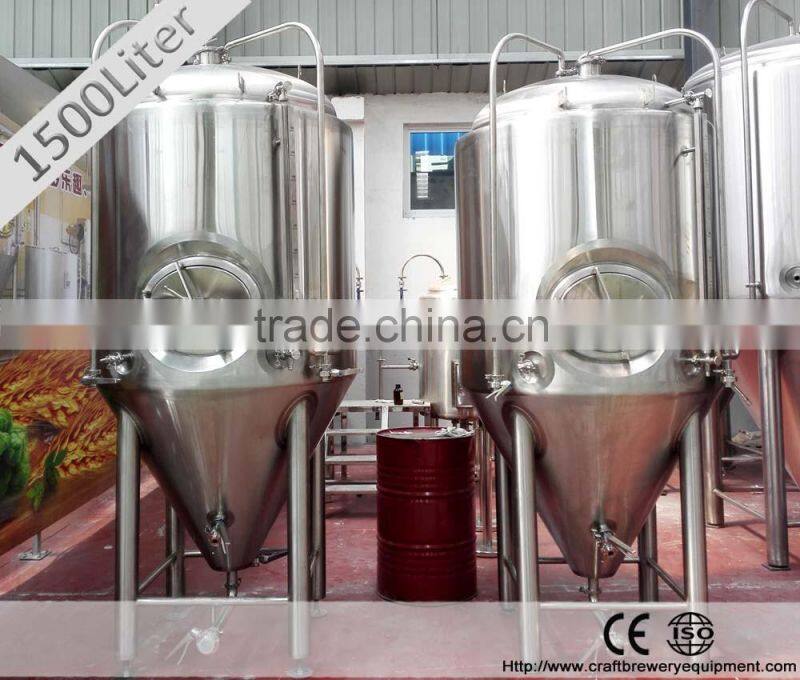

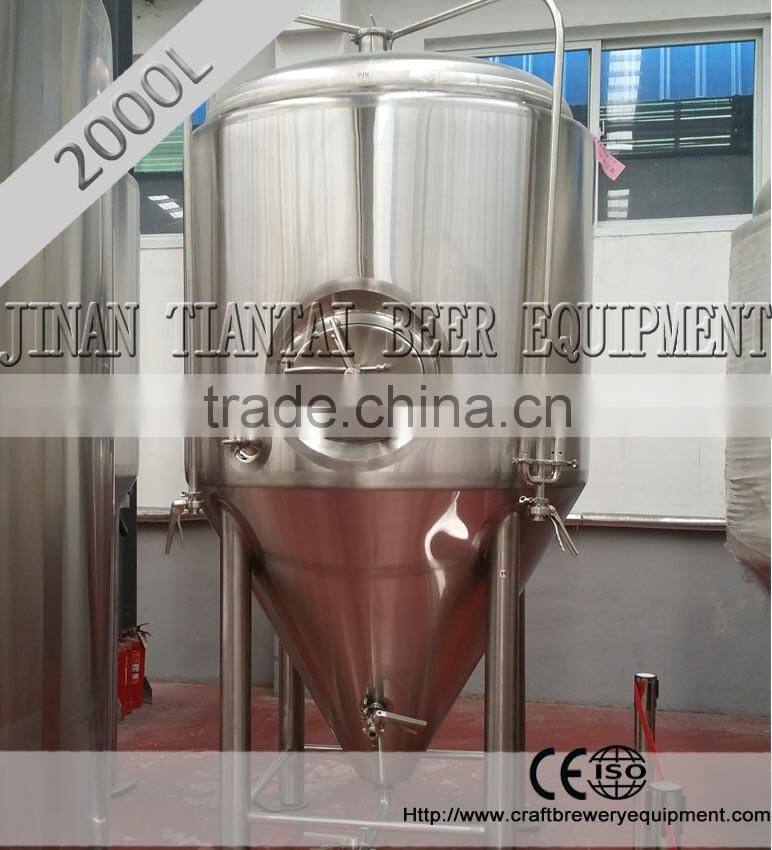

10hL Customized Conical Beer Brewing Fermenter Used for sale
Fermenters are also called CCT’s(Cylindrical Conical Tanks),FV’s(Fermentation Vessel),primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer.Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
The temperature of stainless steel fermenters can be individually controlled through glycol jackets.

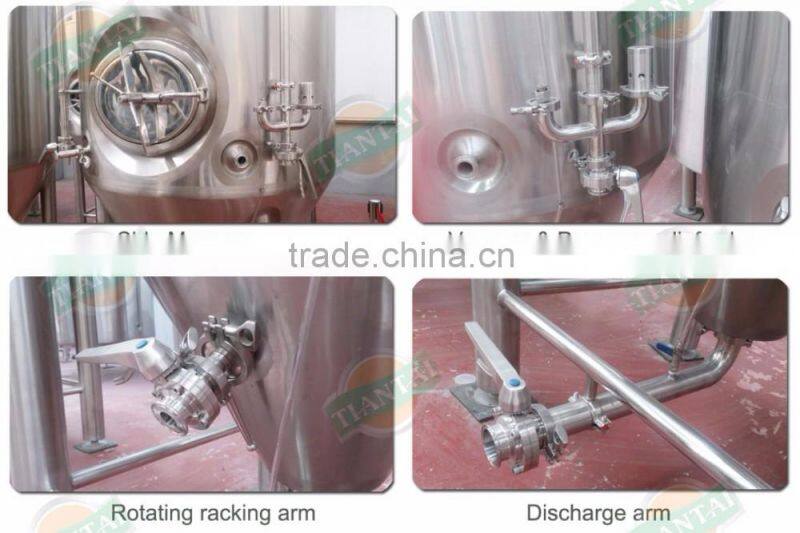

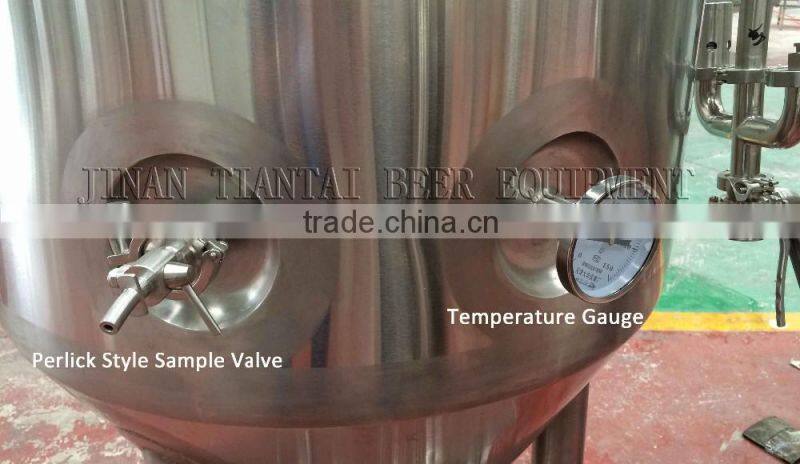

Mostly fermenters are equipped with CIP arm with coverage CIP spraying ball, shockproof presure gauge, thermowell for high accuracy,sanitary sample valve, co2 blow-off arm, tri clamp discharge arm and so on.The design of Tiantai fermenters is based on the structure of conical bottom and cylindrical body. Distinct structure makes fermenting process more efficient .
Model Items | TT-200 | TT-300 | TT-500 | TT-600 | TT-1000 |
Capacity | 200L/Day | 300L/Day | 500L/Day | 600L/Day | 1000L/Day |
Area Request | 20M2 | 40M2 | 50M2 | 60M2 | 100M2 |
Installed Power | 15Kw | 22Kw | 35Kw | 45Kw | 70Kw (by Electricity heating) |
|
|
|
|
| 15kw(by Steam heating) |
Steam Request |
|
| 0.1Ton/Hr | 0.12Ton/Hr | 0.15Ton/Hr |
Water Consumption | 0.8M3/Day | 1M3/Day | 1.5M3/Day | 2M3/Day | 3M3/Day |
Technical parameters
Fermentation Tank Series | Volume in US Gallon | Diameter | Height |
5HL Fermentation Tank | 132US Gallon | 1010mm | 2100mm |
6HL Fermentation Tank | 159US Gallon | 1060mm | 2150mm |
8HL Fermentation Tank | 211US Gallon | 1060mm | 2550mm |
10HL Fermentation Tank | 264US Gallon | 1210mm | 2550mm |
12HL Fermentation Tank | 317US Gallon | 1360mm | 2550mm |
15HL Fermentation Tank | 396US Gallon | 1560mm | 2620mm |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
a)Design pressure 45 psi(3bar);working pressure 15psi(1bar)
b)Interior shell:304 stainless steel,thickness 3mm
Exterior shell:304 stainless steel,thickness 2mm
c)Interior and exterior finish bright polish to 0.6~0.8,hygiene surface
d)25%headspace,unless a different volume is requested
e)Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
f)Fully welded exterior shell
Packaging Details: | Wooden/Veneer case for LCL;Plastic film wrapped and iron frame fixing for FCL |
Delivery Detail: | 45-85 working days after confirming the down payment |
service | free |
Professional consultation service in any time | √ |
Project planning and layout design | √ |
Installation and maintenance | √ |
Training to operate and debug | √ |
a.)Provide 36 months complete warrantee for tanks body and life-time maintenance service;
b.) All of the accessories and auxuliaries facilities are guaranteed for one year,
c.)Engineers available to service machinery overseas
d.)the material can be stainless steel with low price or red copper with nice-looking
e.)inner and outer of the tanks have been mirror polished
Any other questions, contact me without hesitation
Q:Not being a brewer, can i start a brewery?
Yes! There are not so many brewers. Tiantai can help you or one of your employees learning how to brew, including familiarizing you with operating brewery equipment, stuying recipes, grasping quality control and so on.
Above all, Tiantai can also offers a wide variety of services such as project planning, layout design, installation, and after sales services etc.
These services are free!
Q:Where can I get my ingredients ?
Almost every country or area can find a supplier for malt,hops,yeast etc. Tiantai company can also help to get good quality raw materials here.If you find the ingredients hardly, we can make arrangement to shipped to you.
Q:How long does it take to deliver a brewery?
Typically it takes about 1-3 months to manufacture a turkey brewery equipment. It also depending on the size and the amount of the equipment, the number of orders and the way of shipping , so the wait time can be shorter or longer.
Q:How long does the equipment last?
Given the fact that most facility in a brewery are made of stainless steel,the longevity of a brewery is long. In a conditon of proper maintenance and the careful use of chemicals,a brewery can be used intensively for about 20 to 30 years.For some equipment, such as fillers and labeler with a lot of moving parts, a shorter lifespan should be considered and more maintenance will be necessary.
In brief, depending on the use.
Trust us and satisfy youself !
