Home > Products > 36 Pin Connector > 36 Pin Champ DDK PCB Straight Mount 2.16mm Pitch Female Receptacle Connector Solder DIP Termination
36 Pin Champ DDK PCB Straight Mount 2.16mm Pitch Female Receptacle Connector Solder DIP Termination
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen / Guangzhou
- T/T Credit Card
You May Like
-
2.16mm Pitch PCB Female Receptacle Type DDK DIP Header Connector 36 Pin Socket With Spring Latches
-
DDK Receptacle PCB Mounting Straight DIP Termination Centronics Connector 36 Pins Female
-
DDK Male PCB Straight 36 Way Solder DIP Termination Connector 2.16
-
PCB Straight Solder DIP Termination Type 36 Pin Header Connector DDK Male Plug Champ 2.16mm Pitch
-
DDK PCB DIP Type Male Plug Centronic Connector 36 Pin
-
DDK PCB Straight DIP 36 Pin Female Receptacle Type Header Connector 2.16mm
Product Details
| Brand Name | FUYCONN | Model Number | FUY57087-36P | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Item NO.: FUY57087-36P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector

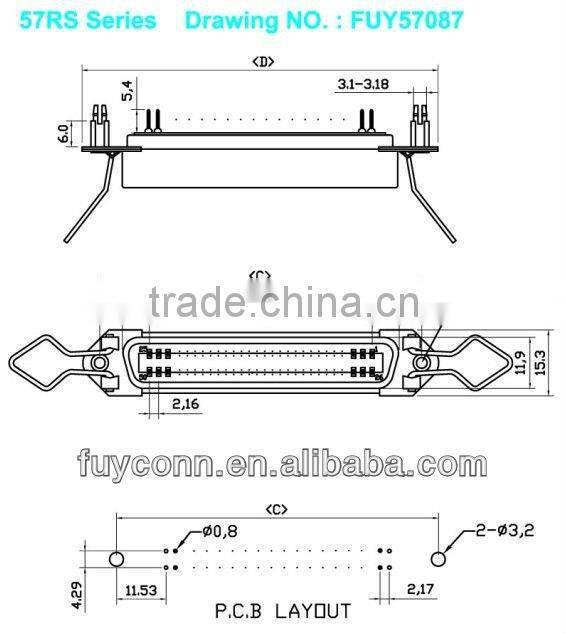

Connector Modul: FUY57087
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Orientation: Standard Orientation
PCB Mount Style: Straight
Mechanical Attachment
Panel Attachment Style: Hex Rear Revit Insert
Plate Mertial:Thermoplastic
Com Material:Thermoplastic
Shield: Stainless Steel
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
UL Flammability Rating: UL 94-VO
Special Function
A:90°C DIP Hex Rear Revit Insert(11.7mm) type
B:"Z" Fork Nut (M 5.4mm Thread)
C: With Bail Lock
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
