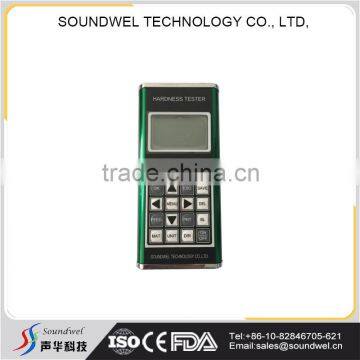

LHT180 Digital Portable Hardness Tester

FOB Price

US$ 300.00 - 1000.00 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	Soundwel
Model Number	LHT180

LHT180 digital portable hardness tester

Hardness scale	HL, HRC, HRB, HRA, HV, HB, HS
Memory	373 ~ 2688 group (Impact times:32 ~ 1)
Measuring range	HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)
Tensile strength U.T.S. range	374 ~ 2652 MPa
Accuracy	±6HLD (760±30HLD) error of displayed value
Accuracy	6HLD (760±30HLD) repeatability of displayed value
Standard Impact Device	D
Data Interface	USB 2.0
Optional Impact Devices	DC / D+15 / G / C / DL
Max. Workpiece Hardness	996HV(For Impact Devices D / DC / DL / D+15 / C)
	646HB(For Impact Device G)
Min. Radius of Workpiece (convex/concave)	Rmin = 50mm (with special support ring Rmin = 10mm )
Min. Workpiece weight	2 ~ 5kg on stable support
Min. Workpiece weight	0.05 ~ 2kg with compact coupling
Min. Workpiece thickness	5mm (Impact Devices D/DC/DL/D+15)
	1mm (Impact Device C)
	10mm (Impact Device G)
Min. thickness of hardened layers	0.8mm
Power	3 AABatteries,4.5V
Continuous Working time	About 100h, (without backlight)
Operating temperature	0 ~ 40ºC
Humidity	≤ 90%
Overall dimensions	166 × 77× 32mm
Weight	380g
