Digital Ultrasonic Flaw Detector, Flaw Meter

Specifications

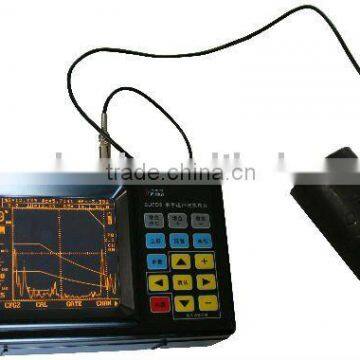

Digital Ultrasonic Flaw Detector SUFD2

NDT Equipment

Features and Functions

•High right electroluminescent, strength light, weak light and sunlight viewable.

•32 independent sets of parameters can be set and save lots of inspection procedure and standards, need no test block outside, high work efficiency.

•Menu and sub-menu display in the same window, no need to search, clear at a glance, simple and convenient to operate.

•Large capacity Li battery, low power consumption design, 20+ hours run time.

•Can be connected to the printer, print inspection report and wave.

•Has auto-calibration function for normal probe, angle probe, convenient to use.

•Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth.

•Peak value in the gate can be captured automatically.

•DGS(AVG) curve suitable to inspect forged piece etc.

•A-scan and B-scan to be selected.

•Waveform and channel parameters can be saved into U disk directly or copied from the detector memory to the U disk then to be processed by the host computer software.

•Based the curve surface diameter to calibrate the flaw location by the curve surface calibration function.

Specifications

Scan Range 0~10000mm

Velocity range 1000 m/s~9999m/s

Gain 0dB~110dB

Display Delay -20μs~+3400μs

Sensor Zero Offset 0μs~99.99μs

Sensor Frequency 0.1~15MHz

Sensor Damping 100Ω,150Ω, 200Ω,500Ω

Repetition Rate  10~1000Hz

Sensitivity Allowance  ≥60dB(D:200mm ,FBH:Diameter=2)

Resolution  ≥40dB

Linear Rejection 0~80%

Vertical Linearity deviation  ≤3%

Horizontal Linearity deviation ≤0.2%

Dynamic Range ≥32dB

Pulse Pattern square

Pulse Strength 100V——800V

Pulse Width 50ns——1000ns

Power Supply 12×3.7V(Li-ion Battery)

Operation Temperature  20°C~50°C

Humidity 20%~90%RH

Size 250(L)mm×80(W)mm×150(H)mm

Weight 1.7kg(include battery)
