Preamplifier for Acoustic emission

The output voltage of an AE sensor is usually very small (in mill volt or less), a preamplifier is needed to enlarge the signal before it input to an AE system or other signal processing equipment. An amplifier that is directly connected to an AE sensor in one end and AE system in another end. DC power is needed and supplied by the AE system. A preamplifier has vital function in AE system of increasing Signal-to-Noise.

Acoustic emission preamplifier need to have impedance matching function and transformation function. To prevent the input signal is too large, it should also have the electric shock protection and anti blocking phenomenon resilience, and have large range of dynamic output.

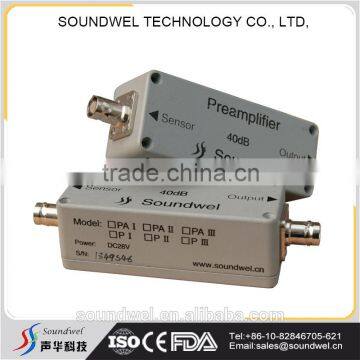

PAI preamplifier is suitable for most of models of sensors and collectors.

Features:

lPAI Preamplifier is normal broadband type, suitable for most acquisition card and sensor model

lBuilt-in magnetic holder, can absorb on the ferro Amaterial

lPhantom power supply, power supplied by cable

lAST: Provides the sensor with ability to characterize its own condition as well as send out a simulated AE wave that other sensors can detect controlled by software

lMetal shell, shield electromagnetic interference and impact

Specifications:

Gain: 40dB

Bandwidth(-3dB): 10kHz~2.0MHz

Noise: <26dB(input shorted)

Output Voltage: ±10V(Vpp)

Power Required: 28V

Rated Load: 50Ω

Working Temperature: -20℃~+65℃

Connector: BNC

Protection Level:IP65

Size: 116mm×36m×30mm(include BNC)

Weight: 170g

PAV Preamplifier specifications:

l Gain: 20dB /40dB /60dB are optional.

l Bandwidth: 1kHz~1.5MHz (Without filter)

l Noise: <28dB(with sensor)

l Input: single-ended and differential modes are optional

l Power Required: DC28V supplied by AE cable or power jack

l Output Voltage: ±20V (Vpp)

l Built-in Filter: 15-1200 kHz, 100-400 kHz, etc. are selectable

lAutomatic sensor testing function
