Product Description
GTJ-F200 usage overview

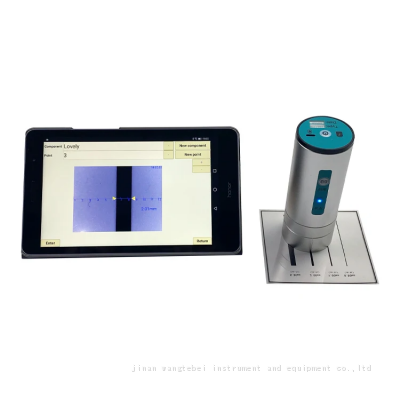

GTJ-F200 series wireless crack width gauge is used to measure the crack width in concrete buildings such as houses, roads, and bridges.
Applicable standard
GJ125-99 "House Safety Appraisal Standard"
Features
※Innovative wireless camera probe, snap button operation is convenient;
※The host adopts windows tablet and English full touch operation;
※Intelligent interpretation of oblique cracks, no vertical;
※ The image can be enlarged and reduced, and the interface display scale can be manually assisted to interpret;
※ Flat and TF card storage, no capacity, no limit, copying data is convenient and fast;
※The data analysis and report form is included in the main unit, which can be owned without transferring to the host computer.
Technical Parameters
Specification Model | GTJ-F230 | GTJ-F260 |
Host parameters | Android system tablet | Android system tablet |
Test range | 0~10mm | 0~10mm |
Measurement accuracy | 0.01mm | 0.01mm |
Estimable accuracy | 0.01mm | 0.01mm |
Magnification | Digital 60 times | Digital 60 times |
Width detection | support | support |
Timing monitoring | not supported | Support |
Storage capacity | 32G (expandable) | 32G (expandable) |
Probe power supply method | Built-in rechargeable lithium battery | Built-in rechargeable lithium battery |
Operation mode | Touch screen + shortcut key | Touch screen + shortcut key |
Connection method | wifi | Wifi |
Interpretation method | Automatic / manual | Automatic / manual |
Working environment temperature | -10 °C ~ 40 °C | -10 °C ~ 40 °C |
Packing specification | Material: engineering plastic |
