lightning protection equitment

Application:

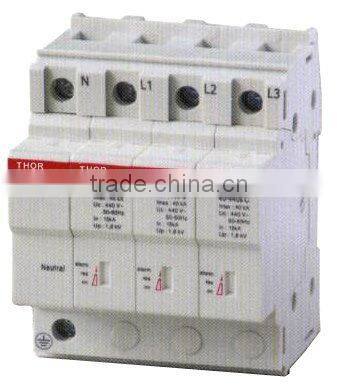

TRS4 AC surge protection device suit for the AC 50Hz/60Hz . for the TT. TN-S . TN-C .and IT .not over 380V . It is used to protect the direct or indirect thunder influence or other instantaneous over-voltage surge . This protect is mainly used in house . thied industry field for surge protection . This product is comply with IEC 61643-1998

Overall structure
TRS system SPD using modular design,35mm electrial trail mount,90mm product width,Thickness into three kinds:18mm 27mm 36mm.

Mounting

SPD adopts standard 35mmtrail to moun

SPD adopts 4-35mm² copper wire to connect, and has two ways

From the power switch to SPD , then from SPD to the load .In this way, it is suitable the distribution box of loading not over 100A.,The section should base on the current of the load.

From the power switch to SPD . Then from power switch to the load . In this way . It is suitable the distribution box of loading over 100A. The section should not longer than 500mm

The earthed wire is adopted over 4mm2 double color wrie. And not longer than500mm.

The L wire, connected the protector should have a fuse of 10-32A. To make sure the network working normally . And avoid of the SPD disabled.

In this way . Please adopt the folowing section to connect

Class B:Over Imax 60kA phase wire,16mm2 earthed wire,25mm²

Class C:Over Imax 40kA phase wrie,10mm2 earthed wire,16mm²

Class D: Below Imax 20kA phase wire ,6mm² earthed wire,10mm²

Trade Terms:

1. M.O.Q: 10PCS

2. Production lead time: 3-5 days for sample, 7-10 days for mass order.

3. Shipping Port: Shenzhen, China

4. Shipping way: by sea, by air, by express(DHL/UPS/TNT/FedEx/EMS etc.)

5. Shipping freight will be quoted as per your request.

6. Payment terms: T/T, ; Western Union

Our service:

1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, any your customized SPD we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information.

Our Promise:

1. Provide solutions and high quality products

2. Streamline the buying and paying processes

3. Deliver the goods to our customers all over the world with speed and precision

Shipping Options:

1. By Express: such as DHL, UPS, TNT, FedEx etc. The dispatch time is about 3-7 days

2. Air Freight: when your order more than 100kgs which will be more economical than express

3. Sea Freight: We will updated sea freight once we know your sea port where goods will be delivered.

4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

Rich Experience: Our factory was founded in 2005, have a long history in manufacturing and selling of a complete range of surge arresters. We firmly promise to top quality, competitive price, quick delivery and good before/after sales services. OEM service is welcomed.

Good after sales service: one year replacement, five years warranty.

Any small problems happening in our SPD will be solved at the most prompt time. We always offer relative technical support/consultant. Quick response ,all your inquiry will be replied within 24 hours.

Quality warranty:

We have our own factory, engineerteam and a set of equipment for the product test, Beside,we can control the production(also mean we can control the lead-time)quality of the product very well.

Main Products:Lightning rod , Power surge protector, Signal surge protector, CCTV surge protector, Earth rod and so on.
