(SPD)lightning protector surge protection device

FOB Price

US$ 1 - 100 / Piece

100 Pieces(Min. Order)

Port ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	THOR
Model Number	TRS2

Product Description

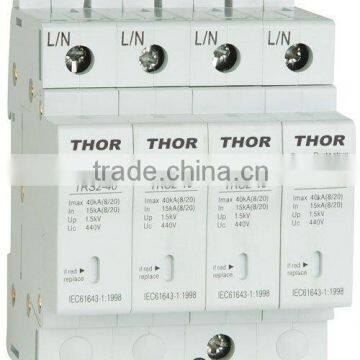

(SPD)lightning protector surge protection device

Application:

TRS2-40 series surge protection device suit for the AC 50Hz/60Hz . for the TT. TN-S . TN-C .and IT .not over 380V . It is used to protect the direct or indirect thunder influence or oher instantaneous over-voltage surge . This protect is mainly used in house . thied industry field for surge protection . This product is comply with GB18802 .1-2002 . IEC 61643-1998

Specifications:

1):Protection class C IEC II CLASS

2):Composite type :1P 2P 3P 4P 1P+N 2P+N 3P+N 3P+NPE

3):Max continuous operating voltage (UC):255V--440V

4):Nominal discharge current (8/20us)(In);5KA 10KA 20KA

5):Max discharge current (8/20us)(Imax):10KA 20KA 40KA

6):Voltage protection level (UP):1.0KV 1.5KV 1.8KV 2.0KV

TRS2-40 series have derivative composite type : 1+NPE 2+NPE 3+NPE

TRS2-40 series can add remote signal control function

Type	TRS2/-275	TRS2/-320	TRS2/-385	TRS2/-440
Max continuous operating voltage (UC):(V)	275	320	385	440
IEC category	II
Nominal discharge current (In)8/20μS (KA)	15/20/30	15/20/30	15/20/30	15/20/30
Max discharge current 8/20μS)(Imax): (KA)	30/40/60	30/40/60	30/40/60	30/40/60
Voltage protection level (UP)(KV)	<1.5kV	<1.8kV	<2.0kV	<2.5kV
Response time (ns)	≤25ns
Degree of protection	IP20
Operating temp range	-40--+80
Color	Gray
Frame material	Strengthen fire resistance PBT
Cross section area	Phase wire :6-35mm2
	Earthed wire:6-35mm2
	Remote sig terminal: 1.5mm2
Accessonies	Addtion remote signal control
