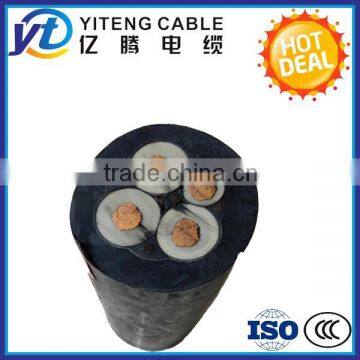

H05RR-F Rubber cable, power cable

Flexible Rubber Cable

H05RR-F Rubber cable, power cable

For connection of electrical appliances when exposed to low to medium mechanical stress in households and offices and for light utilities. Anywhere where there is minimal physical damage expected.

Technical Information
Conductor: Class 5 – fine copper wire strands manufactured to IEC 60228
Insulation: Rubber
Sheath:Rubber
Sheath Colour: Black
Voltage Rating: 300/500V
Number of cores: 12,3,3+1,4,5,6
Cross Sectional Area:0.5sqmm up to 6sqmm
Temperature Rating: Flexing -25°C to +60°C Static -40°C to +60°C
Minimum Bending Radius:Flexing: 15 x Ø Static: 6 x Ø

Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow

Technical Data

Cable Structure

Registered capital of RMB:100,000,000

Factory Area:36,000m2

Manufacturing Capacity per year: 250000km

Number of Employees: 250

Main products:

Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc
