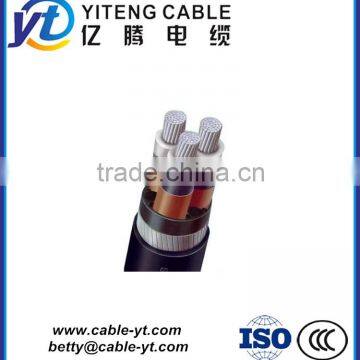

Copper XLPE Insulated Power Cable 35KV 300 400 500mm2 Underground High Voltage Power Cable

This series cable is mainly laid indoor, cable slot, direct burial, channel, mining well and water condition. This series cable has the following characteristics. The Max. Rated temperature of the conductor is 70 degree. The Max. Temperature of the conductor of the cables can't exceed 160 degree.

1). Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards / Testing Specications:
IEC 60502-1.

2). Description:
-Conductor: Solid or stranded copper
-Insulation: Cross-linked polyethylene XLPE
-Circuit Identication: The insulation shall be red, black
-Filler: Polypropylene lament with lapped binding tape
-Inner Sheath: Polyvinyl chloride (Black)
-Armor: Galvanized steel wire
-Core-covering: Binding tape
-Outer Sheath: Polyvinyl chloride (Black)

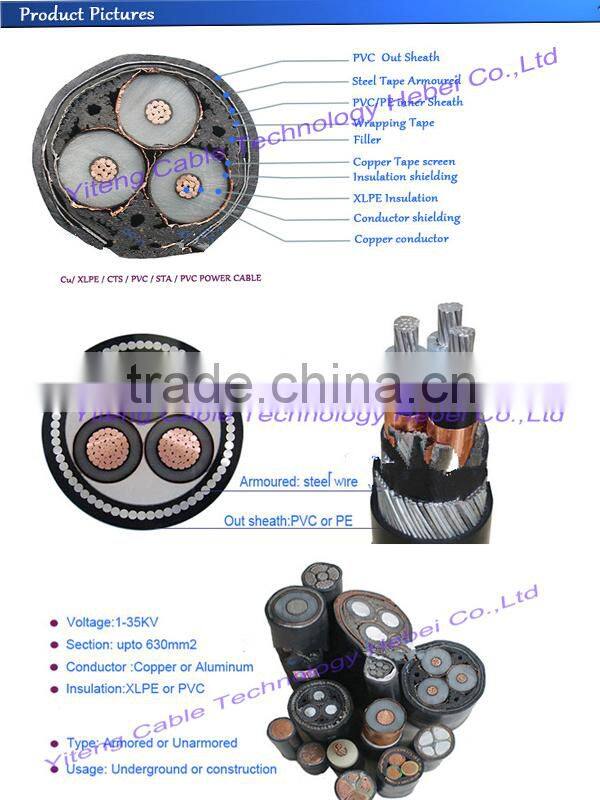

3). Brief Construction:
Single core or multi-core
Copper or aluminum conductor
XLPE insulation
Copper tape or wire screen
Galvanized steel wire armored
PVC sheath
The products are mainly complying with IEC60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc.
Cross-section area can be up to 400 sqmm (copper or aluminum conductor).
Conductor long-time operating temperature is 90 degrees. In short circuit
Conductor highest temperature should be not more than 250 degrees.

Main Technical Quota
1.DC resistance: conductor resistance of finished cable at 20'C per kilometer is not more than the following values.

2.Voltage Test and Partial Discharge Test

Welcome to our factory! Hope to get in touch with you!

1. Any inquiries will be replied within 24 hours.

2. OEM/ODM available.

1) Printing your logo on the cable.

2) Printing your logo on the pull box, wooden drum according to your design

3) Any your idea on cable, packing box are available.

3. High quality, reasonable and competitive price, fast lead time.

4. Good after-Sale Service.

1) All products will have been strictly Quality Checked in house before packing.

2) All products will be well packed before shipping.

5. Faster delivery.

Sample order in stock, and 3-7 days for bulk production.

6. Payment

We can accept payment methods: L/C, T/T, Western Union,other payment can negotiation.

7. Package

Standard Export Wooden or Steel Drums or as per Customer's Requirement

8. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products
