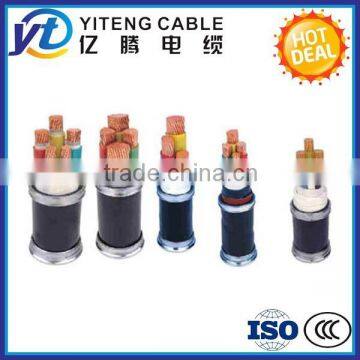

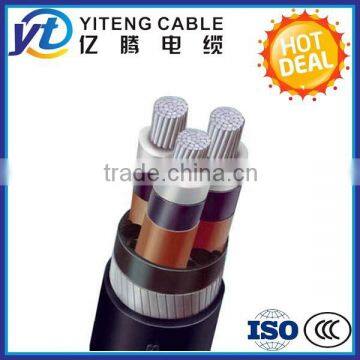

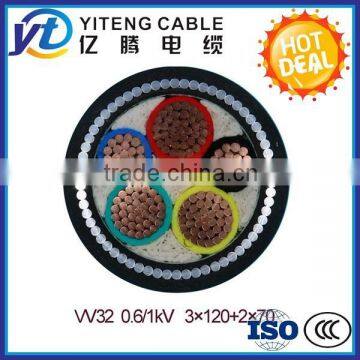

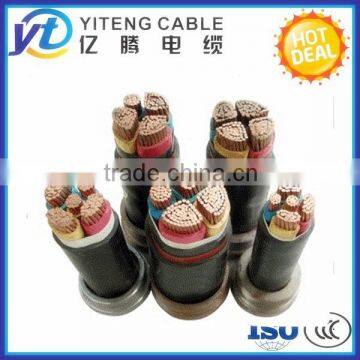

Armoured Low Voltage Power Cable for Power Transmission

Armoured Power Low Voltage Cable for Power Transmission

Product Description

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Application:
It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

Nominal Section:
1.5 mm2, 2.5 mm2, 4 mm2, 6 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2, 70 mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2 400 mm2 500 mm2 630 mm2 800 mm2 production range: Single core cable from 1.5 mm2 to 800 mm2, muli-core cable from 1.5 mm2 to 400 mm2

Manufacturing Standards  GB/T 12706-2008, IEC 60502-2

Our Products

YITENG COMPANY

Yiteng Cable Technology Hebei Co., Ltd

Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250

Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.

Why choose Us

1. Fast delivery

2. Sample available .

3.Top cable supplier in China

4. ISO, IEC,CE ,CCC certifications.

5. Honest Manufacturer.

6.Advanced customization

7.Strong technical support

8.Strict quality control system

9. Quality guarantee after delivery

FAQ:

1.Q: Is your company a manufacturer or a trade company?

A: We are cable manufacturer.

2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What is your sample policy?

A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.

5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?

A: We can select some popular products for you immediately.  Please let us know your requirements so that we can send out the quotation to you.
