Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | V(L)V22, YJ(L)V22, V(L)V23, YJ(L)V23, V(L)V32, YJ(L)V32 | Insulation Material | Other, PVC or XLPE, PVC or XLPE Insulation Material | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Other, Aluminium or Copper | Jacket | PVC |
Product Description

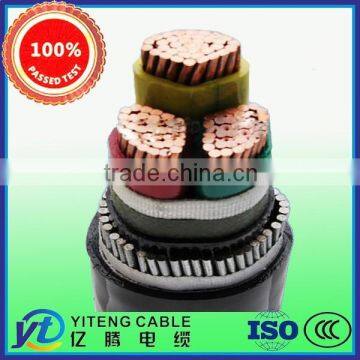

Power Cable 0.6-1KV XLPE Insulated SWA Steel Wire Armored Cable
Provided By Yiteng Cable-- a Specialized Cable Manufacturer for 20 Years!
--Factory Direct Supply of low voltage armored power cable,
--OEM Service Provided,
--Best Cable Quality, Premium Service,
--All for Customers!
Power Cable 0.6-1KV XLPE Insulated SWA Steel Wire Armored Cable
1. SCOPE
This specification covers PVC or XLPE insulated, circular, twin, three or four
conductors armoured cables, rated at 0.6/1 KV to international Electrotechnical
commission Publication IEC 60502-1 for use indoors, outdoors, in cable ducts, in
water and for direct burial underground, where severe mechanical stresses are
present. These cables have high dielectric strength, an excellent resistance to
deformations under high temperature and pressure, and high resistance to ageing,
abrasion, moisture, chemicals, acids and oils.
2. CONSTRUCTION
2.1 Conductor
Plain, annealed electrolytic copper or Aluminium conductors, solid, circular
stranded, or sectoral stranded, conforming to the applicable requirements of IEC
60228.
2.2 Insulation
PVC based thermoplastic or XLPE thermosetting material, conforming to the
applicable requirements of IEC 60502-1.
2.3 Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic
material and covered with an extruded thickness of thermoplastic material.
2.4 Armour
Galvanized round wires, or flat strips, completely covering the assembly of cores
and a counter helix of galvanized steel tape on top; or two layers of steel tape,
complying to the applicable requirements of IEC 60502-1.
2.5 Sheath
PVC based thermoplastic material, conforming to the applicable requirements of
IEC 60502-1.
2.6 TESTS
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials
or on finished products.
3. Types and Descriptions for Power Cable 0.6-1KV XLPE Insulated SWA Steel Wire Armored Cable:
| Armored Cable Type | Low Voltage Armored Power Cable Specification | |
| Copper Core | Aluminium Core | |
| VV22 | VLV22 | Galvanized Steel Tape Armored Power Cable With PVC Insulation and PVC Sheath |
| VV23 | VLV23 | Galvanized Steel Tape Armored Power Cable With PVC Insulation and PE Sheath |
| VV32 | VLV32 | Fine Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath |
| VV33 | VLV33 | Fine Steel Wire Armored Power Cable With PVC Insulation and PE Sheath |
| VV42 | VLV42 | Thick Steel Wire Armored Power Cable With PVC Insulation and PVC Sheath |
| VV43 | VLV43 | Thick Steel Wire Armored Power Cable With PVC Insulation and PE Sheath |
| YJV22 | YJLV22 | Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV23 | YJLV23 | Galvanized Steel Tape Armored Power Cable With XLPE Insulation and PE Sheath |
| YJV32 | YJLV32 | Fine Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV33 | YJLV33 | Fine Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath |
| YJV42 | YJLV42 | Thick Steel Wire Armored Power Cable With XLPE Insulation and PVC Sheath |
| YJV43 | YJLV43 | Thick Steel Wire Armored Power Cable With XLPE Insulation and PE Sheath |
4. Structures of Cables:

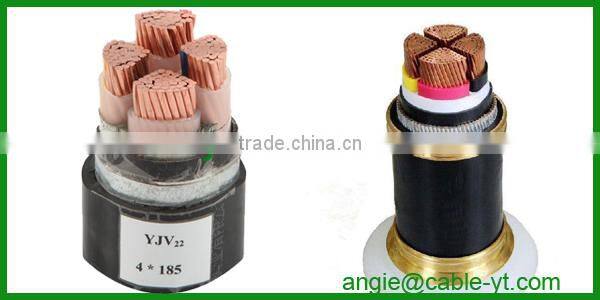

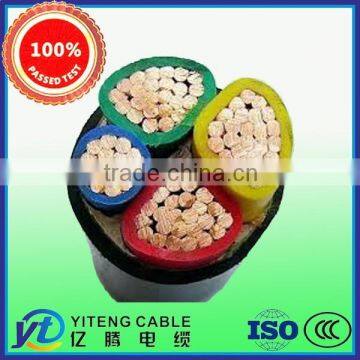

4 Cores Power Cable:

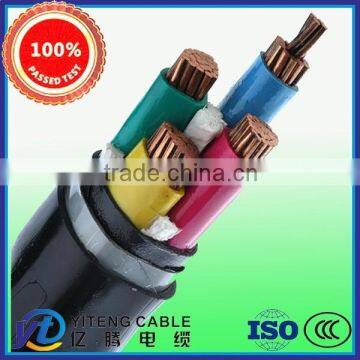

3+2 Cores Power Cable:

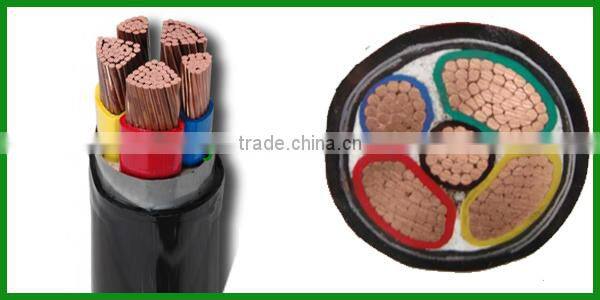

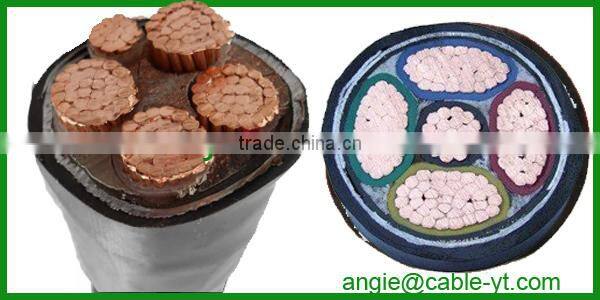

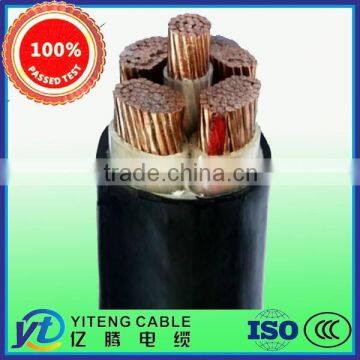

4+1 Cores Power Cable:
3 Cores Power Cable:
3+1 Cores Power Cable:

With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package upon customer's receiving.
Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Experts of Yiteng Cable will always wait to answer all your questions!
1. When was Yiteng Cable founded?
Our factory was first establlished in Year 1994 and then it changed names several times.
2. What kinds of cables does Yiteng Cable produce?
1). Overhead Line Cables:
Bare Conductor: AAC, AAAC, ACAR, ACSR, etc
ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;
2). Alluminum Alloy Cable;
3). Shield Cable;
4). Control Cable;
5). Power Cable;
6). Special Cable in accordance with Customer's specific requirement.
3. What certificates does Yiteng Cable has been approved?
Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;
4. What's the Minimum Order Quantity?
It depends on the cable production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.
5. Can customers audit Yiteng Cable?
Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.
