6 Pin Sub Mini Toggle Switch 3-wayand 2-way.ON ON ON&ON OFF ON
US$ 0.55 - 0.7
/ Piece
1000 Pieces(Min. Order)
- HK OR SHENZHEN
- T/T
You May Like
-
6 Pin Sub Mini Toggle Switch 3-way and 2-way.ON ON ON&ON OFF ON
-
6 Pin Sub Mini Toggle Switch 3-wayand 2-way.ON ON ON&ON OFF ON
-
2 Pin Sub-Miniature Toggle Switch 3A 2-Way ON OFF
-
2 Pin Sub-Miniature Toggle Switch 3A 2-Way ON OFF
-
Sub Miniature Rocker and Lever Handle Switch&twin Rocker Switch of ON OFF
-
Sub Mini Twin Rocker Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | SMS-201-2A1 | Max. Current | AC 1.5A 250V | |
| Max. Voltage | AC 3A 125V | Mechanical Life | 200000 Cycles |
Product Description
Specifications

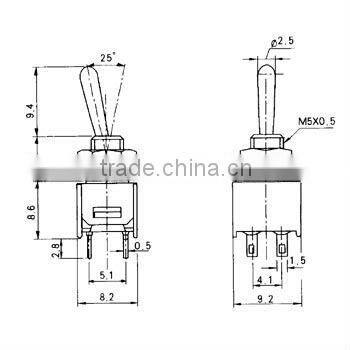

The use of new materials production, has high reliability, Long service life,low consumption.Specification: Contact Rating: 1.5A 250V AC: 3A 125V AC Current Resistance : 20mΩ Max Insulation Resistance : 500V DC 1000mΩ Min Dielectric Strength : 1500V AC,1 Minute Operating trmperature : -55°C--+85°C Electrical life : 20000 Cycles Housing : PBT UL94V-0 Terminals: Silver-plated Brass Handle OPitions: A:)H:9.4mm Φ2.5 C:) H:5.4mm Φ2.5
|
...
