Home > Products > Toggle Switch series > Miniature Toggle Switch 3A 3-Way and 2-way ON OFF ON
Miniature Toggle Switch 3A 3-Way and 2-way ON OFF ON
- HK OR SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | MS-101-A1 | Max. Current | AC 2A 250V | |
| Max. Voltage | AC 5A 125V | Mechanical Life | 100000 Cycles |
Product Description
Specifications
The use of new materials production, has high reliability, long life. The product has passed UL.In line with the ROHS directive.Specification:
Rating: 2A 250V AC;5A 125V AC
Current Resistance: 20MΩMax
Insulation Resistance : 500V DC 1000MΩ Min
Dielectric Strength : 1500V AC,1 Minute
Operating trmperature -55°C--+85°C
Electrical life : 20000 Cycles
Housing : PBT UL94V-0
Terminals: Silver-plated Brass

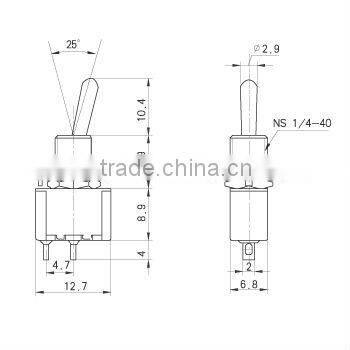

Handle Options: A:)H:10.4mm Φ2.9 C:) H:6.8mm Φ2.7
B:)H;23.1mm Φ3.2 D:)H:17.5mm Φ5.9
MS-101-A1 ON-OFF
MS-111-A1 (ON)-OFF
SPST 2P
O
...
