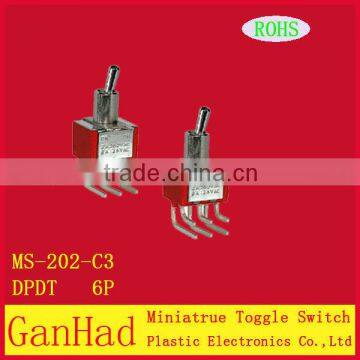

PC-V Terminal Mini Toggle Switch
- 20000 Piece / Pieces per Month
- HK OR SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | MS-202-C3 | Max. Current | AC 2A 250V | |
| Max. Voltage | AC 5A 125V | Mechanical Life | 100000 Cycles |
Product Description
Specifications
1,PC-V Terminal Mini Toggle Switch2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement.
Specification:
Rating: 2A 250V AC;5A 125V AC
Current Resistance: 20MΩMax
Insulation Resistance : 500V DC 1000MΩ Min
Dielectric Strength : 1500V AC,1 Minute
Operating trmperature -55°C--+85°C
Electrical life : 20000 Cycles
Housing : PBT UL94V-0
Terminals: Silver-plated Brass

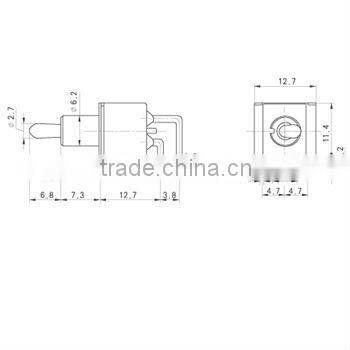

Handle Options: A:)H:10.4mm Φ2.9 C:) H:6.8mm Φ2.7
B:)H;23.1mm Φ3.2 D:)H:17.5mm Φ5.9
MS-202-C3 ON-ON
MS-212-C3 ON-(ON)
MS-203-C3 ON-OFF-ON
MS-213-C3 ON-OFF-(ON)
MS-223-C3 (ON)-OFF -(ON)
MS-203-3-C3 ON-ON-ON
DPDT 6P
...
