Home > Products > Toggle Switch series > Mini Toggle Switch &Short Handle Toggle Switch
Mini Toggle Switch &Short Handle Toggle Switch
- HK OR SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | MS-102-C1G | Max. Current | AC 2A 250V | |
| Max. Voltage | AC 5A 125V | Mechanical Life | 100000 Cycles |
Product Description
Specifications
1,New materials production,high reliability, long life.2,The product has passed UL.
3,In line with the ROHS
Mini Toggle Switch &Short handle toggle switch
Specification:
Rating: 2A 250V AC;5A 125V AC
Current Resistance: 20MΩMax
Insulation Resistance : 500V DC 1000MΩ Min
Dielectric Strength : 1500V AC,1 Minute
Operating trmperature -55°C--+85°C
Electrical life : 20000 Cycles
Housing : PBT UL94V-0
Terminals: Silver-plated Brass

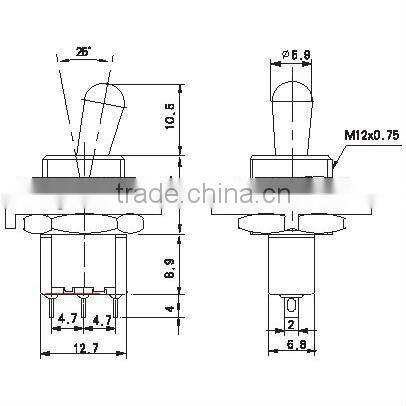

Handle Options: A:)H:10.4mm Φ2.9 C:) H:6.8mm Φ2.7
B:)H;23.1mm Φ3.2 D:)H:17.5mm Φ5.9
MS-102-C1G ON-ON
MS-112- C1G ON-(ON)
MS-103- C1G ON-OFF-ON
MS-113- C1G ON-OFF-(ON)
MS-123- C1G (ON)-OFF -(ON)
SPDT 3P
...
