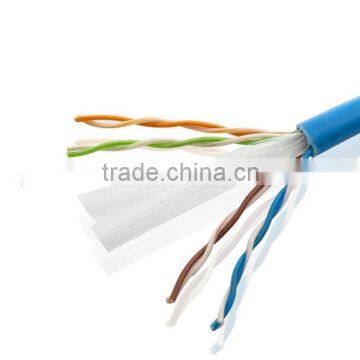

Cat5e network cable
- SHENZHEN
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | YITAILI | |
| Conductor Material | Copper | Insulation Material | PVC | |
| Jacket | PVC | Number of Conductors | 4 |
Product Description
Specifications
1.Cat5e cable AWG24 1000ft2.24AWG The best cost-effective
3..7 years lan cable experience
4. ISO9001/CE/ROHS/FCC
Product Details:
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | YTL |
| Model Number | YTL-cat5e-lszh |
| Type | Cat 5e |
| Number of Conductors | 8 |
| Item | CMP Plenum cat 5e patch cord |
| Color | Grey or customized |
| Jacket | thermoset compounds |
| Insulation | PE |
| Certificate | CE FCC ROHS |
| Gauge | 23, 24AWG |
| Twisted pairs | 4 |
| Shiled Type | UTP FTP SFTP |
Payment & Shipping Terms:
| FOB Price: | US $10-79/ Box Get Latest Price |
|---|---|
| Minimum Order Quantity: | 305Box/Boxes |
| Port: | Shenzhen |
| Packaging Details: | Cat 5e patch cord each piece polybag Standard box or customized |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T,Western Union,L/C ,D/A ,D/P |
| Supply Ability: | 500 Box/Boxes per Week |
Detailed Product Description:
- CMP Plenum cat 5e patch cord
- UTP, SFTP Solid or Stripped conductor
- Bulk cable patch cord
- 4 pairs 24awg plenum
- CMP Plenum cat 5e patch cord
Application:
Plenum rated cable use within buildings in ducts or plenums or other spaces used for environmental air. Space between the structural ceiling and the dropped ceiling or under a raised floor is typically considered plenum
CONSTRUCTION & CHARACTERISTICS:
Conductor | Material/Size | Solid Bare Copper/24AWG |
Insulation | Material | HDPE |
Thickness | Nominal: 0.20 mm | |
Diameter | Nominal: 0.96 mm | |
Colors
| Blue/White-Blue Orange/White-Orange | |
Green/White-Green Brown/White/Brown | ||
Unaged Elongation | Min. 300% | |
Unaged Tensile Strength | Min. 1.683 Kgf/mm2 | |
Jacket
| Material | FRPVC, Low-Smoke |
Thickness | Nominal: 0.55 mm | |
Diameter | Nominal: 5.4±0.2 mm | |
Color
| Assorted upon request | |
Unaged Elongation | Min. 125% | |
Unaged Tensile Strength | Min. 0.917 Kgf/mm2 | |
Aging @ 100°C for 168Hrs | Min. elongation retention:75% | |
Min. tensile strength retention: 70% | ||
Printing (custom marking is available) | CAT5E UTP 4PR 24AWG 350Mhz PLENUM CABLE VERIFIED TO ETL TIA/EIA-568B.2-1 FT (Sequential Foot Mark) | |
Electrical Characteristics:
Impendance: | 100ohm±15% |
Max. Resistance Unbalance: | 3%(5% for TIA/EIA) |
Min. Propagation Velocity: | 0.65C |
Max. Mutual Capacitance: | 5.6nF/100m |
Max. Capacitance Unbalance: | 3400/3300 pF/Km (ISO/IEC, TIA/EIA) |
Max. D.C Resistance | 9.38ohm/100m(24AWG) |
Max. D.C Loop Resistance: | 19.2ohm/100m |
Min. D.C Insulation Resistance: | 150Mohm/100Km |
Max. Propagation Delay Skew: | 30 ns/100m |
