Grey Color 305M 4 pairs UTP Lan Cable
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | etale | |
| Model Number | 0156 | Type | Coaxial | |
| Application | Multimedia | Color | Grey | |
| Packing | Slide Card Blister | Outer Diameter | 5.6-9.0mm | |
| Connector Color | Other | Connector Type | Other, Network cable | |
| Shielding | Combination | Gender | Male-Male |
Product Description

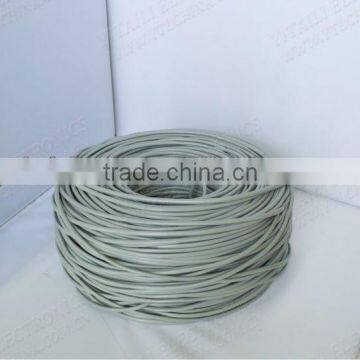

305M Tinned Copper Cat6 UTP Lan Cable
1)Specification: 4P+F
2) Rated Temperature: 60 or 75
3)Unshielded twisted pairs:
4)Conductor: 0.56MM Copper ,pass fluke test
5)Insulation: HD-PE/PE
6)Filler: PE Cross or FM-PE Thin slice
7)Unrip rope: optional
8)Jacket: PVC or LSNH PVC etc
9)Impedance:100±15%Ωat 1~250MHz
10)Reference standard: YD/T1019-2001ISO/IEC11801ANSI/TIA/EIA-568BUL 444
11)Print Legend: CM or CMR
Electrical Test
Conductor resistance at 20 ° C 9.38 Om/100 m
DC Resistance Unbalance 5%
Capacitive unbalance pair to ground 330 pF/100m
Impedance 0.772-100 MHz 85-115 Ohm
Maximum working capacity of 5.6 nF / m
Features
1.UTP (Unshielded Twisted Pair)
2.Cable conductor: TC, BC, CCA, CCS
3.Wire diameter: 0.48, 0.5, 0.51, 0.56 and 0.57mm
4.Jacket: PVC and LSZH (RoHS-approved)
5.Jacket colors: Black, D-gray, blue, green, white, yellow and orange
6.Length: 305, 200, 100m (customize)
7.OEM orders are welcome
