Home > Products > NETWORK CABLE > Cat6 PE Insulation UTP / FTP Cat5e Data cable

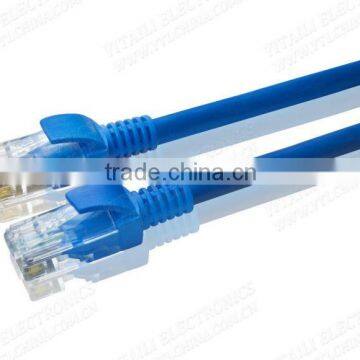

Cat6 PE Insulation UTP / FTP Cat5e Data cable
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | etale | |
| Model Number | 0146 | Type | Twisted Pair | |
| Application | Other, Computer, PC, printer, scanner etc. | Color | Blue, Other, Blue,white,red, green,yellow,purple,black. | |
| Packing | Other, PE bag, blister package,waterproof bag,carton. | Outer Diameter | 5.6-9.0mm | |
| Connector Color | Gold | Connector Type | Other, network cable | |
| Shielding | Combination | Gender | Male-Male |
Product Description
Key Specifications/Special Features
Name: 4-pair UTP Cat5e cable This kind of cable use bare copper to be the center conduction with the specification 24AWG and PE to be the dielectric The jacket is made of fireproof material, which is so meaningful to the Cat5e communication This Cat.5e UTP cable is conform to the ISO/IEC, TIA/EIA, and EN standards and the electrical characteristics are exceed the latest Cat5e standards LSZH (low smoke zero halogen), which is the symbol of environmental protection
Electrical characteristics
Impedance: 100 ± 15Ω
Static electric capacity: 17.1nf/kF (maximum)
Resistance: 28.6/kF (maximum)
Unbalance resistance: 5% (maximum)
Unbalance capacity: 330pF/100m (maximum)
Communicate rate: 65%
Physical characteristics: Applications: 10/100/1000Mbps Ethernet, 100VG-Any LAN, token ring, and ATM155/ATM622
Copper diameter: 24AWG
Outer diameter: 5.0mm
Weight: 10.5kg/ft
Minimum bend radius: OD x 4 to 6
Maximum pulling tension: 10.0
Jacket material: PVS/LSZH
Rated temperature: -20 to 60°C
Standard: ROHS, CE, FCC compliance
