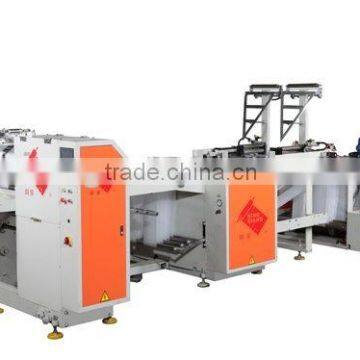

HIGH SPEED FULLY AUTOMATIC BOTTOM SEALING MACHINE FOR BAG ON ROLL WITHOUT CORE
- 5 Set / Sets per Month
- shanghai
- T/T
You May Like
-
Servo motor driven perforating bag on roll Making Machine
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making Machine
-
Servo motor driven perforating bag on roll Making Machine
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making Machine
-
NEW!!Servo Motor Driven Side Sealing Bag Making Machine
-
New! Servo Motor Driven Side Sealing Zipper Bag Making Machine
Product Details
| Machine Type | Sealing Machine | Bag Type | Garbage Bag | |
| Material | Plastic | Computerized | Yes | |
| Place of Origin | Shanghai, China | Brand Name | SINGSIANG | |
| Model Number | AJ600BR |
Product Description
Specifications
NEW Spanish rotating drum systemUp to 500 bags/min,easy handel & low maintenence
For star-seal bag on roll, table cloth roll
NEW Spanish rotating drum system
Up to 500 bags/min,easy handel & low maintenence
For star-seal bag on roll, table cloth roll
Full automatic rewind!!
Competitive price!!
Continuous bag making machine for bags on roll without core with one or 1 or 2 tracks of the production of bags, from small formats for frozen food to large bags for refuse collection, as well as the table cloth roll.
The design as rotating drum system with continuous movement to guarantee maximum reliability and minimum maintenance.
The sealing drum makes possible to work at low temperatures thanks to the long sealing time and offers excellent adaptability to different types of materials with maximum sealing guarantee.
Rewinders with superior characteristics and completely independent design in double track versions, allowing the production of rolls with different units on each one.
Output up to 500 bags per minutes!
TECHNICAL DATA | ||
MODEL | AJ600BR | AJ700BR |
SEALING WIDTH | 700mm*1line 320mm*2lines | 900mm*1line 420mm*2lines |
ROLL WIDTH | 600mm*1line 280mm*2lines | 700mm*1line 320mm*2lines |
FORMAT LENGTH 4 sealing station 2 sealing station 1 sealing station |
285MM-470MM 470MM-930MM 930MM-1790MM |
285MM-470MM 470MM-930MM 930MM-1790MM |
SPEED | 70RPM | 70RPM |
MAX BAGS/MIN. 4/2/1 SEALING STATION |
250*2/130*2/65*2 |
250*2/130*2/65*2 |
ROLL CHANGE SPEED | 6-8 Rolls/m | 6-8 Rolls/m |
Roll Diameter. | 150MM | 150MM |
POWER | 6KW | 6KW |
AIR CONSUMPTION | 140ni/min | 140ni/min |
MACHINE SIZE | L6300mm*W2600mm*H1890mm | L6300mm*W2800mm*H1890mm |
WEIGHT | 2800KG | 3000KG |
n Linear speed depends on the thickness, the kind of material and the size of bag. n Features can be modified without previous notice. | ||
OPTIONAL DEVICE:
- V Fold with web-guide system *2 set
- 4 sealing station
