6MMX1220X2440 Phenolic Film Faced Plywood
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
20MMX1220X2440 Phenolic Film Faced Plywood
-
12MMX1220X2440 Phenolic Film Faced Plywood
-
Diameter:300mm-1600mm, Brown Film Plywood Formwork for Round Concrete Column From Linyi City Shandong Province
-
15/18/22MM Brown Film Plywood Formwork for Round Concrete Column From Linyi City Shandong Province
-
20mm Brown Film Plywood Formwork for Round Concrete Column From Linyi City Shandong Province
-
3MMX1220X2440 White Polyester Plywood
Product Details
| Place of Origin | Shandong, China | Brand Name | JIANGQUAN | |
| Model Number | 1220X2440 | Usage | Outdoor | |
| Grade | First-Class | Main Material | Poplar | |
| Formaldehyde Emission Standards | E2 | Plywood Type | 13-Ply Boards |
Product Description

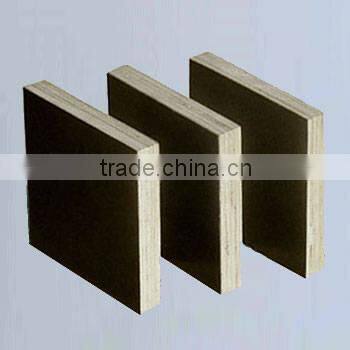

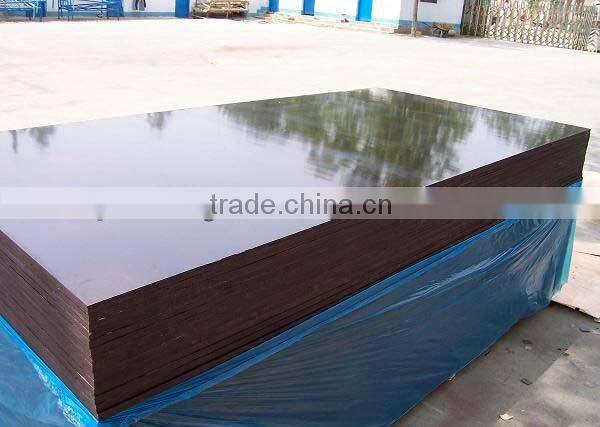

Film Faced Plywood
Products details
Commodity | High quality | Film faced plywood (contruction plywood) | ||
Spec. | Size | 1220*2440mm&1250*2500mm or as your demand | ||
| Thicknes | 12mm-25mm |
| |
| Glue | MR/WBP/Melamine glue | ||
| Film | Black film ,brown film, Red film |
| |
| Core | Poplar,hardwood,birch,combi core etc | ||
| Moisture | 8%-13% | ||
| Thickness Tolerance | 12-25mm | (+/-)0.4mm to 0.5mm | |
Packing | Inner packing | 0.2mm plastice bag | ||
| Outer Packing | Steel strip or PVC for strength,plywood sheet or Carton covering | ||
Quantity | 20’GP 8pallets | 12MM:720pcs | ||
| 15MM:600pcs | |||
| 18MM:400pcs | |||
40’GP 16pallets | 12MM:1440pcs | |||
15MM:1200pcs | ||||
18MM:800pcs | ||||
40’HQ 18pallets | 12MM:1620pcs | |||
15MM:1296pcs | ||||
18MM:1080pcs | ||||
Usage | Usage adequate for constuction,cement form work | |||
MOQ | 1*20GP | |||
Payment | T/T or L/C at sight | |||
Delivery Time |
Within 10-15 days after receiiving deposit or original L/C at sight | |||
Certificate | ISO9001 | |||
Technic details
No | Property | Unit | Test Standard | Value of Test | Result | |
1 | Moisture content | % | EN322 | 8-12 | Check out | |
2 | Density | Kg/m3 | EN322 | 560 | Check out | |
3 | Bonding quality | Bonding quality | Mpa | EN314 | Max:1.72 Min:0.85 | Check out |
Damage rate | % | GB/T17656-1999 | 60% | |||
4 | Bending modules of elasticity | Longitudinal | Mpa
Map |
EN310 | 6800 | Check out |
Lateral | 5920 | |||||
5 | Bending strength (N/mm) | Longitudinal | 65 | Check out | ||
Lateral | 50 | |||||
6 | Cycle Life | About 15-20 times repeated using times according projects by formwork application. | ||||
Round column Formwork
Usage:
For forming of round/circular concrete columns
Descriptions:
1.made of two semi-circle film-faced plywood
2.plywood edges have slots,so two half-circle plywood can join seamlessly
3.fixing:one piece of steel belt with screw every 300mm(steel belt width 32mm,thickness1.2mm,screw diameter :12mm)
Specifications:
1.Wood :poplar/birch/hardwood
2.FILM: 240g/M2,120G/M2,80G/M2.
3.FILM Color: Red Film,brown film,black film
4.thickness:15MM/18MM/22MM
5.Glue: Phenolice glue,Melamine glue
6.Length:Max3000mm per piece,two and more pieces can join for different heights.
7.diameter:300-1600mm,such as 300/400/500/600/700/750/822/900/1200/1400/1600MM.ect
8.certificate:ISO 9002 ,FAS.SGS.
Features:
1.light in weight,easier and faster for assemble and stripping
2.good stability in diameter
3.can be cut easily to meet your needs
4.economic on cost
5.can be repeated about 8-10 times
6.smooth surface finishing
Hign quality and in time delivery ,welcome you come and have cooperation with me
