Plywood Production Line
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Hot Press Machine | |
| Place of Origin | Shandong, China | Brand Name | Linyi Shining Asia | |
| Model Number | all kinds | Voltage | 380V | |
| Power(W) | 4.5KW | Dimension(L*W*H) | 3900*1700*2150 | |
| Weight | 9000kg | Certification | ISO9002 | |
| Warranty | 3years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Linyi Shining Asia Industry, Plywood production line, make the world best plywoodLinyi Shining Asia Plywood production machine

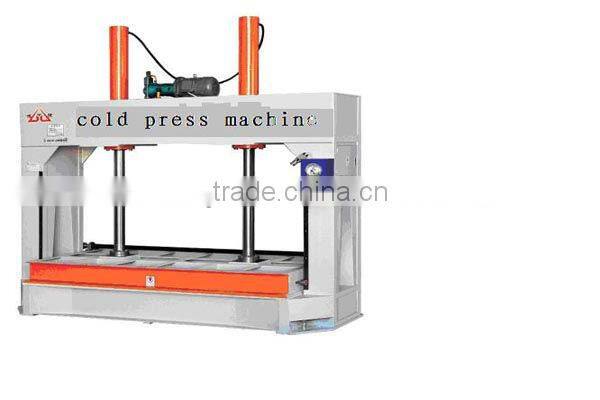

Hydraulic cold press
1.
Model | MYJ50T |
Max pressure | 50T |
Dimension of the platen | 1250×2500mm |
Working speed | 180mm |
Total power | 3KW |
Overall dimensions | 2860×1300×3400mm |
Net weight | 2800kg |
Stroke | 1000mm |
FOB | USD6000.00 |
Note: The height of the machine when the cylinder is down is 2350mm

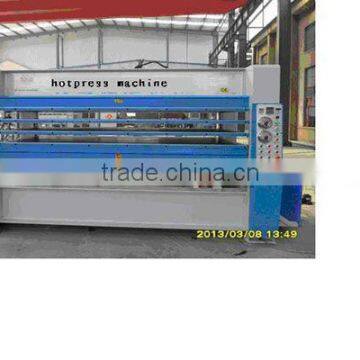

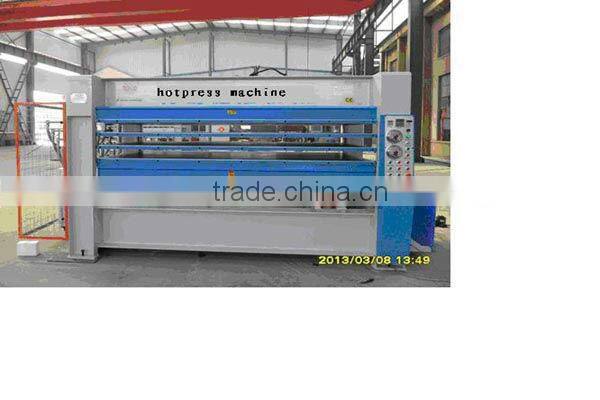

2. Hot press
Model | BY214×8/12(3)H |
Size | 4×8 |
Dimension of hot platen | 1300×2500Mm |
Normal pressure | 120T |
Number of layers | 3 |
Feed motor power | 4.5kw |
Heating power | 37.5kw |
Numbers of cylinders | 6 |
Diameter of cylinders | 100mm |
Overall dimensions | 3900×1700×2150mm |
Weight | 9T |
Price (RMB)ex-factory | USD16000.00
|

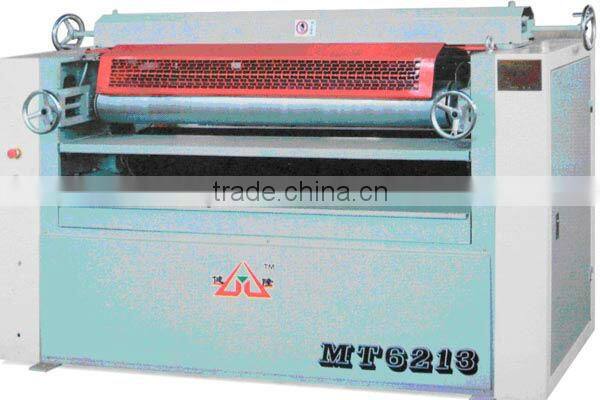

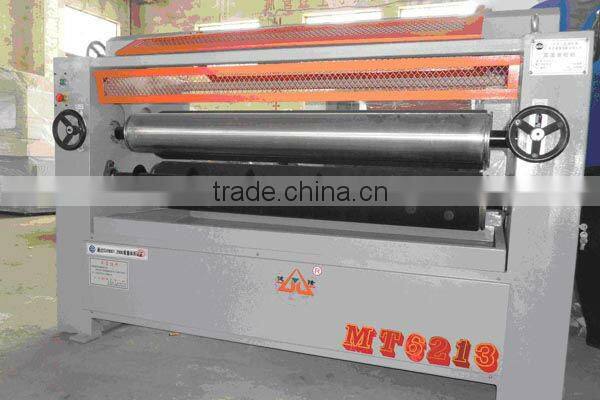

- Glue spreader
Model | MT6106 | MT6206 | MT6113 | MT6213 |
Max glue spreading (mm) | 600 | 600 | 1300 | 1300 |
Max working thickness9) | 60 | 60 | 60 | 60 |
Rubber roller diameter(mm) | 200 | 200 | 200 | 200 |
Glue spreading speed(m/min) | 24 | 24 | 23 | 23 |
Motor power | 1.5 | 1.5 | 2.2 | 2.2 |
Overall dimensions(mm) | 1150*800*1300 | 1150*970*1300 | 2100*900*1300 | 2100*1000*1300 |
Net weight (kg) | 400 | 450 | 600 | 700 |
Price (RMB)ex-factory | USD1700.00 | USD2000.00 | USD2500.00 | USD3000.00 |

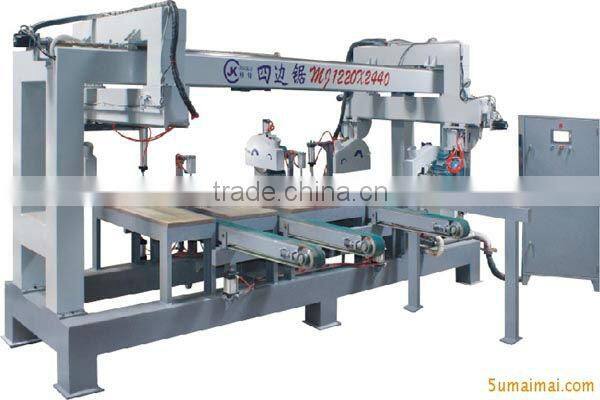

4. Nc saw MJ1220X2440 edges
machine installation dimensions length 4500 mm x 3000 mm x 2300 mm wide;

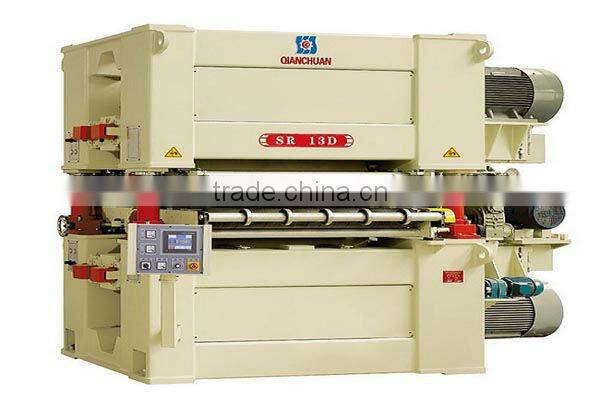

5.sander
Technical features
| SR3A13 | SR2A13 | BSR13 |
Working width | 40-1300mm | 40-1300mm | 40-1300mm |
Working thickness | 2.5-110mm | 2.5-110mm | 2.5-110mm |
Working length | ≥750mm | ≥750mm | ≥750mm |
No.1 abrasive belt speed | 20m/s | 20m/s | 20m/s |
No.2 abrasive belt speed | 20m/s | 17m/s |
|
No.3 abrasive belt speed | 14m/s |
|
|
Feed speed | 13-100m/min | 13-100m/min | 13-100m/min |
Size of abrasive belt(WxP) | 1330x2615mm | 1330x2615mm | 1330x2615mm |
Total motor power | 106kw | 76kw | 46.35kw |
Main motor | 37kw,30kw,30kw | 37kw,30kw | 37kw |
Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
Consumption of compressed air | 0.1m3/min | 0.1m3/min | 0.1m3/min |
Volume of sucked air | 12000m3/h | 10000m3/h | 8000m3/h |
Speed of sucked air | 25-30m/s | 25-30m/s | 25-30m/s |
Overall dimension{LxWxH) | 3140x2770x2440mm | 2630x2780x2530mm | 2870x1900x2450mm |
Net weight | 11000kg | 9000kg | 5500kg |
