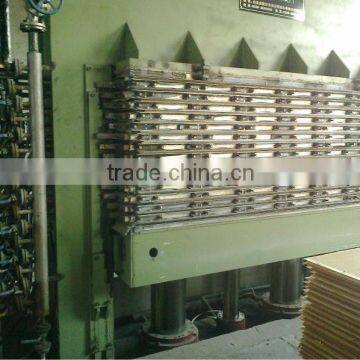

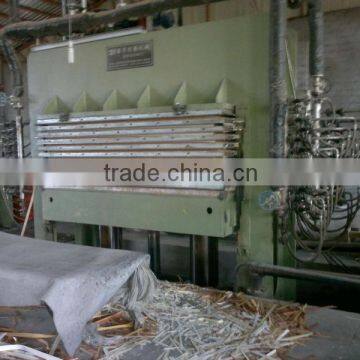

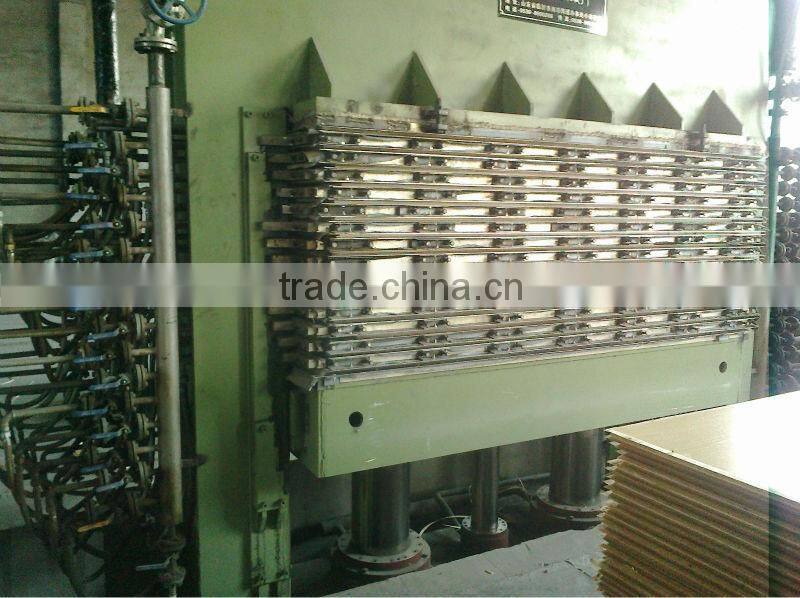

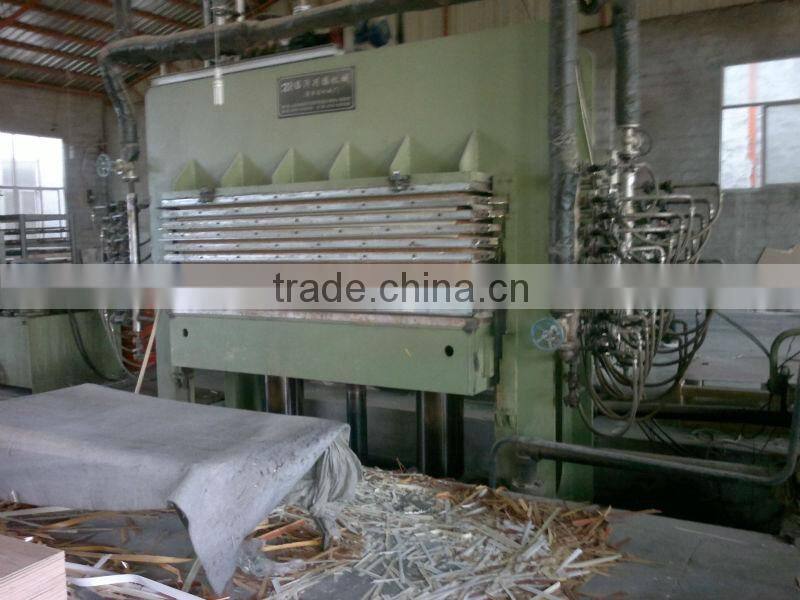

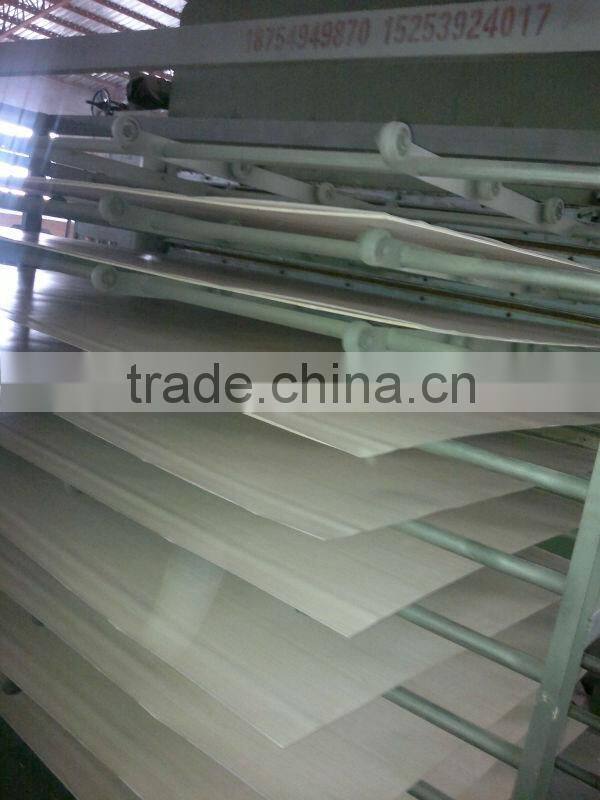

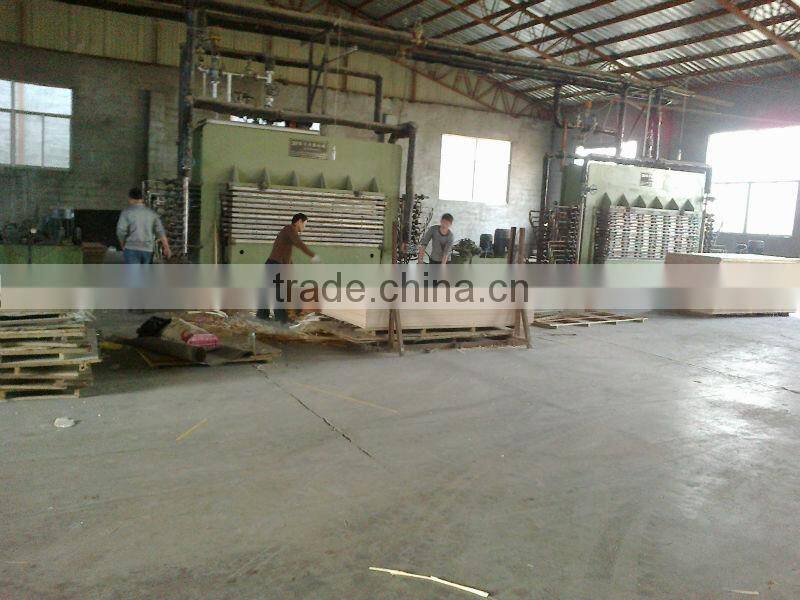

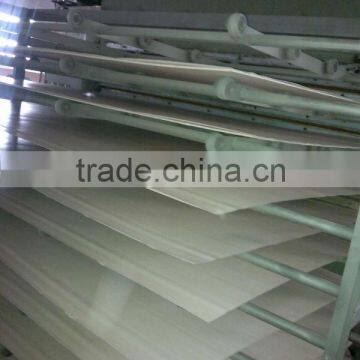

Plywood Production Machine

The main technical parameters ofMelamine veneer press

One

The forerunner to start closing time is short:

1, the Nominal pressure: 800 ton

2, Frame steel plate thickness: 40 mm

3, layer spacing: 90 mm

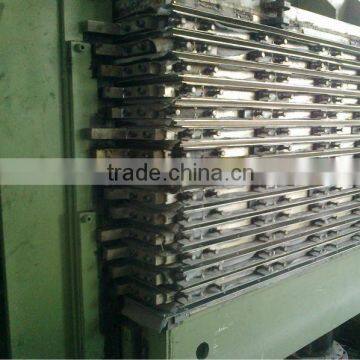

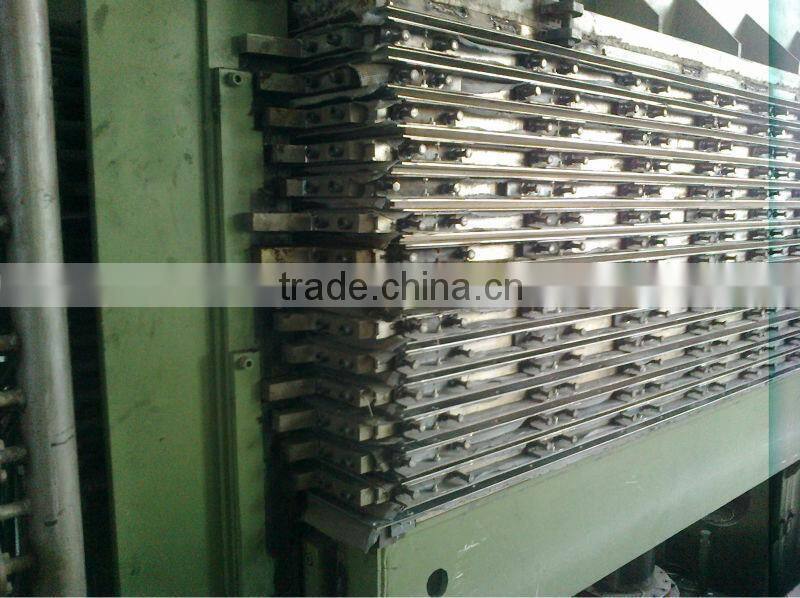

4 hot platen size: 2700 * 1370 * 52 mm (double in double out small, uniform heat transfer, surface temperature difference)

5, layer number: 8, 9, 10

6, the main oil cylinder specification and quantity: φ260 6pieces

Cast steel (wuxi, cylinder, piston alloy condensation solid core, never strain)

7, hydraulic system: avoid pollution standard

1) HQB280 pump 1, 160-1 vane pump

(2) solenoid valve with Shanghai lixin

(3) 22 kw - 4 motor 1, 11 kw motor 1-4

8, control system, PLC automatic control computer program

9, PLC brands: Japan omron

10 and other electrical components: the French schneider

11, the entire closure speed: 7 s

12, the installed capacity: 33 kw

Two ,

 600 tons of melamine veneer press

1, equipment frame structure: fixed two combinations

2, frame steel plate thickness: 30 mm

3, layer spacing: 90 mm

4, hot platen size: 2700 * 1370 * 52 mm

5, hot platen oil: double in double out, uniform heat transfer, surface temperature difference is small

6, layer number: 8, 9, 10

7, the main oil cylinder: (1) model fromφ280

(2) cylinder origin: wuxi production

(3) oil cylinder material: cast steel cylinder body, piston alloy condensation solid core, never strain

(4) cylinder quantity: 4

(5) cylinder rated pressure: 26 mpa

8, fast oil cylinder: (1) modelsφphi 200 x 800 mm

(2) cylinder origin: wuxi production

(3) oil cylinder material: cast steel cylinder body, piston alloy condensation solid core, never strain

(4) number of oil cylinder: 1 only

(5) cylinder rated pressure: 26 mpa

9, hydraulic system: avoid pollution standard hydraulic station

(1) hydraulic valve piece origin: Shanghai hydraulic parts factory

(2) quick pump type: HQB160

3. Origin: rapid pump, hydraulic co., LTD., jinan

(4) fast pump number: 1

(5) pump models: 25 MCY - 14-1 b

6 pump origin: jiangsu qidong ShenLi high pressure oil pump factory

The number of all landowners pump: 1

12, full closure speed: 9 s

13, motor

(1) rapid pump motor models: 22 kw - 4

(2) quick pump motor number: 1

(3) pump motor models: 7.5 KW

(4) number of pump motor: 1

(5) motor origin: shandong HuaLi motor group co., LTD

14, the control system

(1) control mode: PLC automatic control computer program

(2) PLC brands: Japan omron

(3) other electrical components: the French schneider

15, with a total installed capacity: 29.5 KW

Unit 16, total weight: 37.6 tons

Three,

1. Nominal pressure (ton), 500 (11 pressure10), 650 (13 pressure 12)

2. Hot platen size and quantity

2700 mm * 1370 mm * 42 mm to 11 (10) 11 pressure

13 block 52 mm * 1370 mm * 2700 mm (13 pressure 12)

3. The layer spacing

70 mm

The layer number of 4.

10 and 12 layer

5. Oil cylinder piston diameter and quantity

Φ 360 mm (2, 11 pressure 10)

Φ 400 mm (2, 13 pressure 12)

6. Oil cylinder range:

900 mm (10) 11 pressure

800 mm (13 pressure 12)

7. Closed all the time:

9 seconds to 12 seconds

8. Oil pressure rating

25 mpa

9. Motor models:

11 kw Y160M - 4 (1)

11 kw Y160L - 6 (1)

The control mode:

The automatic control

11. Installation dimensions

3400 mm * 1370 mm * 1370 mm (10) 11 pressure

3400 mm * 1370 mm * 4150 mm (13 pressure 12)

The total weight of 12.

About 18 30 t t -
